Cabin Temperature Sensor / Switch: Testing and Inspection
IN-VEHICLE SENSOR (AUTO A/C MODEL)INSPECTIONUNIT INSPECTIONPreparation tool: Circuit tester 1.

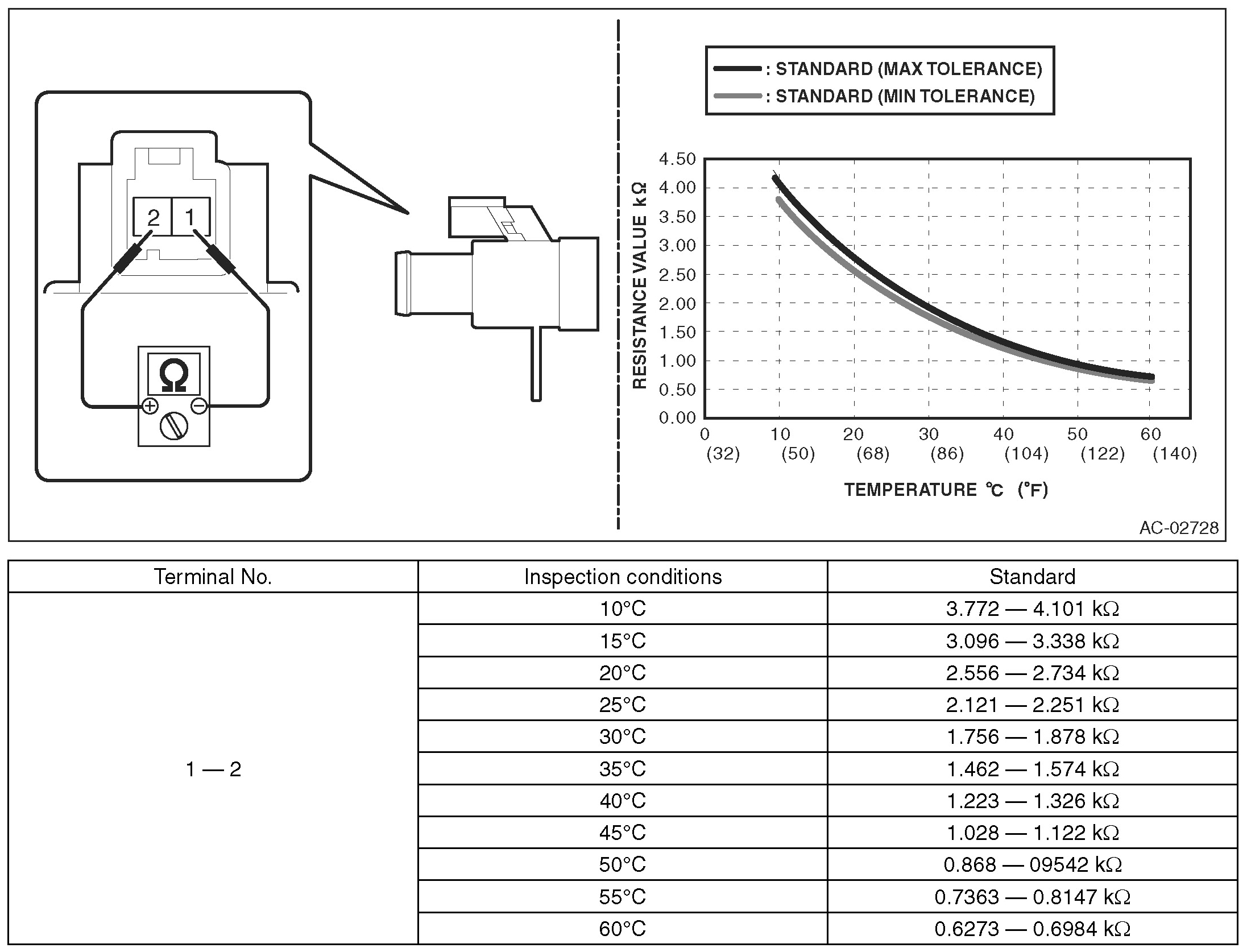

Check the resistance between in-vehicle sensor terminals.
CAUTION: During inspection, be careful not to touch the sensor end in order to avoid misjudgment due to body temperature. 2.
Replace the in-vehicle sensor if the inspection result is not within the standard value.
