Brake Lamp: Testing and Inspection

STOP LIGHT SYSTEM

INSPECTION

1. STOP LIGHT SWITCH

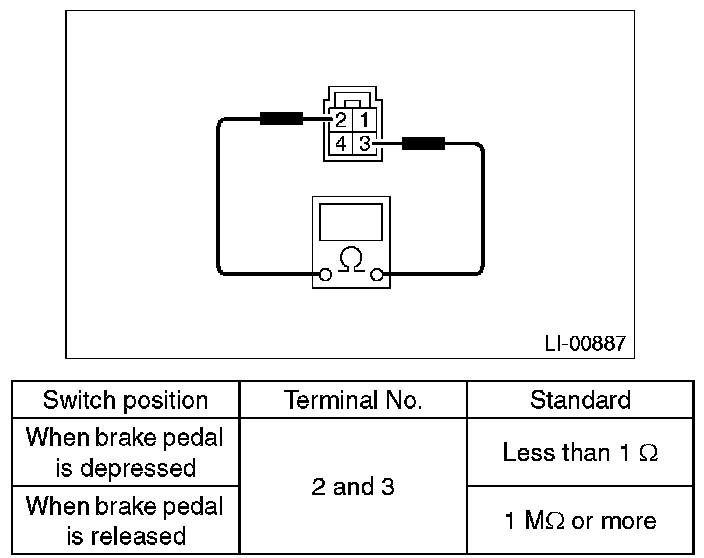

1. Measure the resistance between stop light switch terminals.






2. Replace the stop light switch if the inspection result is not within the standard value.

2. REFERENCE
For operation procedures of each component of the stop light system, refer to the respective system.
- Rear combination light assembly: Rear Combination Light Assembly
- Tail light/stop light bulb: Tail/Stop Light Bulb
- High-mounted stop light: Testing and Inspection
