Daytime Running Lamp: Testing and Inspection

DAY TIME RUNNING LIGHT SYSTEM

INSPECTION

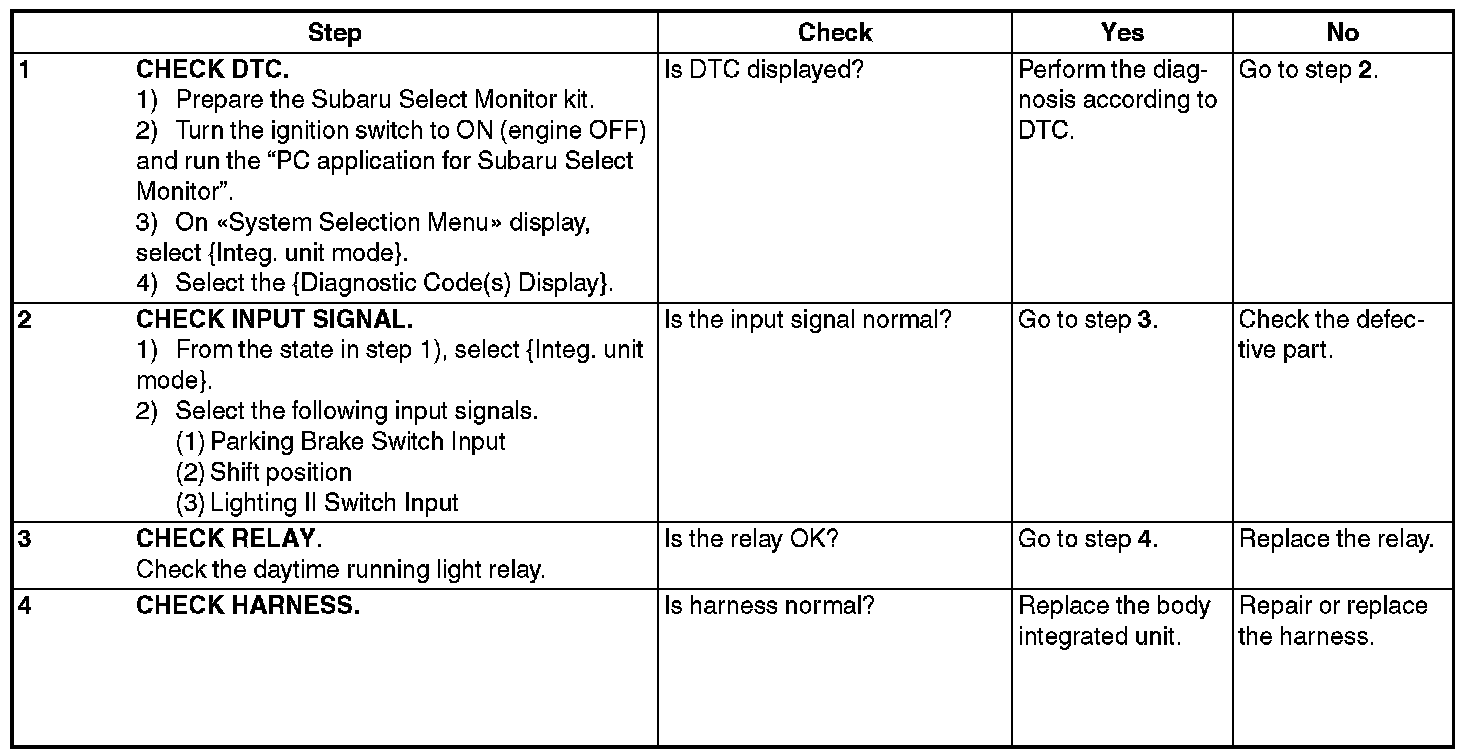

1. DAYTIME RUNNING LIGHT MODULE CHECK

2. DAYTIME RUNNING LIGHT RELAY
1. Check the resistance between the daytime running relay terminals when connecting terminal No. 3 to the battery positive terminal and terminal No. 5 to the battery ground terminal.

2. Replace the daytime running light relay if the inspection result is not within the standard value.
