Room Light System
ROOM LIGHT SYSTEMINSPECTION
1. DOOR SWITCH

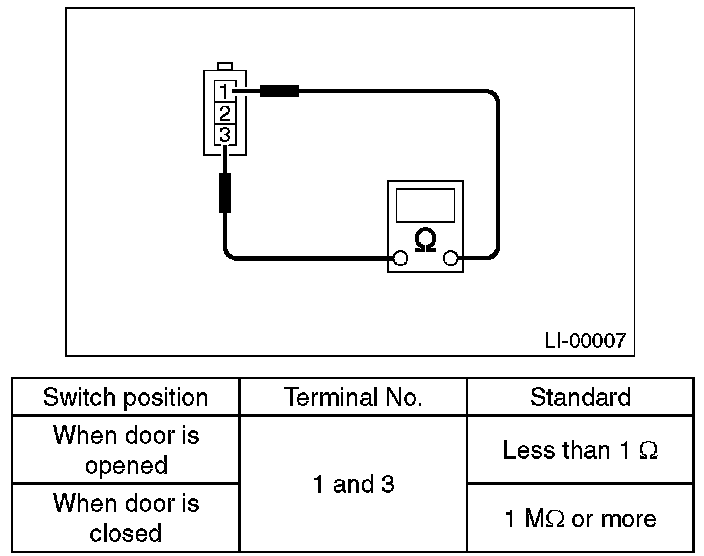

1. Measure the resistance between door switch terminals.
2. Replace the door switch if the inspection result is not within the standard value.
2. REAR GATE LATCH SWITCH

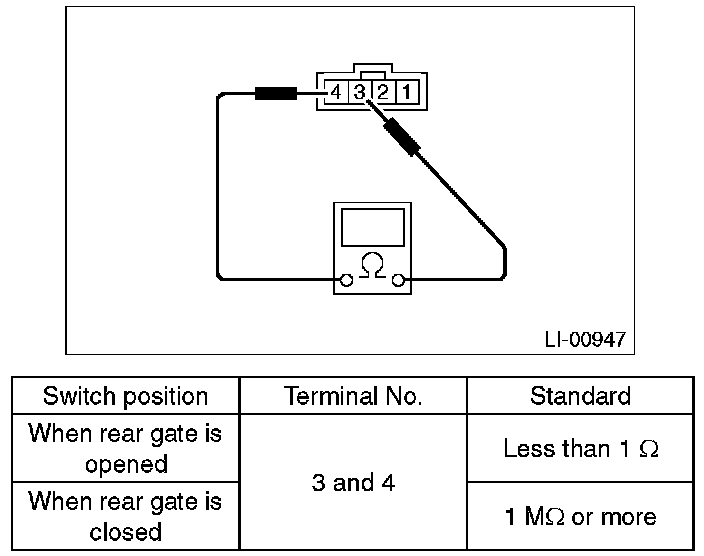

1. Measure the resistance between rear gate latch switch terminals.
2. If the inspection result is not within the standard value, replace the rear gate latch and actuator assembly.
3. REFERENCE
For operation procedures of each component of the room light system, refer to the respective system.
- Spot map light: Testing and Inspection
- Room light: Room Light
- Luggage room light: Testing and Inspection
- Door step light: Testing and Inspection
- Door switch: Testing and Inspection
- Ignition switch illumination: Testing and Inspection
