Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LIGHT BULB

REMOVAL
1. Disconnect the ground cable from battery.

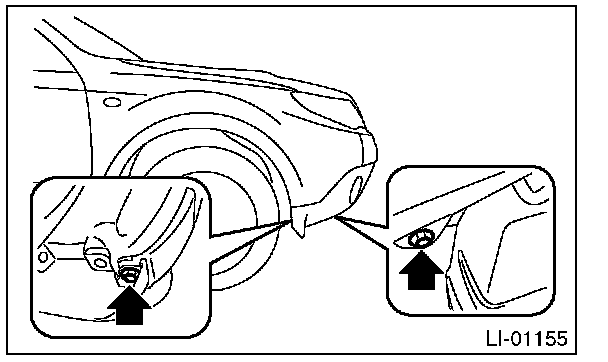

2. Remove the clips and turn over the mud guard.






3. Disconnect the bulb connector.

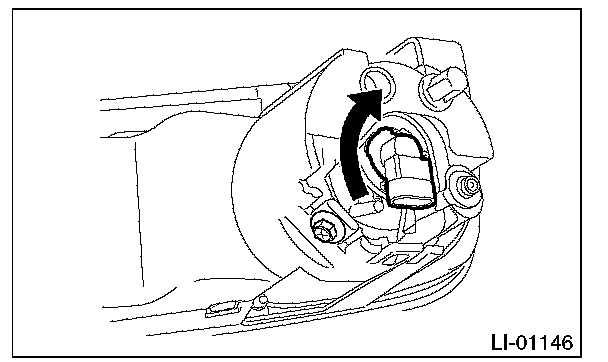

4. Rotate the bulb then detach the fog light bulb.






INSTALLATION

CAUTION:
- Align the bulb tabs with the fog light securely, push the bulb fully, and then rotate it.
- After connecting the connector, make sure that the bulb is locked securely.

Install each part in the reverse order of removal.
