Fog/Driving Lamp: Service and Repair

FRONT FOG LIGHT ASSEMBLY

REMOVAL
1. Disconnect the ground cable from battery.

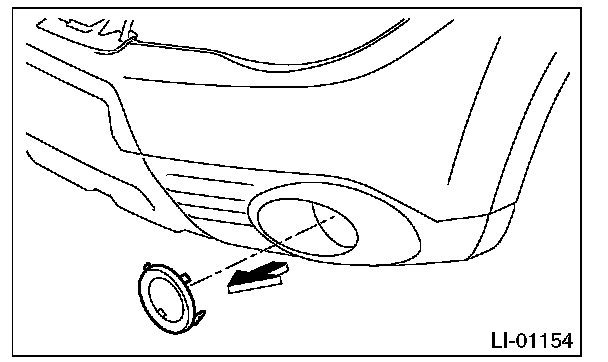

2. Remove the fog light cover.

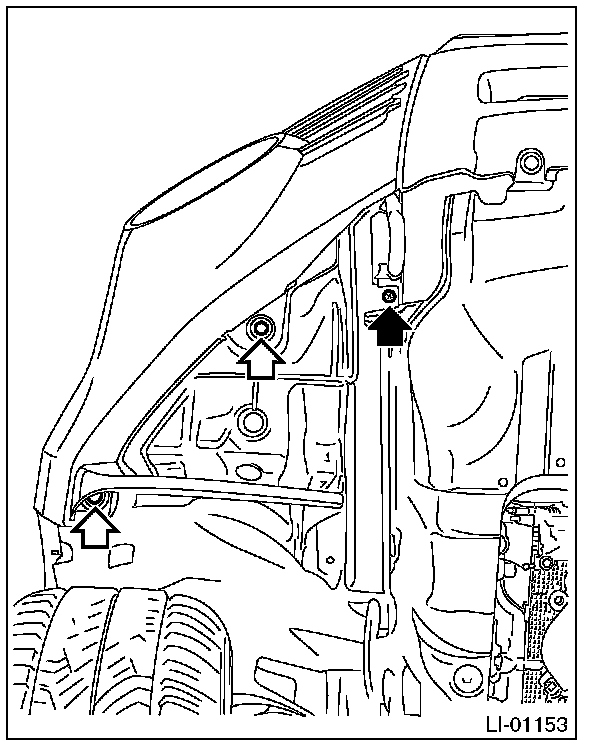

3. Remove the screw and clips, and turn over the mud guard.

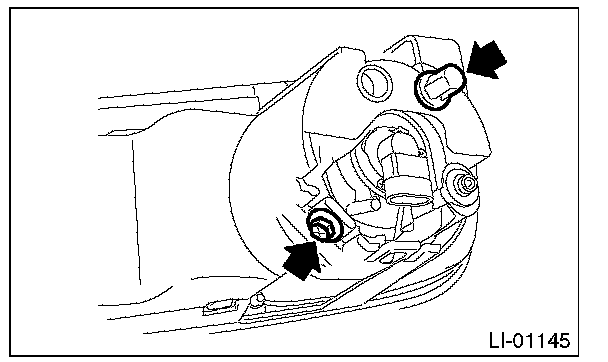

4. Disconnect the bulb connector.
5. Remove the plastic nut and bolt, and then detach the fog light assembly.






NOTE: Remove the bracket as required.






INSTALLATION

CAUTION: After connecting the connector, make sure that the bulb is locked securely.

1. Install each part in the reverse order of removal.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

2. Adjust the fog light beam. Adjustments
