Rear Combination Light Assembly
REAR COMBINATION LIGHT ASSEMBLY
REMOVAL 1.
Disconnect the ground cable from battery.
2.

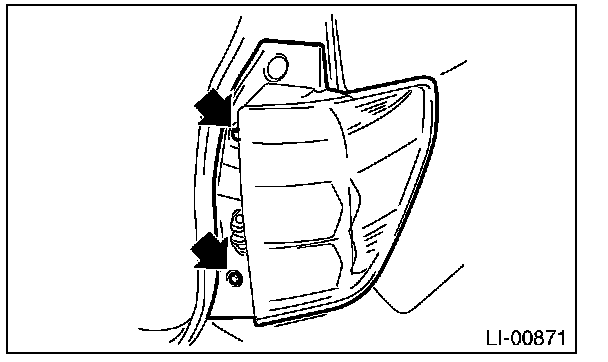

Remove the bolts, and then detach the rear combination light by pulling it to the rear side of vehicle.
3.
Disconnect the harness connector and remove the rear combination light.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
