Trunk Lamp: Service and Repair

LUGGAGE ROOM LIGHT

REMOVAL
1. Disconnect the ground cable from battery.

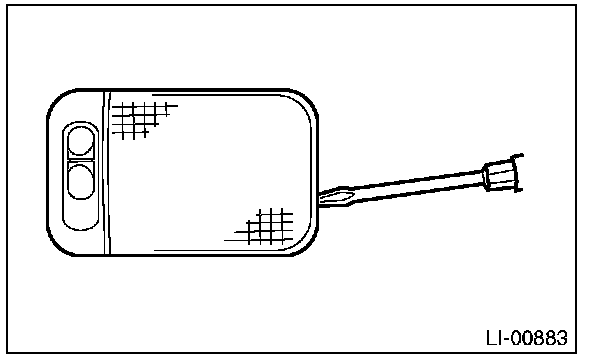

2. Insert a flat tip screwdriver into the edge of the luggage room light body to remove the luggage room light.

3. Disconnect the harness connector and remove the luggage room light.
4. Insert a flat tip screwdriver to remove the luggage room light.

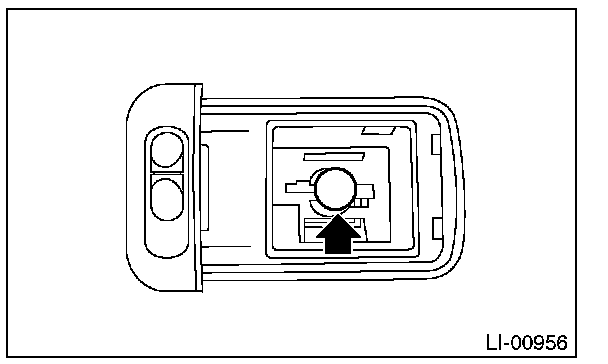

5. Remove the bulb.

INSTALLATION
Install each part in the reverse order of removal.
