Combination Switch (Light)
COMBINATION SWITCH (LIGHT)INSPECTION 1.
Disconnect the
combination switch connector.
2.

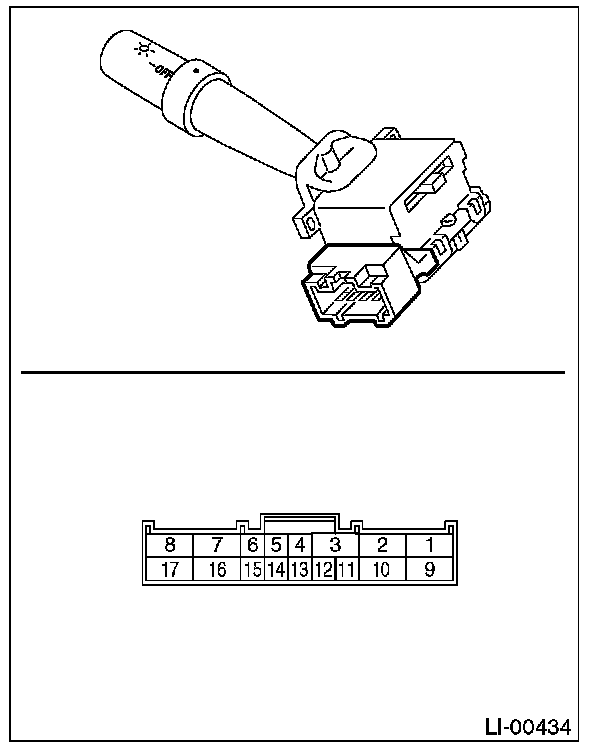

Check the resistance between
combination switch terminals.
3.
Replace the
combination switch (light) if the inspection result of each switch is not within the standard value.

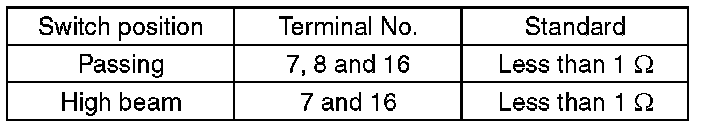

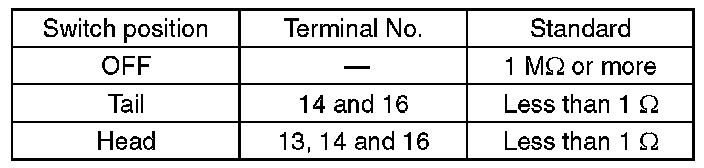

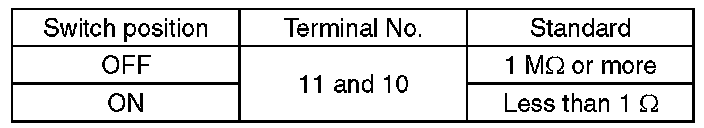

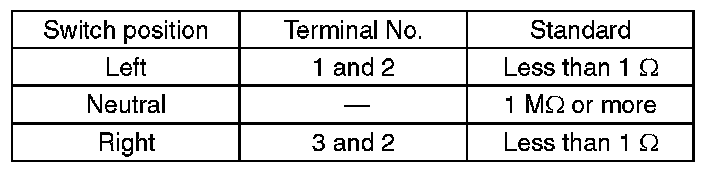

1. LIGHTING SWITCH 2. DIMMER & PASSING SWITCH 3. TURN SIGNAL SWITCH 4. FRONT FOG LIGHT SWITCH
