Fuel Level Sensor

FUEL LEVEL SENSOR

REMOVAL

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:
- Be careful not to spill fuel.
- If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.

NOTE: The fuel level sensor is built in fuel pump assembly.

1. Remove the fuel pump assembly.

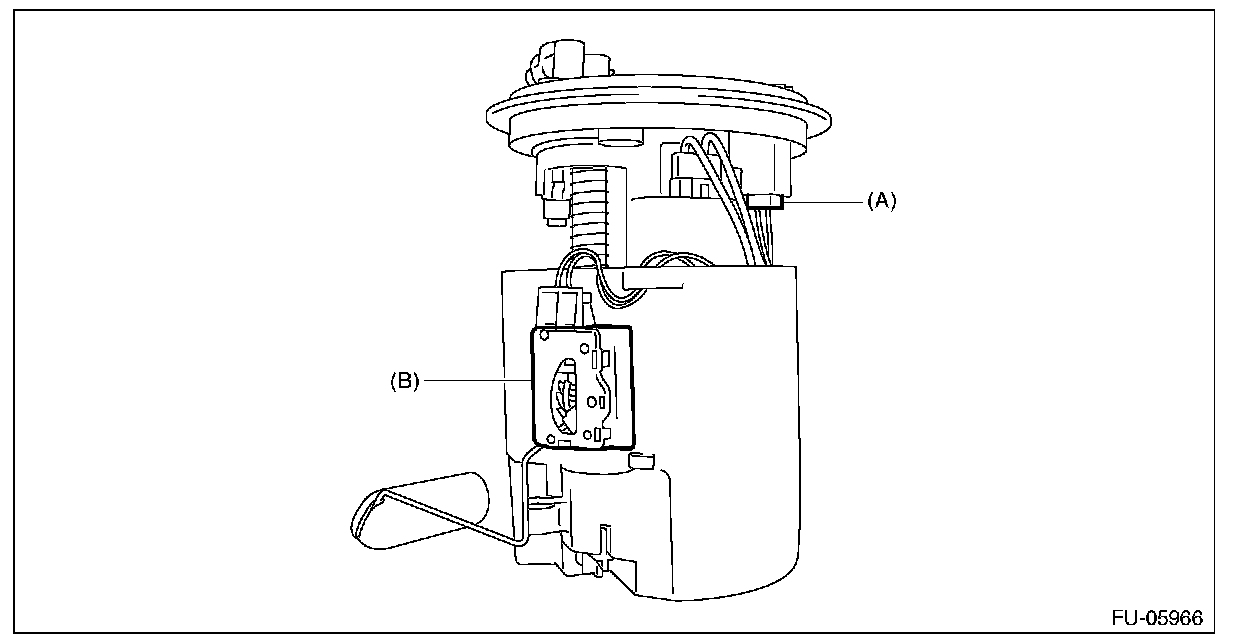

2. Disconnect the connector (A) from fuel level sensor.
3. Remove the fuel level sensor (B).






INSTALLATION

Install in the reverse order of removal.
