Variable Valve Timing Solenoid: Testing and Inspection
OIL CONTROL SOLENOIDINSPECTION 1.
Check that the intake oil control solenoid has no deformation, cracks or other damages.
2.

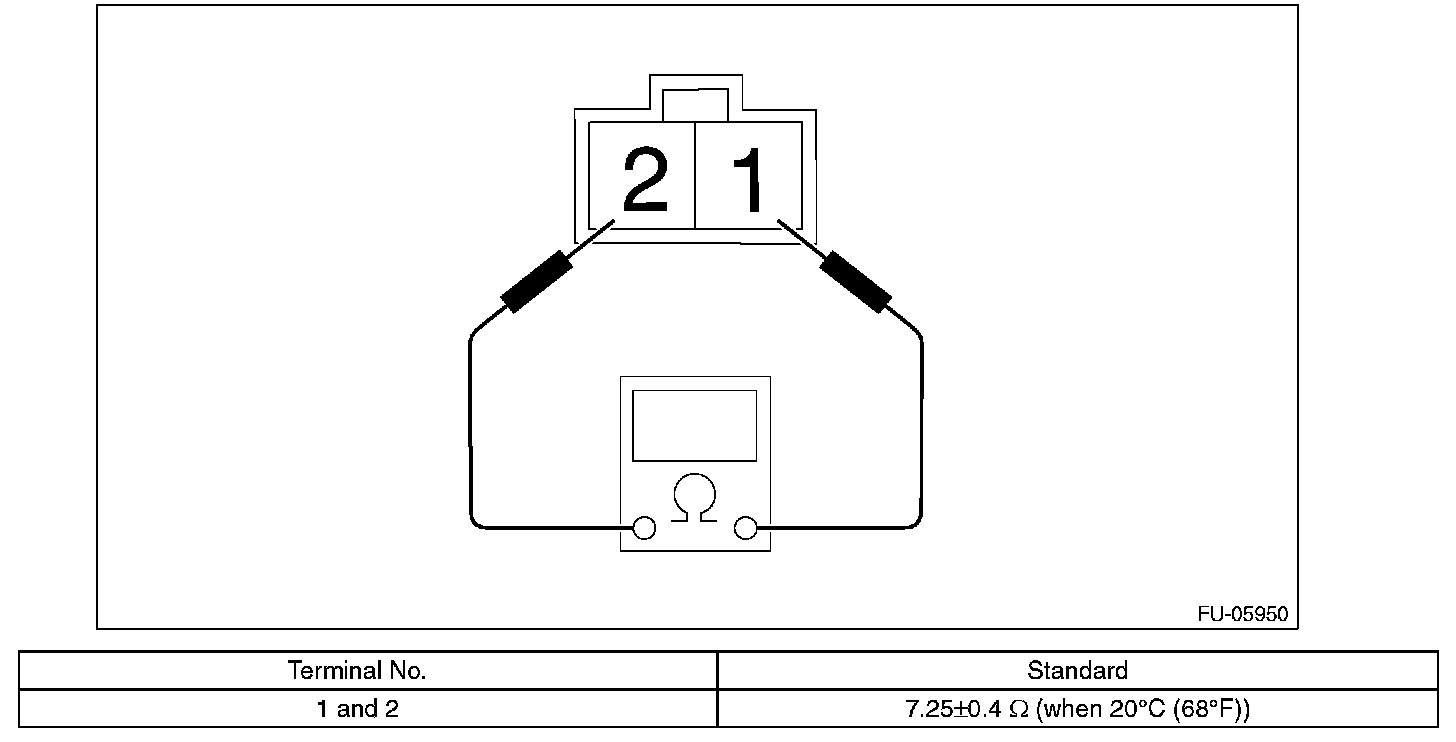

Measure the resistance between the intake oil control solenoid terminals.
