Overhaul

LEAK CHECK VALVE ASSEMBLY

DISASSEMBLY

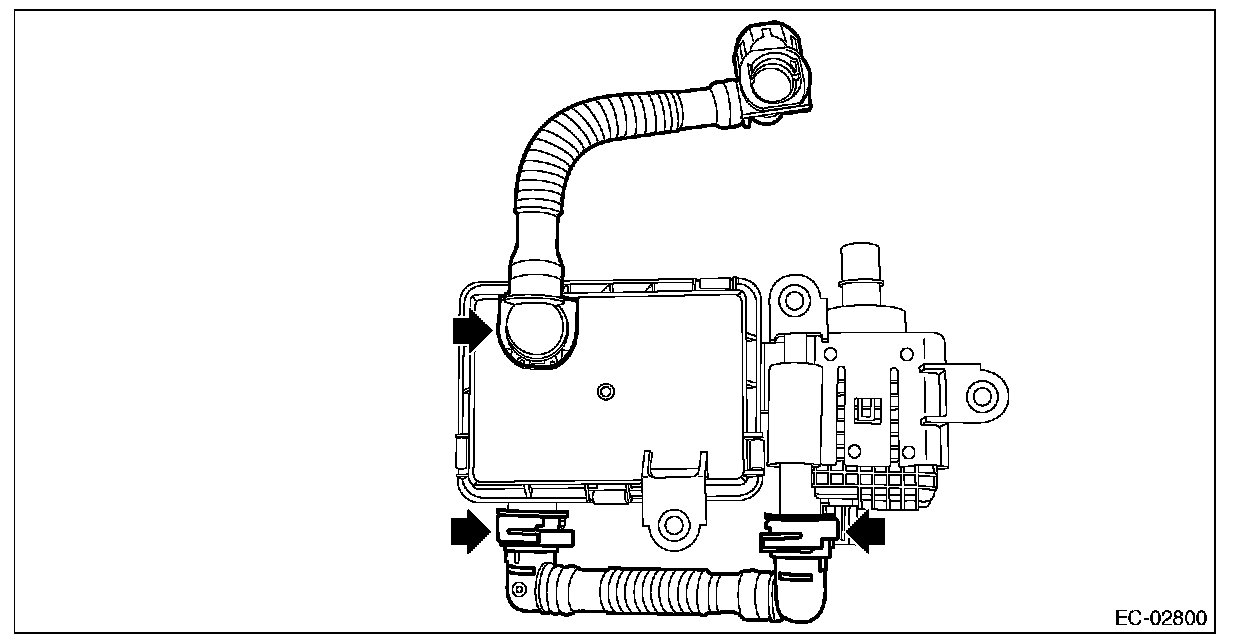

Disconnect the drain tube from the leak check valve assembly.

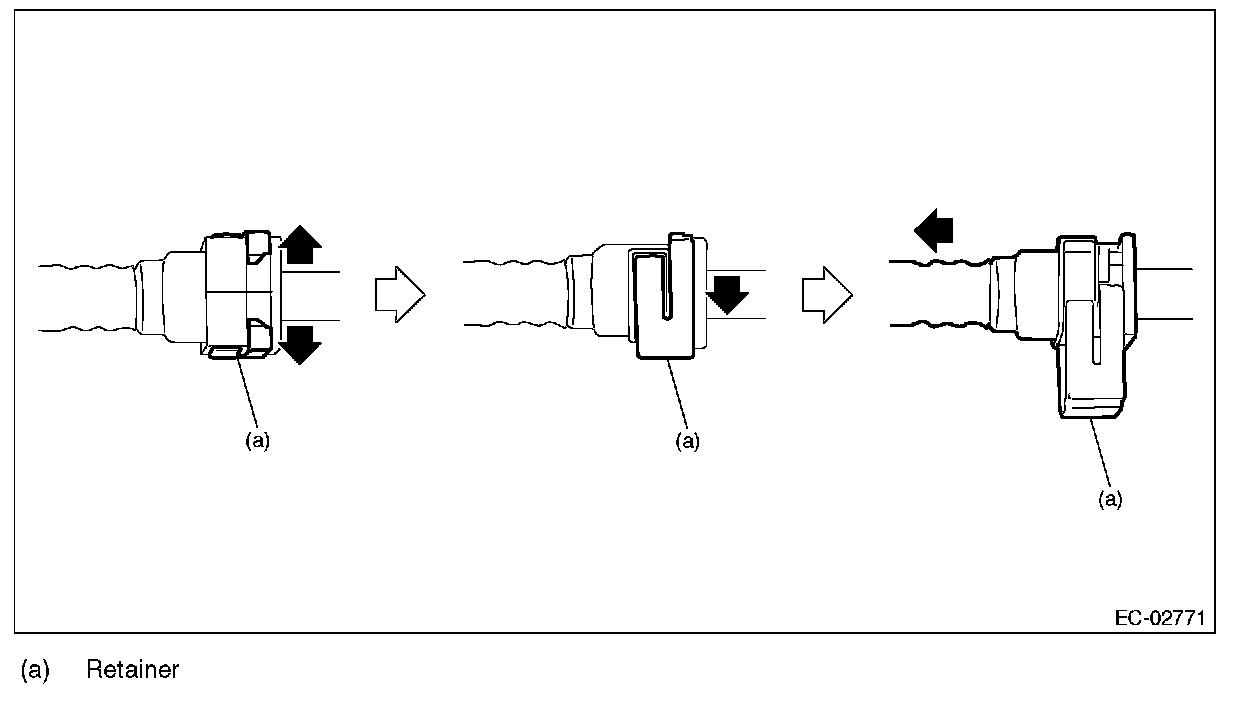

NOTE: Disconnect the quick connector as shown in the figure.









ASSEMBLY

Assemble the parts in the reverse order of disassembly while being careful of the following.

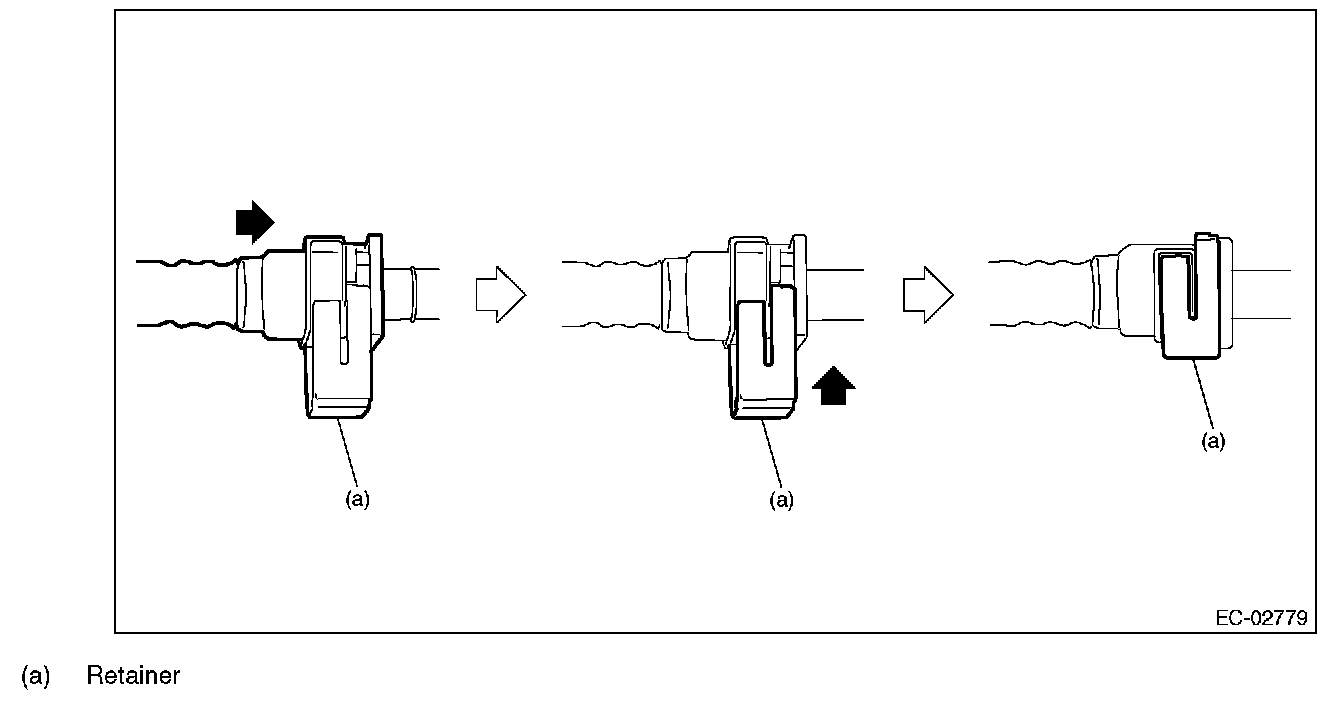

- Connect the quick connector as shown in the figure.

CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, securely insert the pipe all the way before locking the retainer.
- When it is difficult to lock the retainer, make sure that the pipe is securely inserted.
- Make sure that the quick connector is securely connected.
