Air Intake Boot
AIR INTAKE BOOTREMOVAL 1.

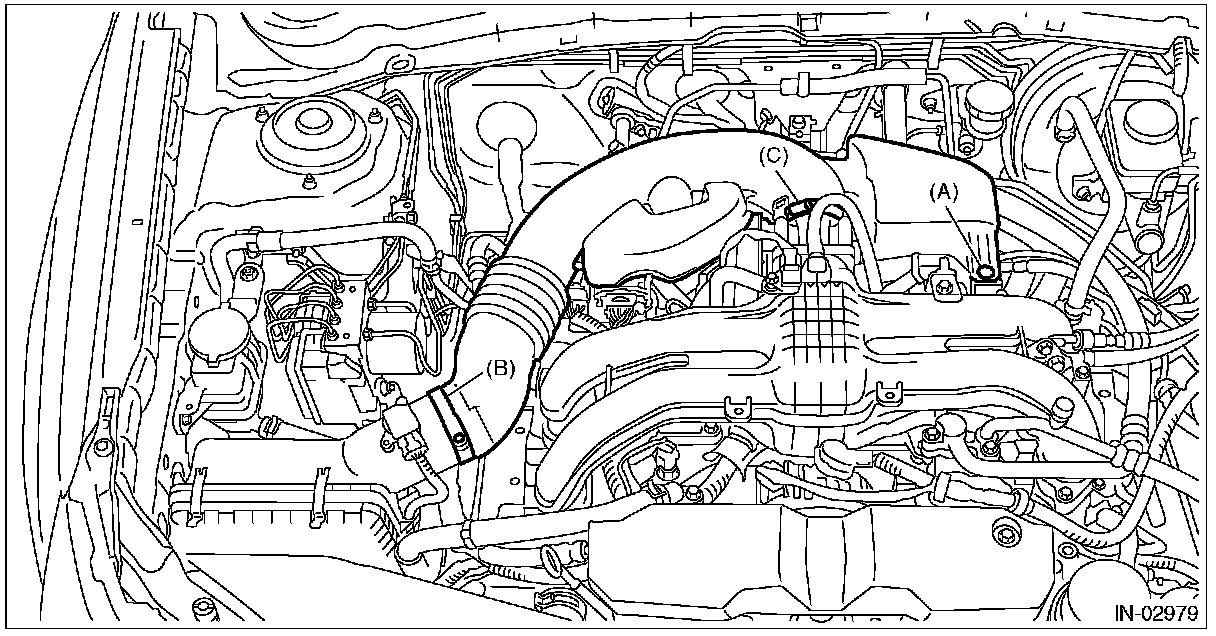

Remove the clip (A) from the air intake boot.
2.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
3.
Loosen the clamp (C) which connects the air intake boot and
throttle body.
4.
Disconnect the
PCV hose and remove the air intake boot.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 3 N.m (0.3 kgf-m, 2.2 ft-lb)
