Removal and Replacement
STARTERREMOVAL

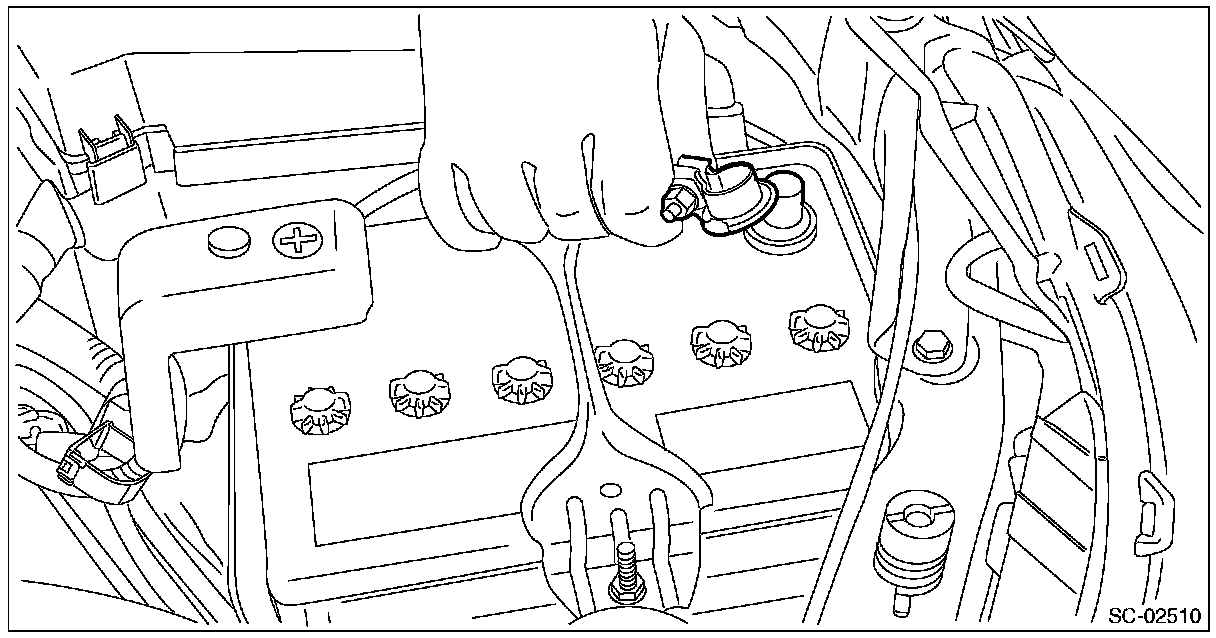

1. Disconnect the ground cable from battery.

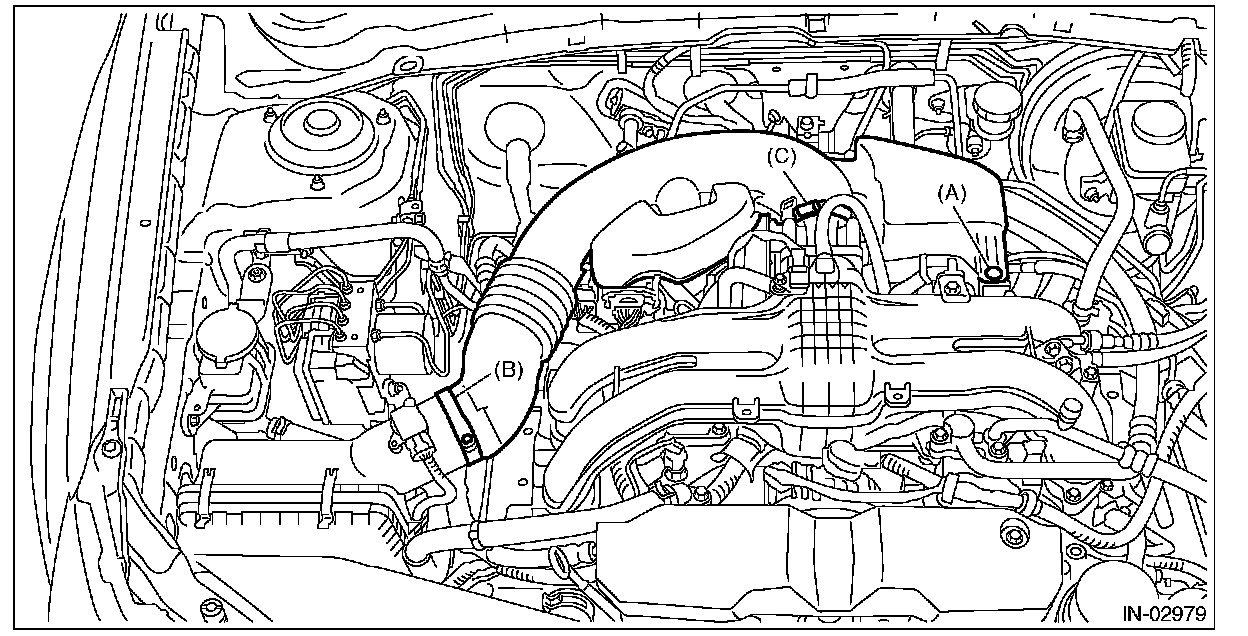

2. Remove the clip (A) from the air intake boot.
3. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
4. Loosen the clamp (C) which connects the air intake boot and throttle body.
5. Remove the air intake boot from the throttle body, and move it to the left side wheel apron. (non-turbo model)
6. Remove the intercooler. (turbo model)

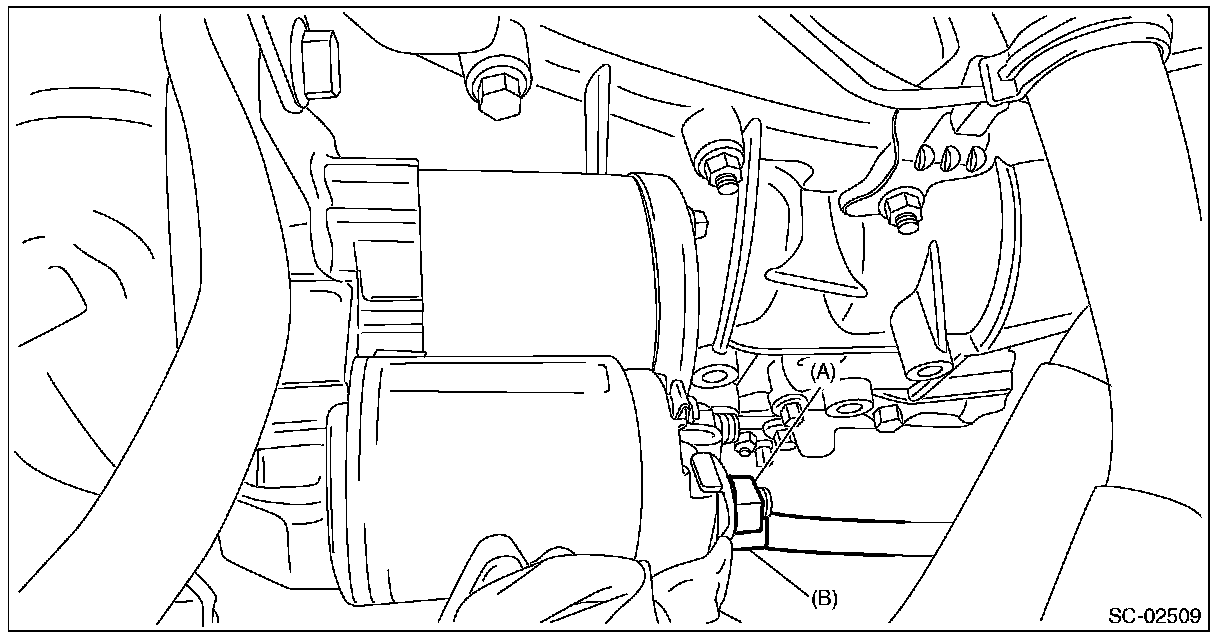

7. Disconnect the connector (B) and terminal (A) from starter.

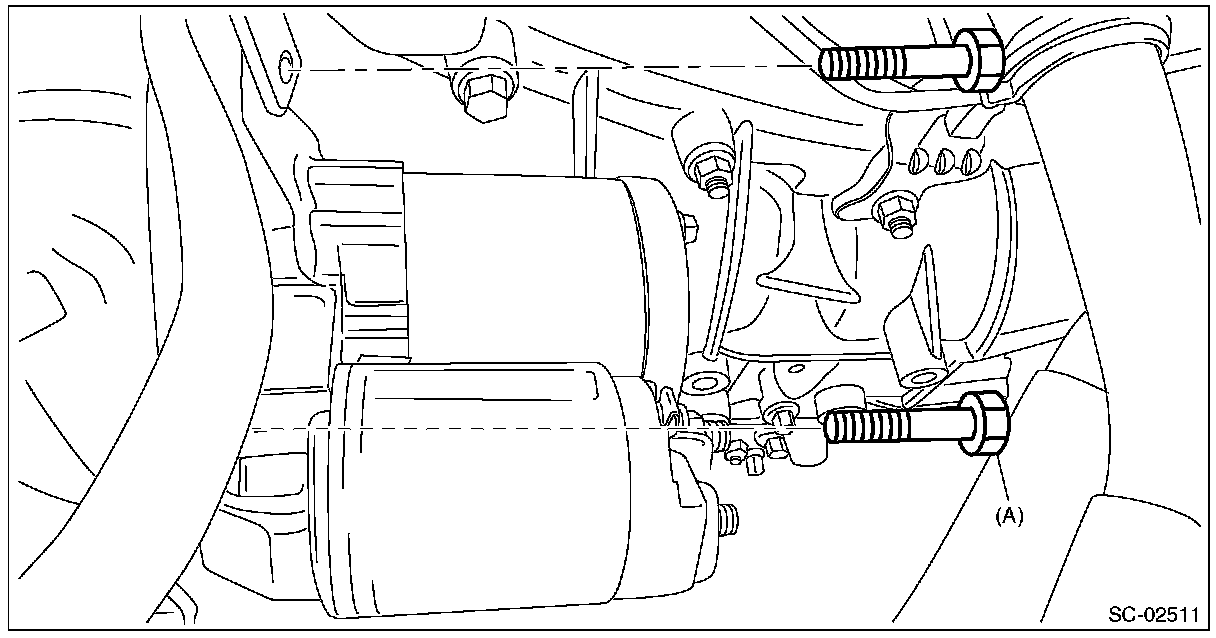

8. Remove the starter from transmission.
NOTE: For the AT model, a nut is used at (A).
INSTALLATION
Install in the reverse order of removal.

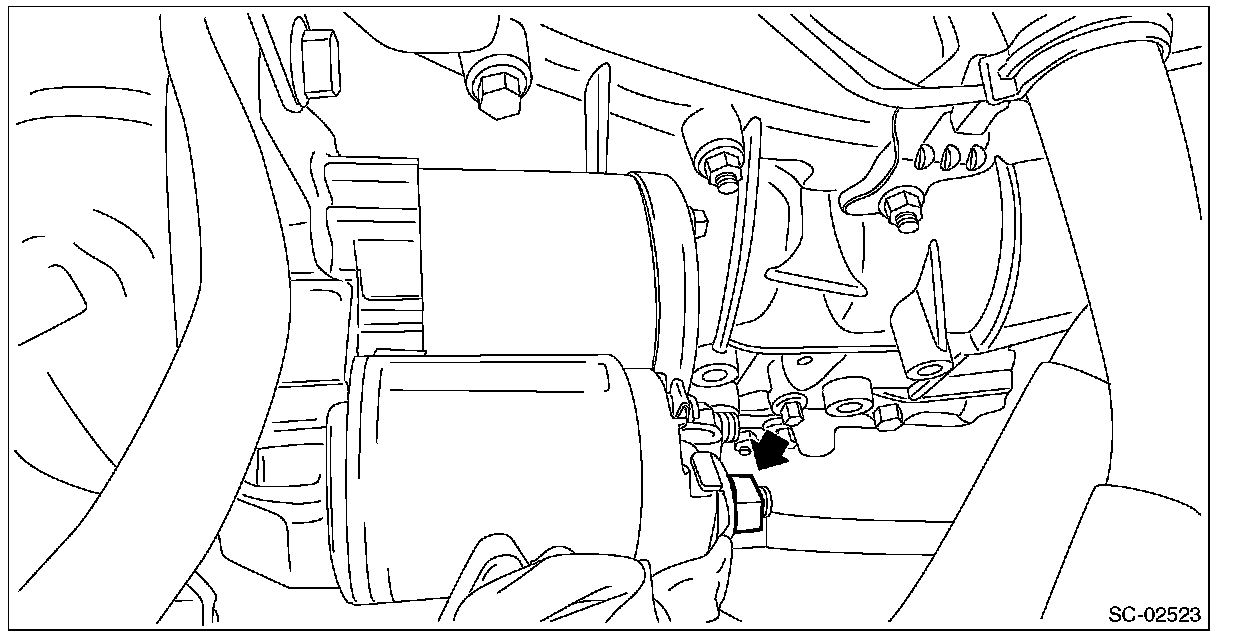

NOTE: For the AT model, a nut is used at (A).
Tightening torque: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
Tightening torque: 10 N.m (1.0 kgf-m, 7.4 ft-lb)
Tightening torque: 3 N.m (0.3 kgf-m, 2.2 ft-lb)
