Torque Converter Clutch Assembly

REMOVAL

1) Remove the transmission assembly from the vehicle.

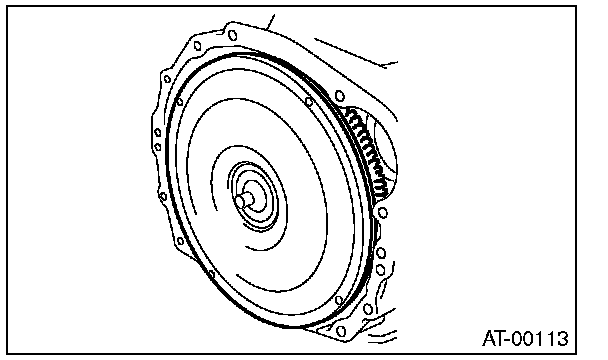

2) Pull out the torque converter clutch assembly and oil pump shaft horizontally.

NOTE:
Be sure not to scratch the inside of bushing in oil pump shaft.

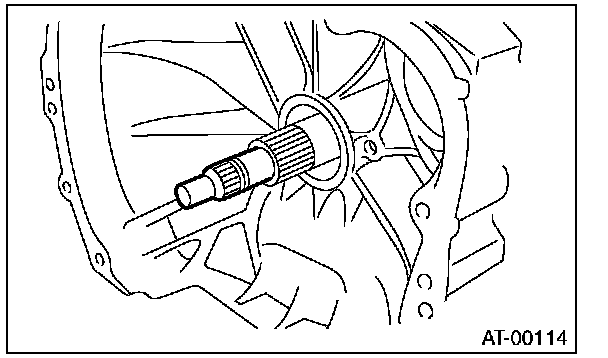

3) Remove the input shaft.

NOTE:
When the torque converter clutch assembly is removed, the input shaft will also come off.

4) Remove the oil pump shaft from torque converter clutch assembly as necessary.
