Front Door Window Glass: Service and Repair

FRONT DOOR GLASS







REMOVAL

1. Remove the front door trim.
2. Remove the sealing cover.
3. Remove the pads.

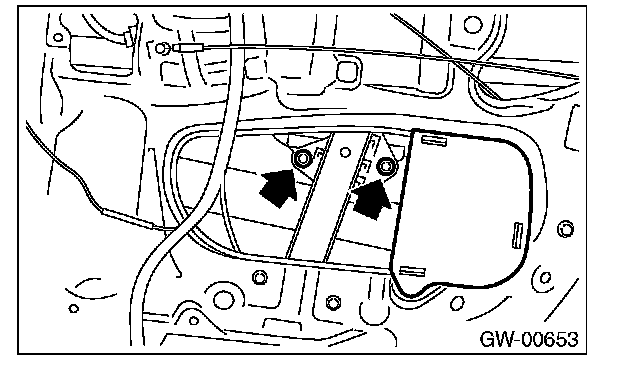

4. Operate the power window switch to move the glass, and remove the bolts.

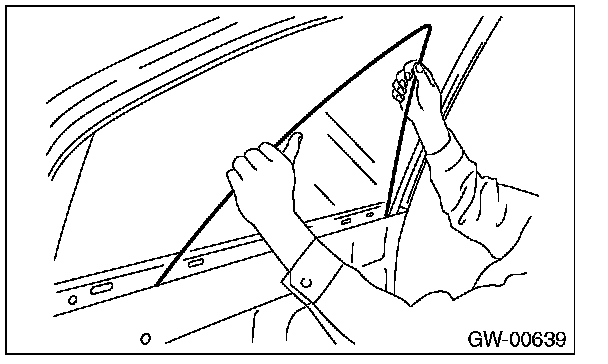

5. Tilt the door glass forward and remove the door glass from the glass run rubber.
6. Remove the door glass while tilting.

CAUTION: Avoid impact and damage to the glass.







INSTALLATION

CAUTION: Make sure that the glass run rubber is placed securely in door frame and sash.

Install each part in the reverse order of removal.

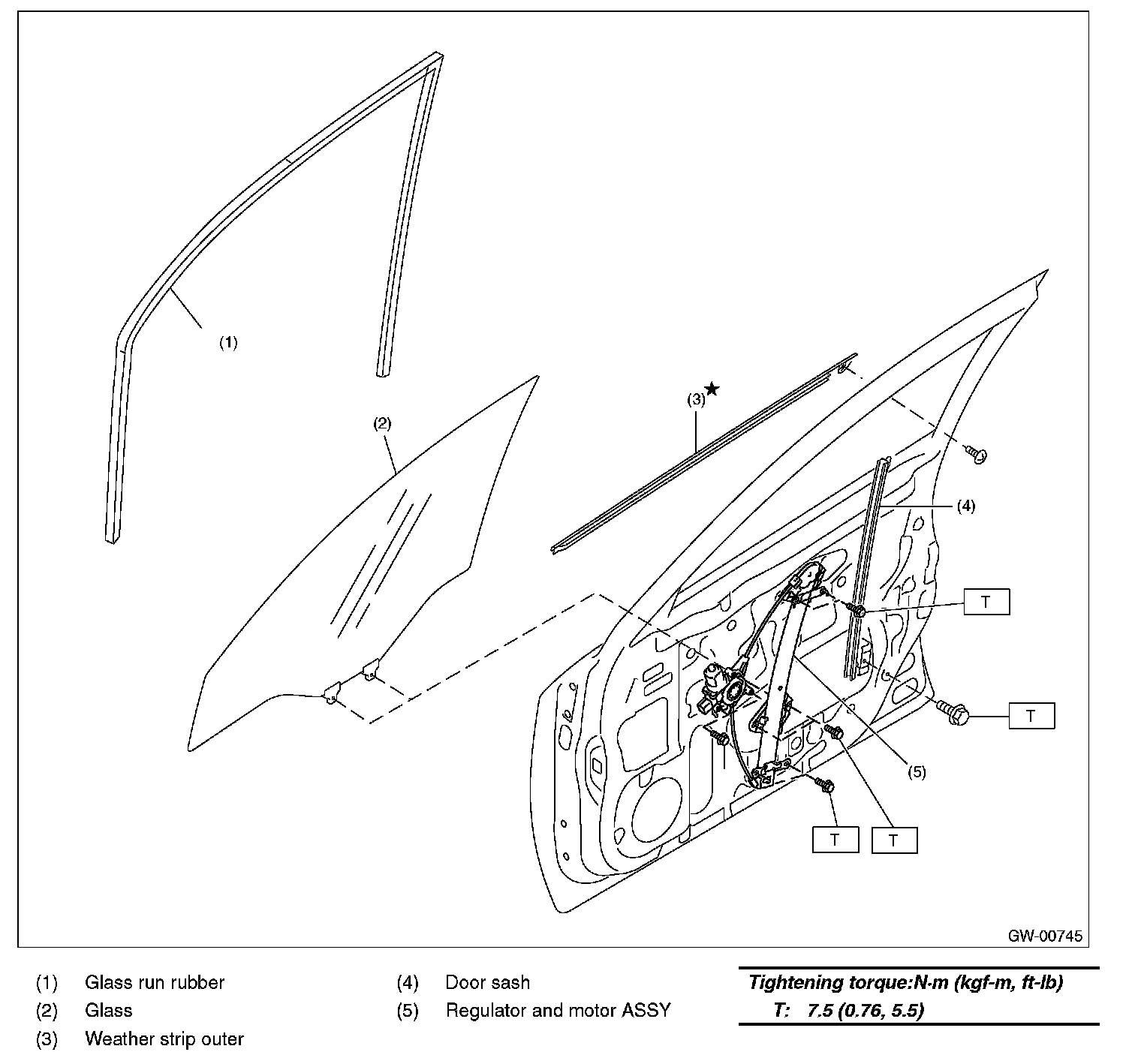

Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to FRONT DOOR GLASS, COMPONENT, General Description.]
