Removal and Replacement

WASHER TANK AND MOTOR

REMOVAL
1. Open the front hood.
2. Disconnect the ground cable from battery.
3. Remove the front bumper.

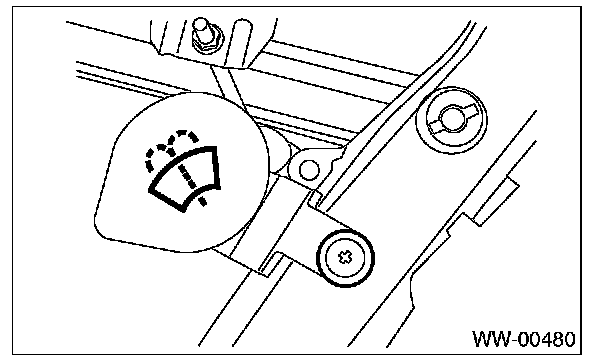

4. Remove the clip of the washer tank duct.

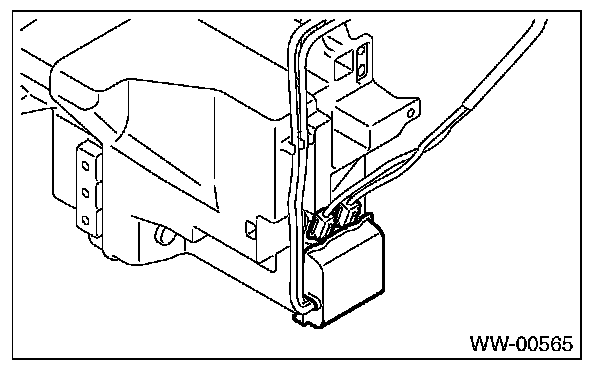

5. Remove the washer motor cover, and disconnect the connector.

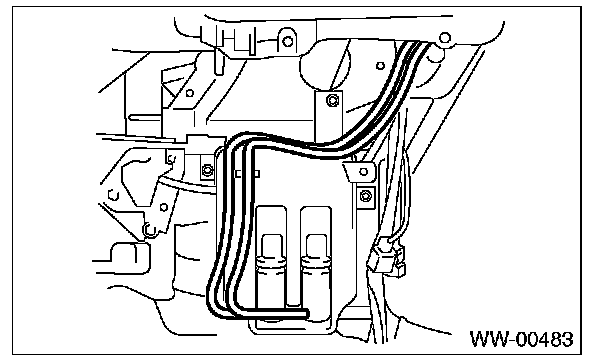

6. Prepare a container before disconnecting the washer hose and drain all washer fluid in the tank.

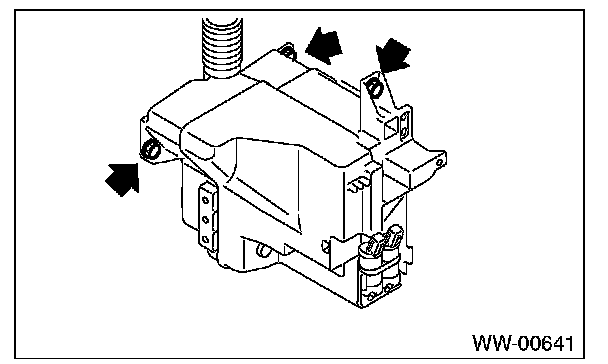

7. Remove the bolts and nuts and remove the washer tank.






INSTALLATION
1. Install each part in the reverse order of removal.

Tightening torque: 6.0 N.m (0.61 kgf-m, 4.4 ft-lb)

2. Adjust the headlight beam and fog light beam.
- Adjust the headlight beam.
- Adjust the fog light beam. (Model with fog light)
