Outer Mirror



Outer Mirror







REPLACEMENT

CAUTION:
- When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
- When installing the mirror - repair, insert the connector and clip securely.

1. Operate the remote control mirror switch to face the mirror - repair upward.
2. Disconnect the ground cable from battery.
3. Remove the mirror - repair.

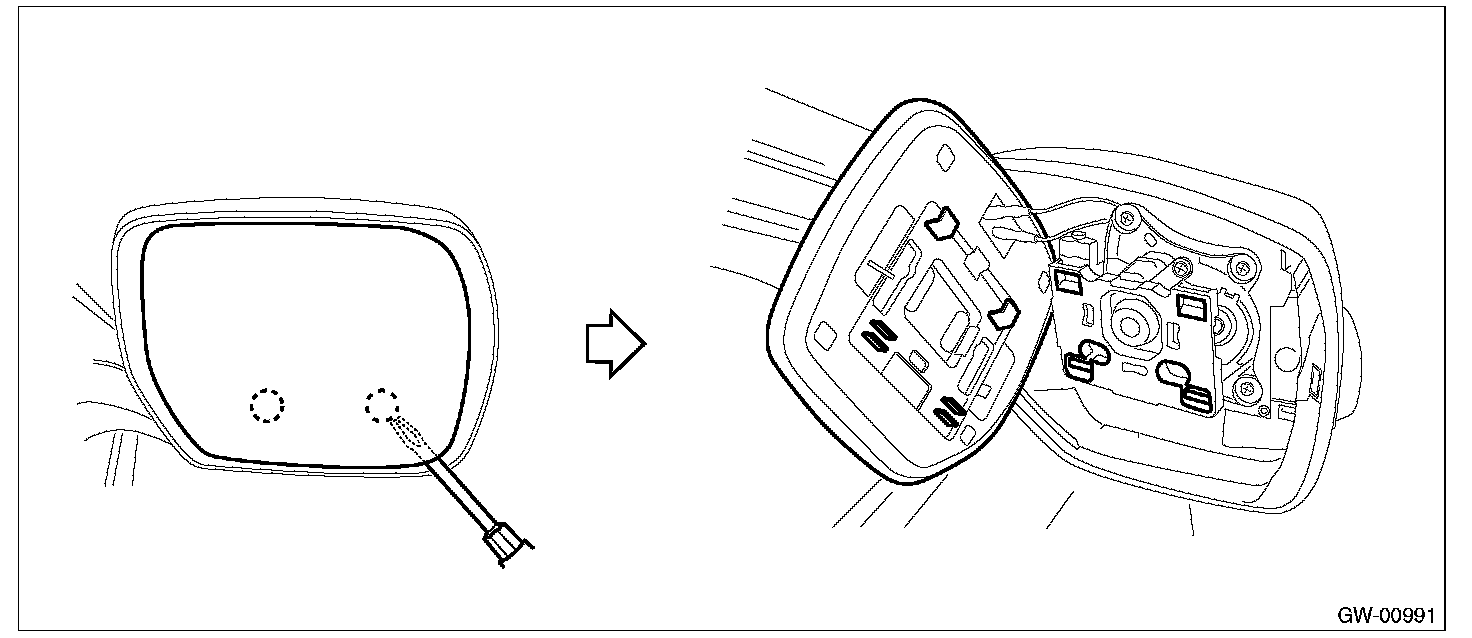

1. Disconnect the clips using a flat tip screwdriver.

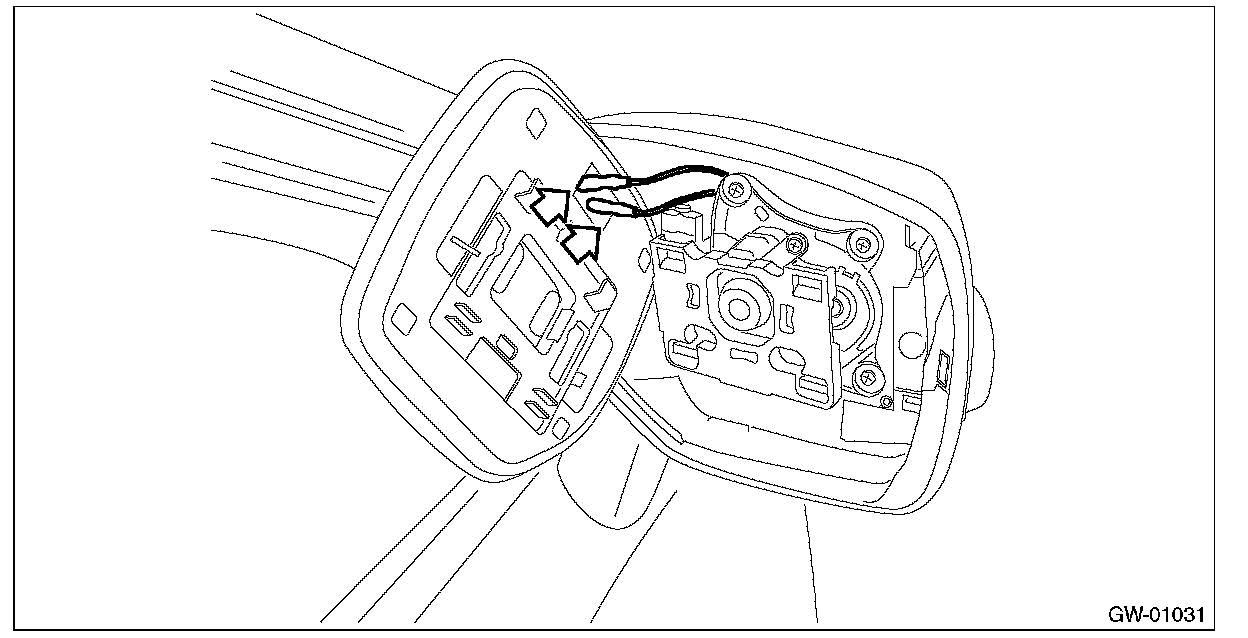

2. Disconnect the mirror heater connector. (Model with mirror heater)







4. Install the mirror - repair in the reverse order of removal.
