Blower Motor Resistor: Service and Repair

Blower Resistor (Manual A/C Model

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box.
3. Remove the engine control module (ECM).

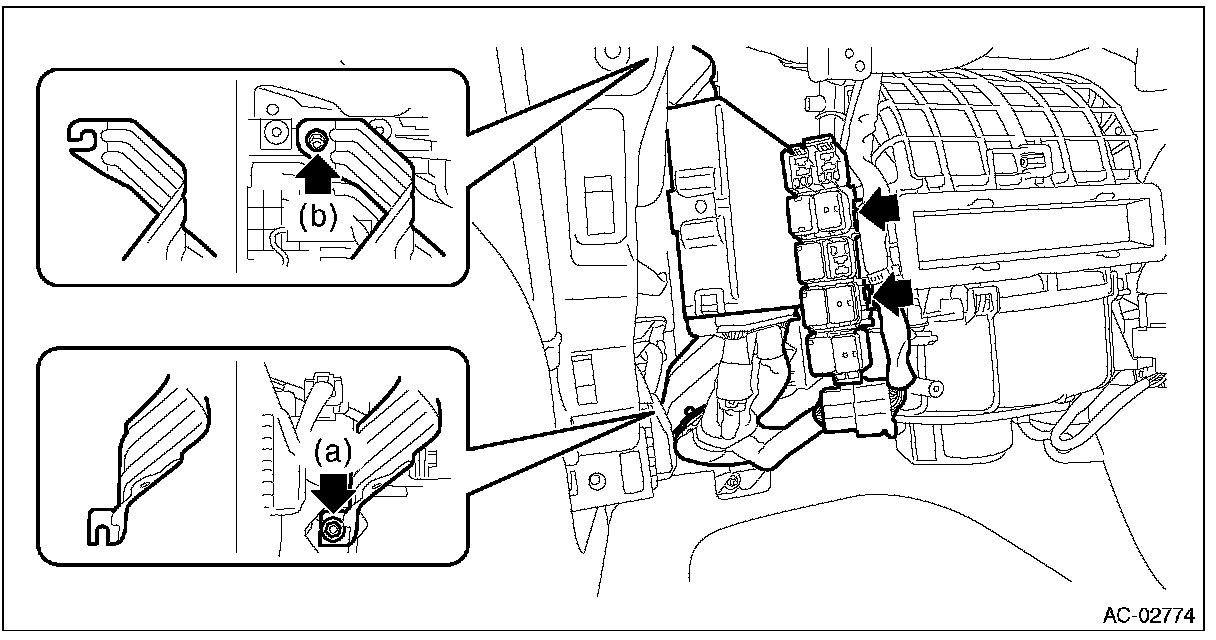

1. Release the lock and remove the relay holder.
2. Remove the nuts (a).
3. Loosen the nut (b), and remove the engine control module (ECM).






4. Remove the resistor.

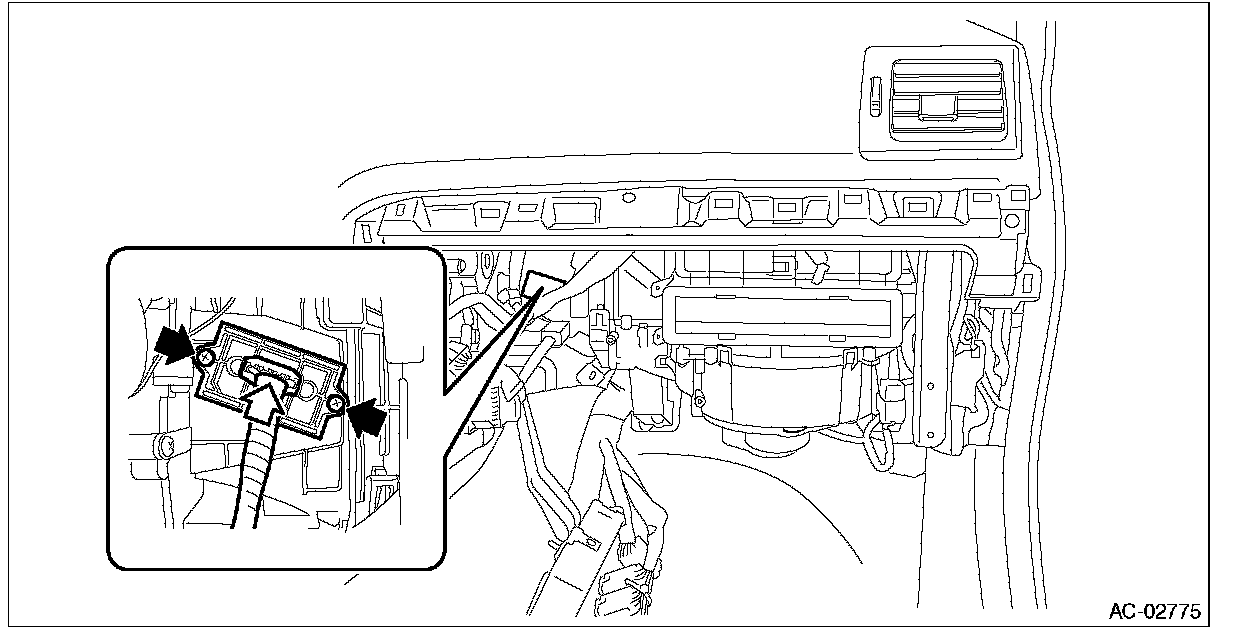

1. Disconnect the connector.
2. Remove the screw and remove the resistor.






INSTALLATION

Install each part in the reverse order of removal.

Tightening torque: Engine control module (ECM): 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
