Blower Motor Unit Assembly

Blower Motor Unit Assembly

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the glove box.
3. Remove the engine control module (ECM).

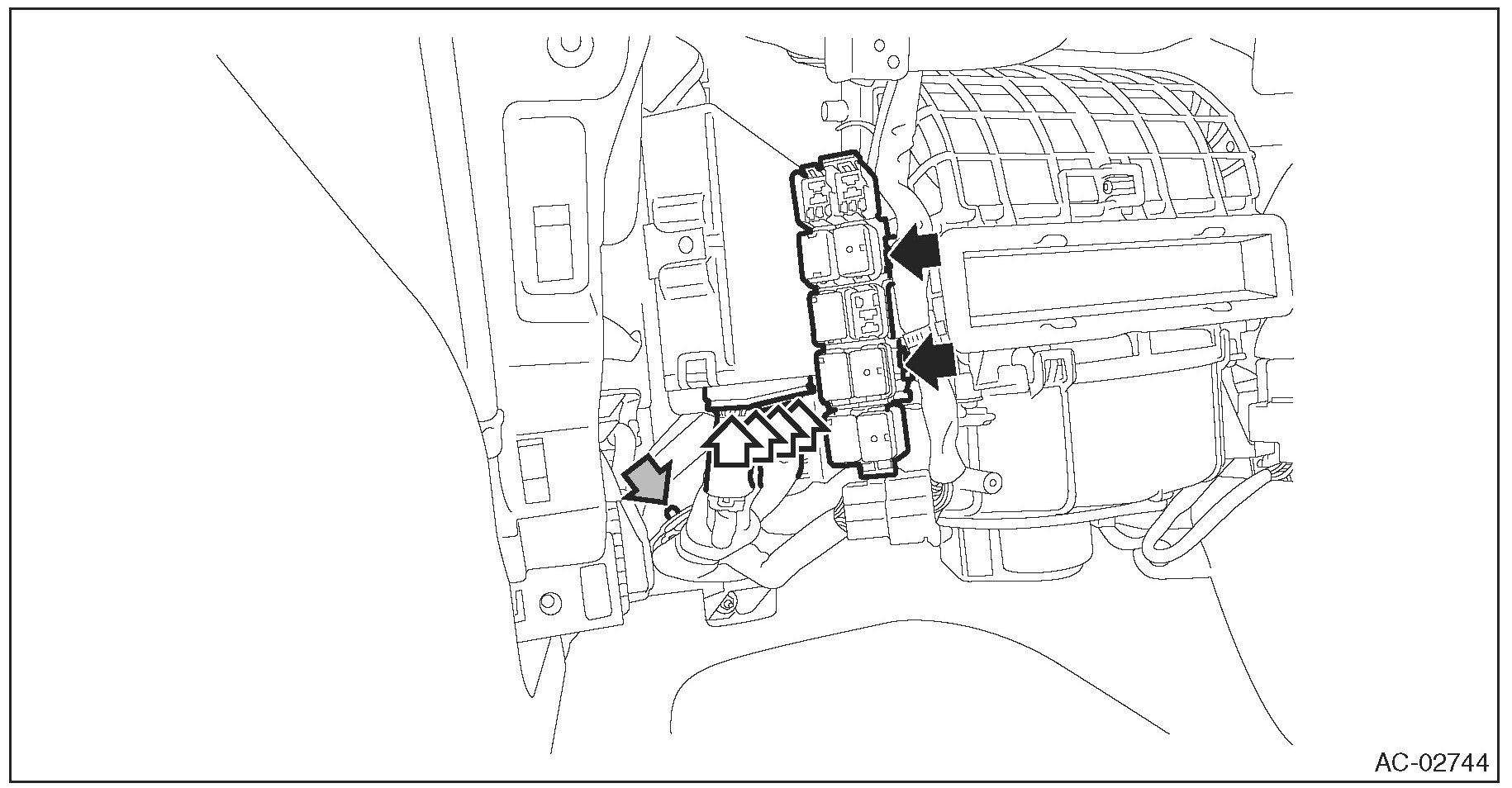

1. Release the lock and remove the relay holder.
2. Remove the harness clip, and disconnect the connector.

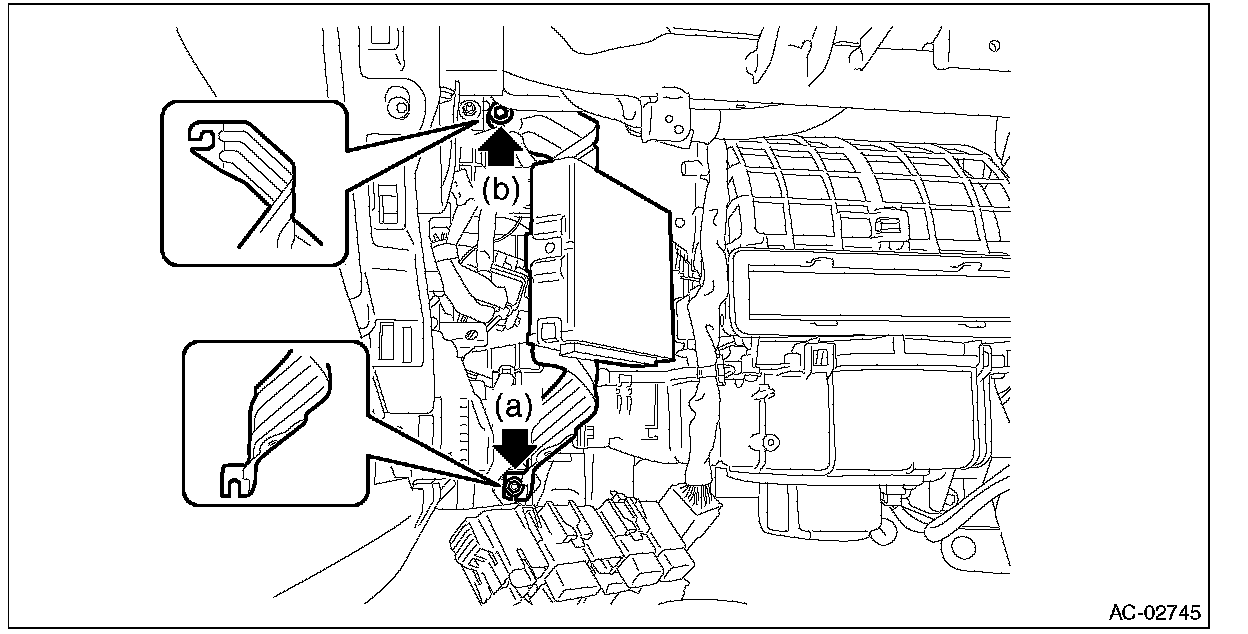

3. Remove the nuts (a).
4. Loosen the nut (b), and remove the engine control module (ECM).






4. Remove the blower motor unit assembly.

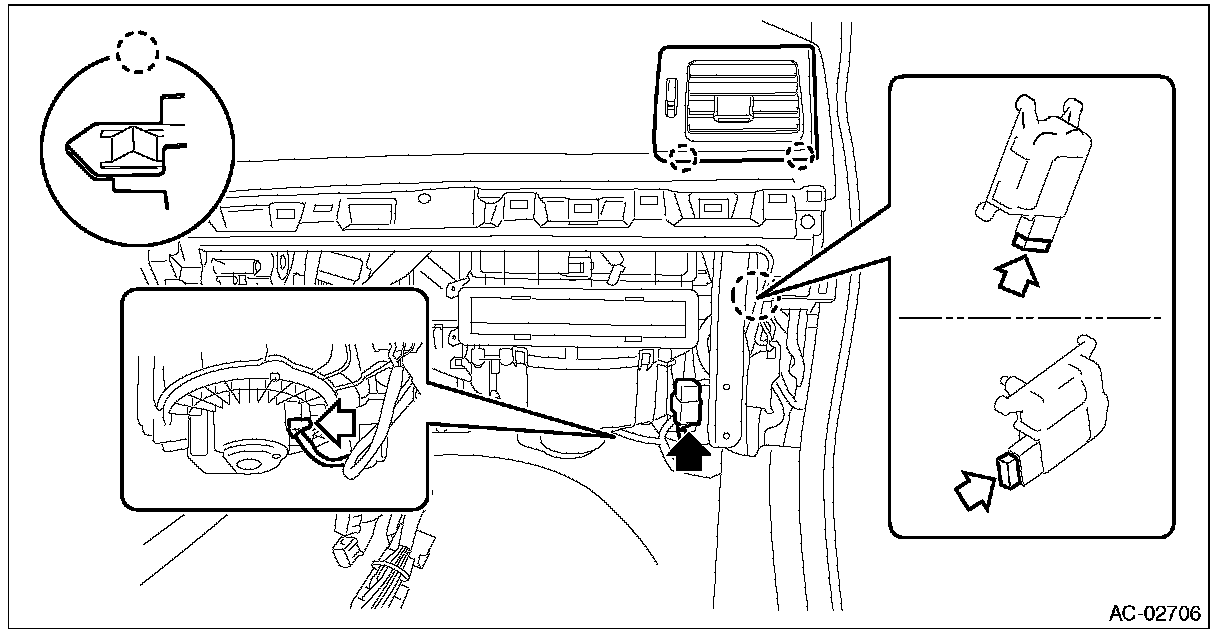

1. Release the claws, and then remove the grille assembly - ventilation RH.
2. Disconnect the blower motor relay and each connector.

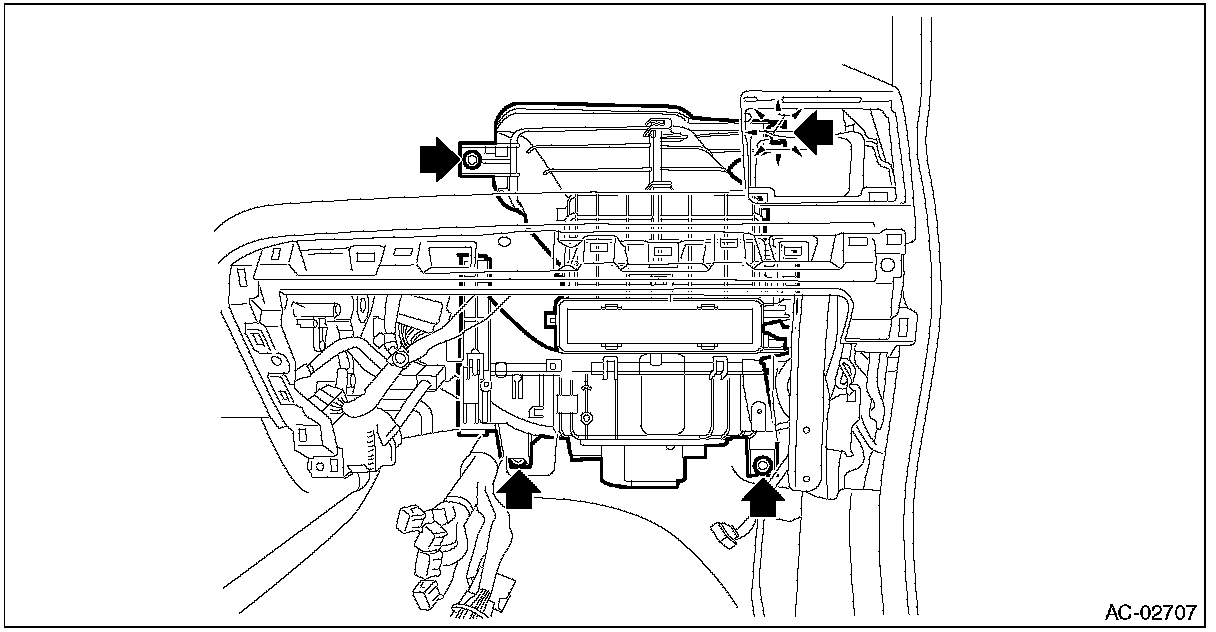

3. Remove the bolts and nuts to remove blower motor unit assembly.

NOTE: Remove the RH upper nut from the mounting portion of the grille assembly - ventilation RH.






INSTALLATION

CAUTION: After installing the grille assembly - ventilation RH, check that the air vent grille of the grille assembly - ventilation RH is inserted correctly into the air vent duct.

Install each part in the reverse order of removal.

Tightening torque:
Blower motor unit:

T: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
Engine control module (ECM): 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
