Control Assembly: Testing and Inspection
Control PanelINSPECTION
1. CHECK ILLUMINATION
UNIT INSPECTION

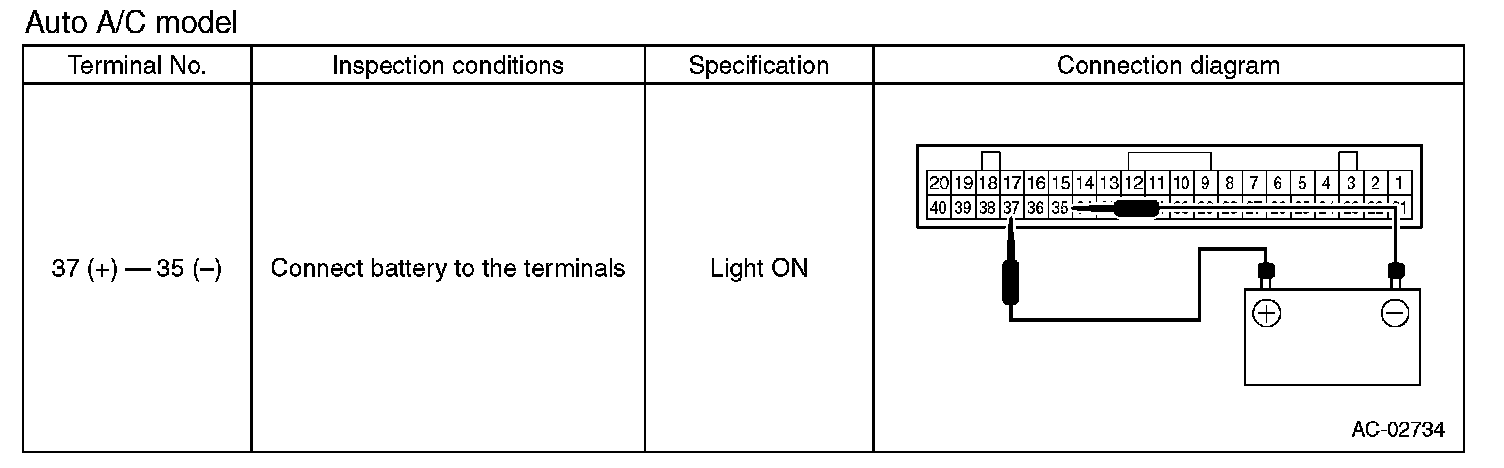

1. Check the illumination operation when battery voltage is applied between the terminals of control panel.
2. If it does not operate normally, replace the heater control assembly.
2. BLOWER SWITCH (MANUAL A/C MODEL)
UNIT INSPECTION
PREPARATION TOOL: Circuit tester

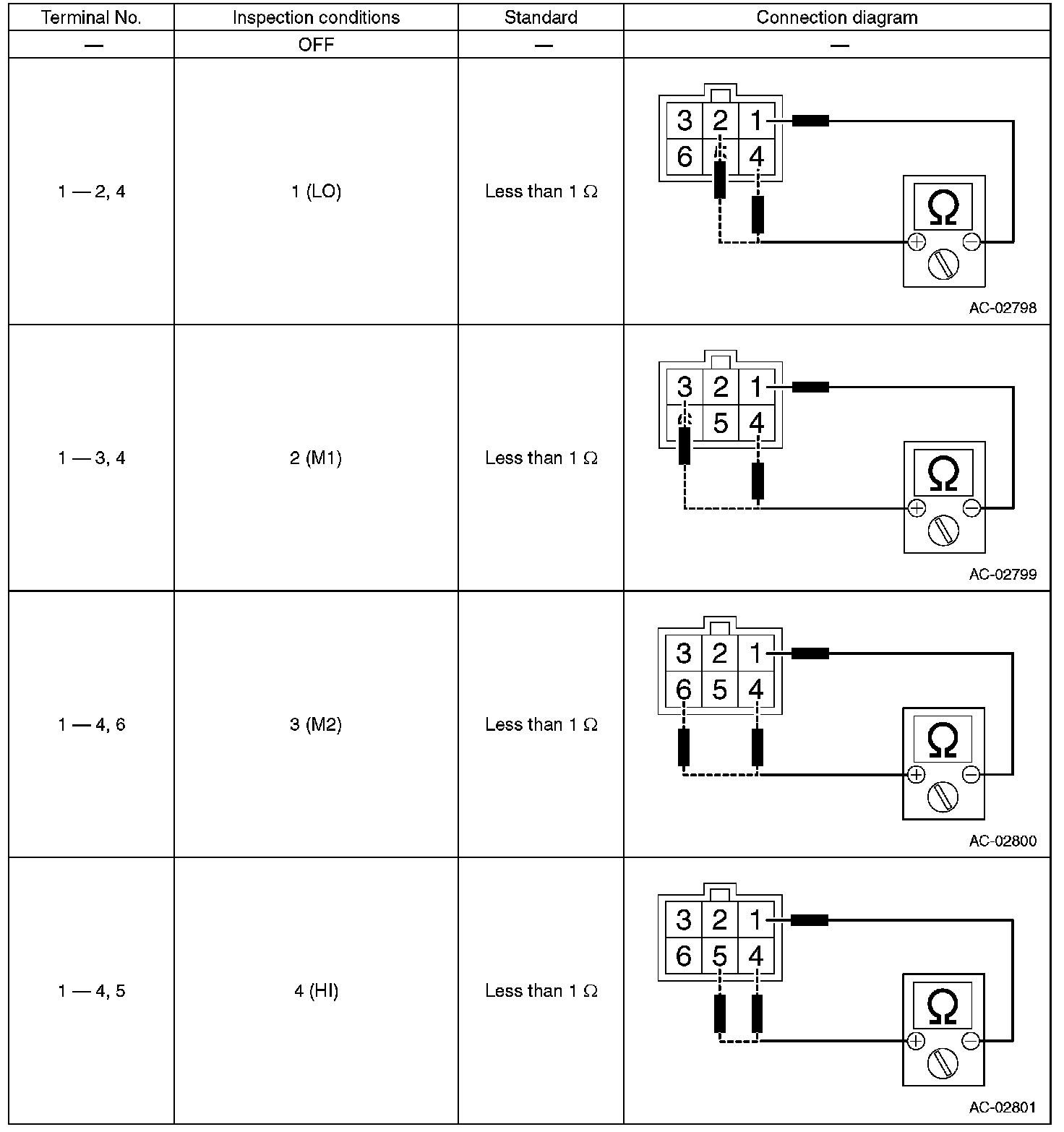

1. Measure the resistance between the control panel terminals.
2. Replace the heater control assembly if the inspection result is not within the standard.
