Power Transistor HVAC: Service and Repair

Power Transistor (Auto A/C Model)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box.
3. Remove the screws and remove the duct - foot RH.

NOTE: Remove the connector and clip of the motor - actuator mix RH, and move the harness aside.

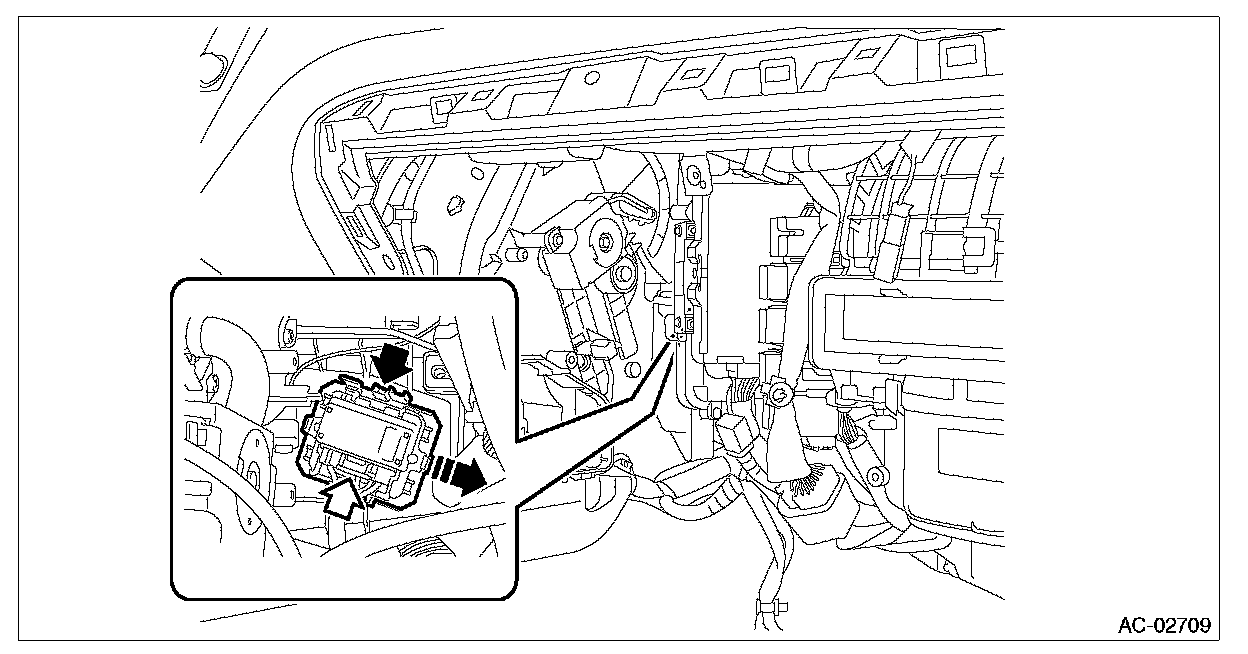

4. Remove the power transistor.
1. Disconnect the connector.
2. Remove the power transistor by pressing the power transistor body claw part and sliding it to left.






INSTALLATION

Install each part in the reverse order of removal.
