Map Light: Service and Repair

Spot Map Light

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the light assembly - map.

CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

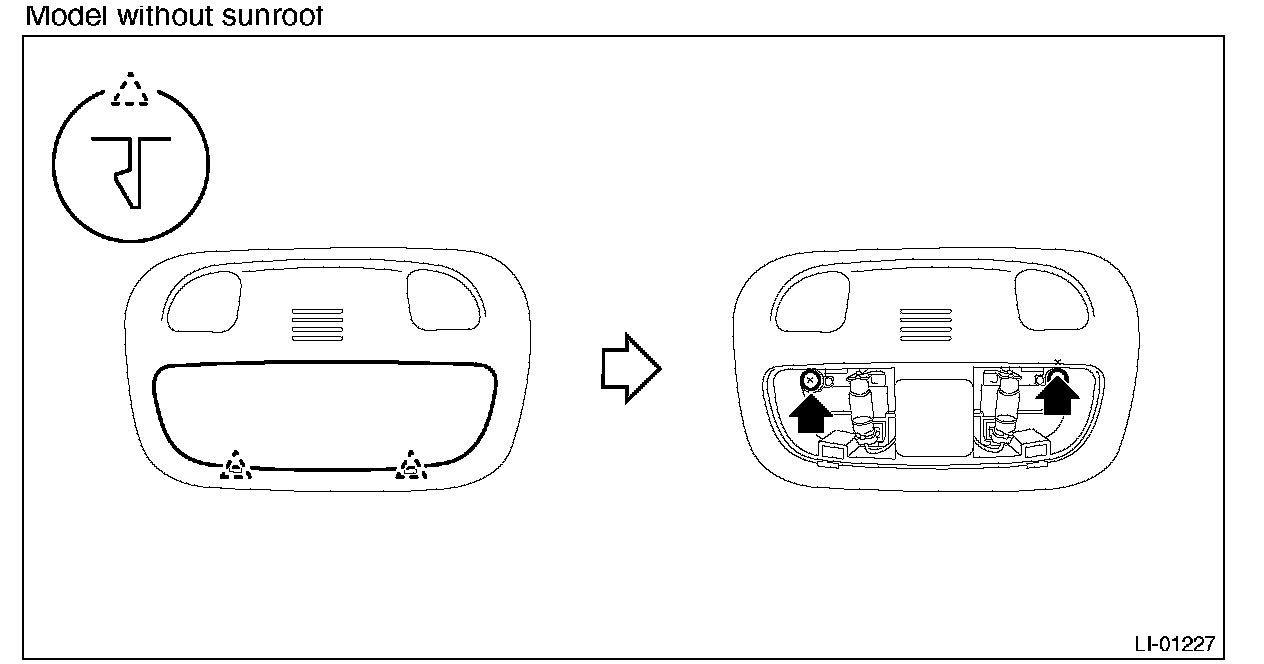

1. Release the claws and remove the lens.
2. Remove the screws and pull out the light assembly - map.










3. Disconnect the connector and remove the light assembly - map and the bulb.

INSTALLATION

Install each part in the reverse order of removal.
