Cylinder Head Assembly

Cylinder Head Bolts

For Cylinder Head Torque & Sequence, Part 1






NOTE:
Measurement should be performed at a temperature of 20°C (68°F).
If there is warpage on the cylinder head mating surface, the cylinder head bolt tightening torque and angle tightening may be improper. When installing the cylinder head, make sure that tightening torque and angle tightening work is performed precisely according to the operation procedures.

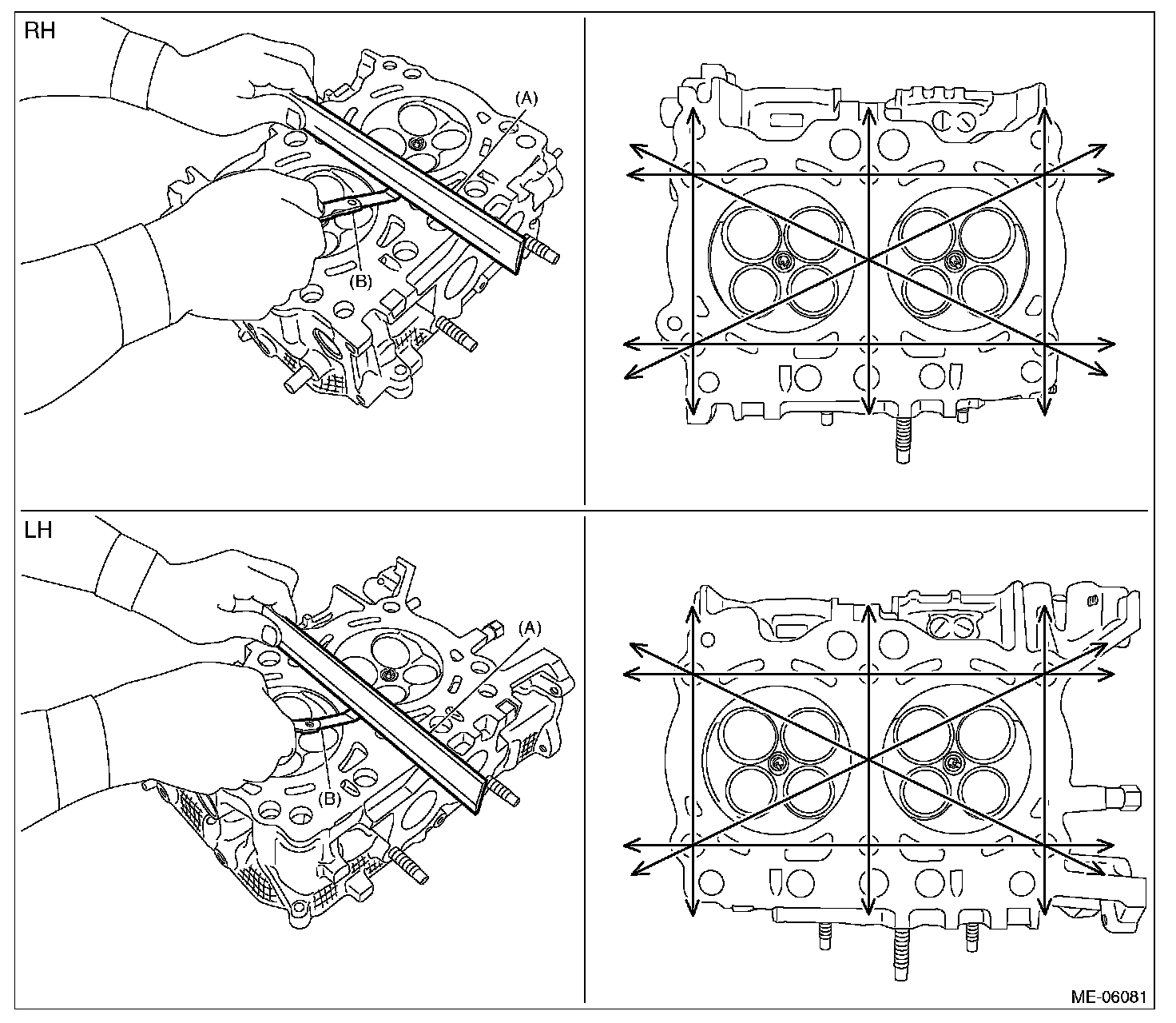

Cylinder head warpage
Limit 0.035 mm (0.0014 in)

Cylinder head grinding limit To 98.4 mm (3.874 in)

Cylinder head height
Standard 98.5 mm (3.878 in)

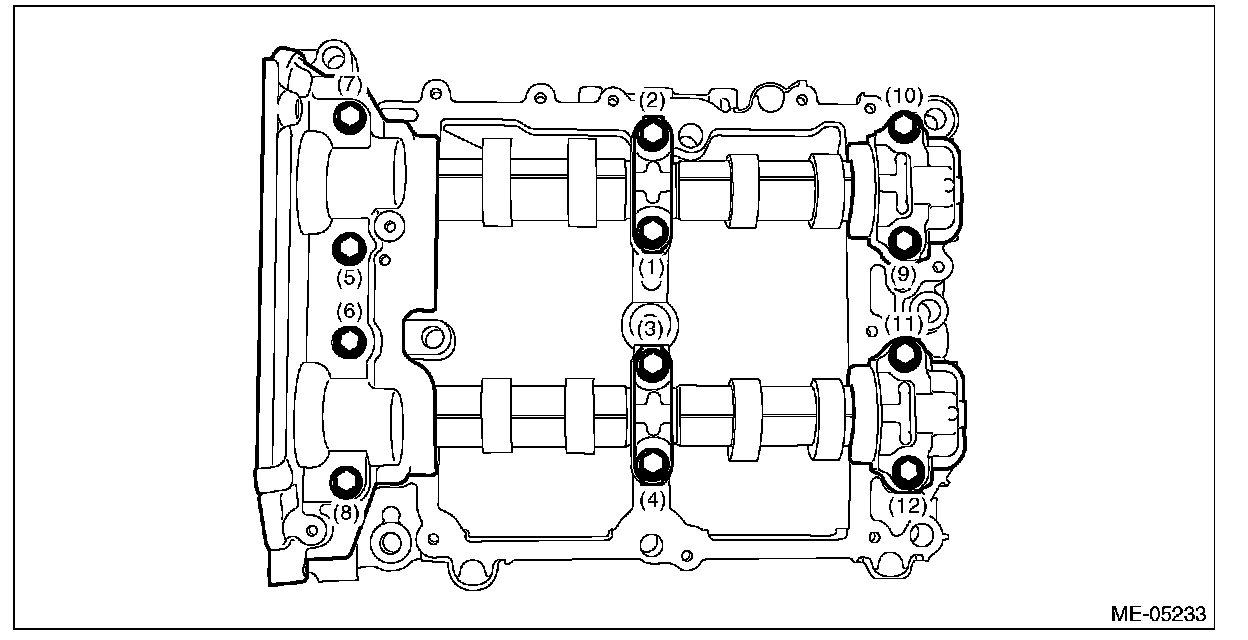

Camshaft Bearing Cap Bolts 18 Nm (1.8 kgf-m, 13.3 ft-lb)








Camshaft Sprocket Bolts Specifications
