Rear Door Window Regulator: Testing and Inspection
Rear Regulator and Motor AssemblyINSPECTION 1.
Disconnect the connector of the motor - rear.
2.
Check the motor operation when battery voltage is applied between terminals of the motor - rear connector.
-

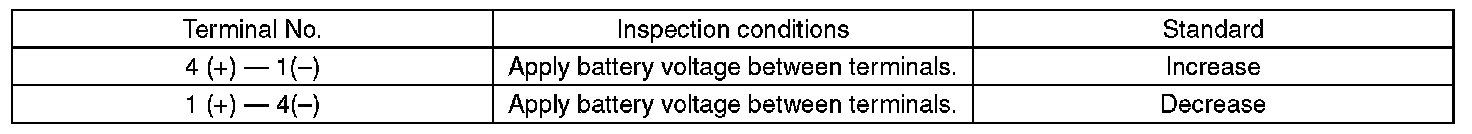

LH side
-

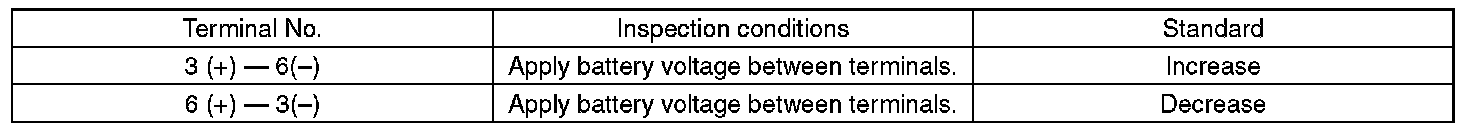

RH side
3.
If it does not operate properly as a result of inspection, replace the regulator and motor assembly - rear.
