Repair and Diagnosis: Application and ID

IDENTIFICATION

1. IDENTIFICATION NUMBER & LABEL LOCATIONS

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

- POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION






- ENGINE

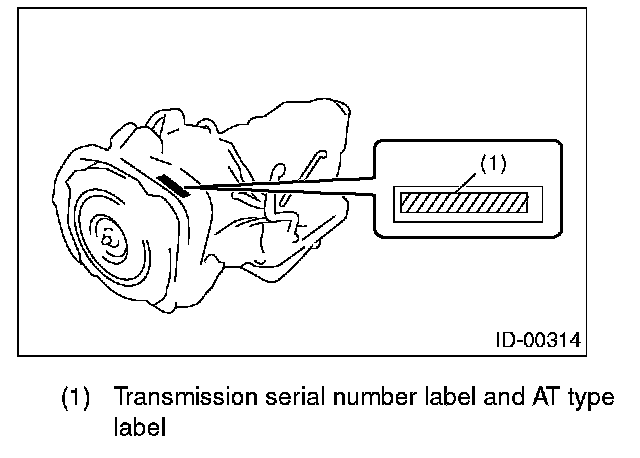

- AUTOMATIC TRANSMISSION
5AT

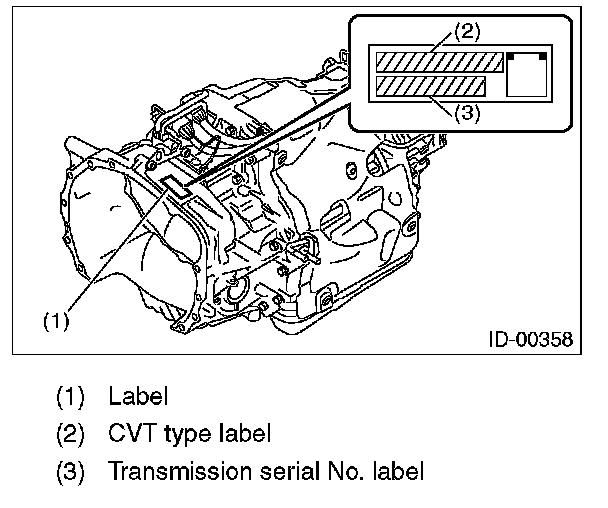

CVT

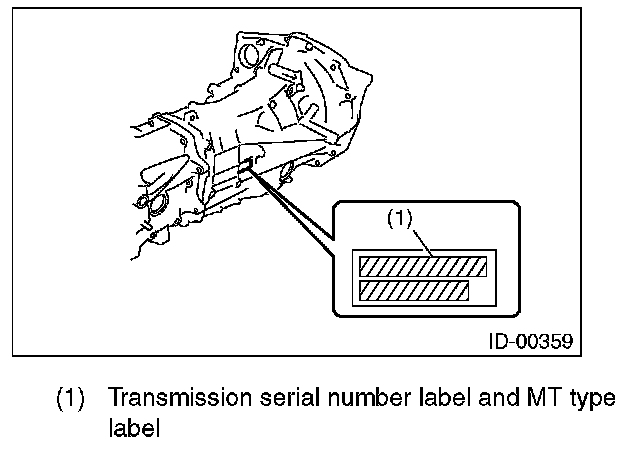

- MANUAL TRANSMISSION
6MT

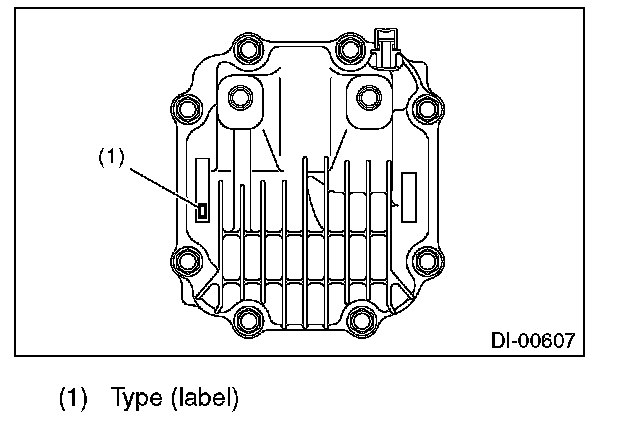

- REAR DIFFERENTIAL
T-type






VA1-type






VA2-TYPE

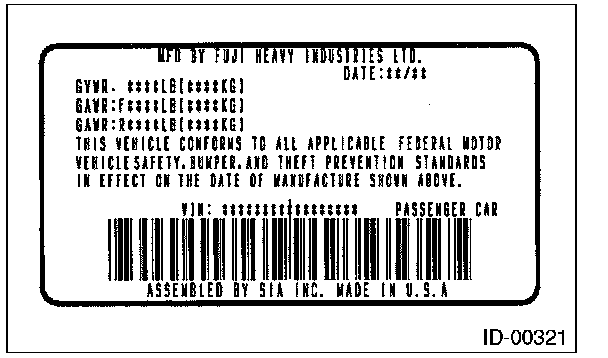

- FMVSS LABEL, CMVSS LABEL
Example (FMVSS label)






- Model number label

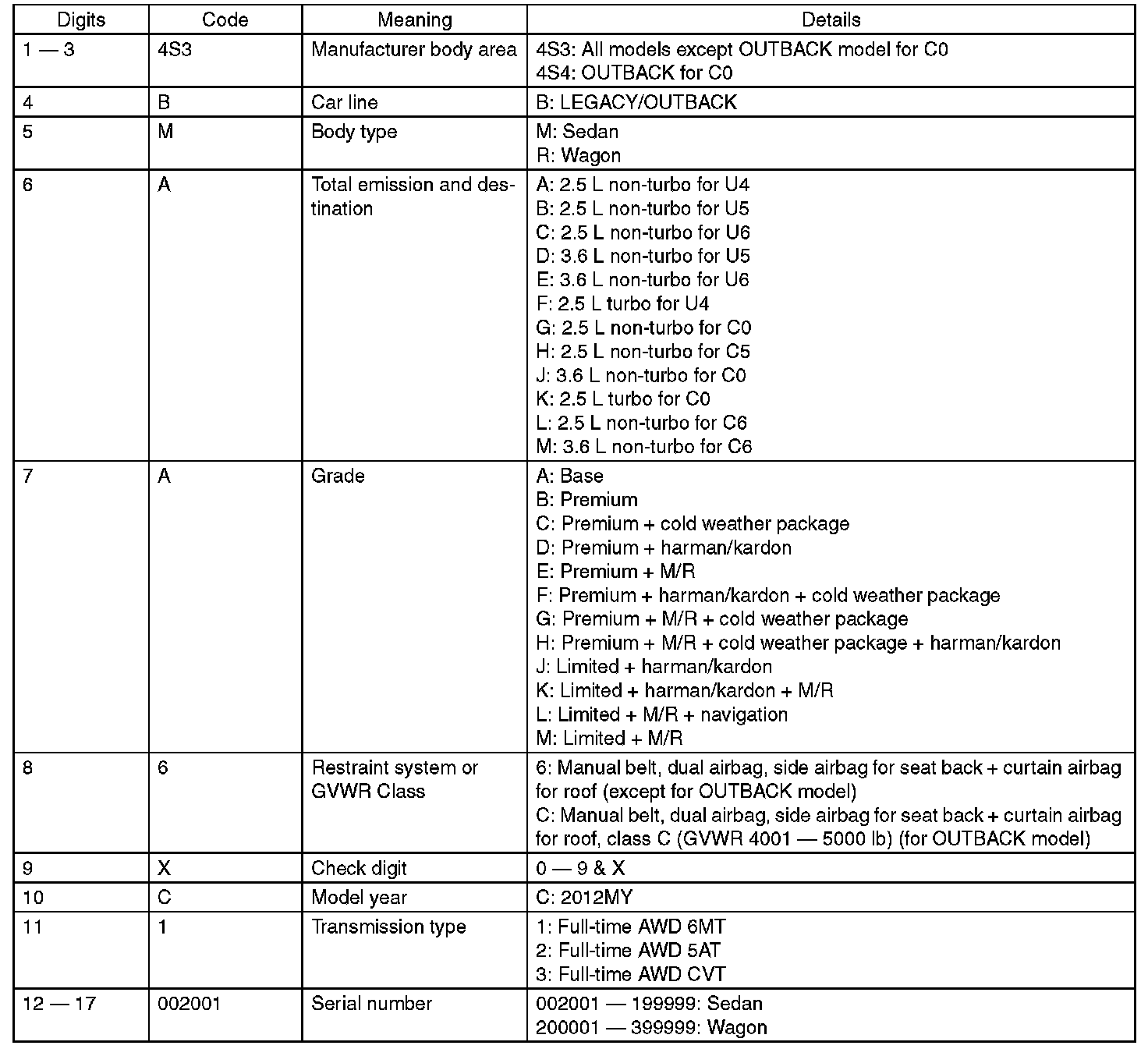

2. MEANING OF V.I.N.
The meaning of the V.I.N. is as follows:
]4S3BMAA6XC1002001[
The starting and ending brackets ( ] [ ) are stop marks.






3. MODEL NUMBER PLATE

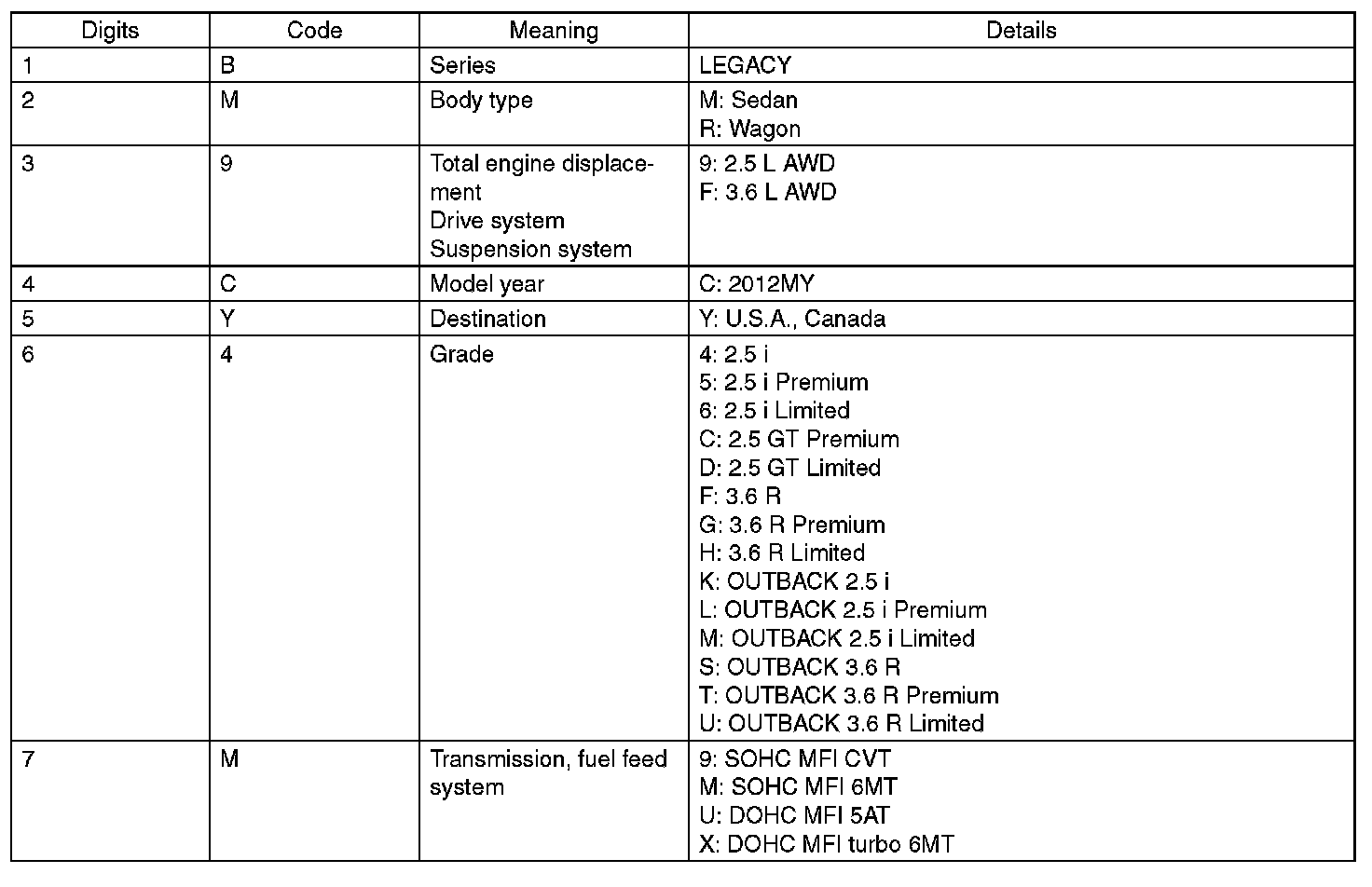

The model number plate indicates: the applied model, the option code, the trim code, the engine type, the transmission type, and the exterior color code. This information is helpful when placing orders for parts.

- BM9CY4M






The engine and transmission type are as follows.

- Engine
EJ253CDAFB






- Transmission

1. MT
TY756VLCCA






2. AT

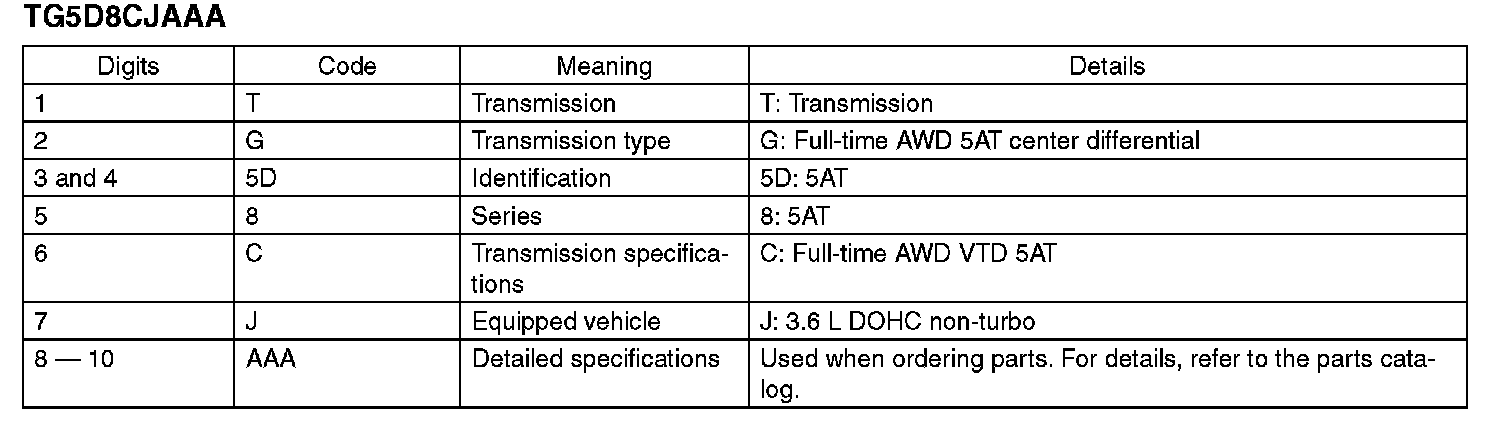

TG5D8CJAAA






3. CVT

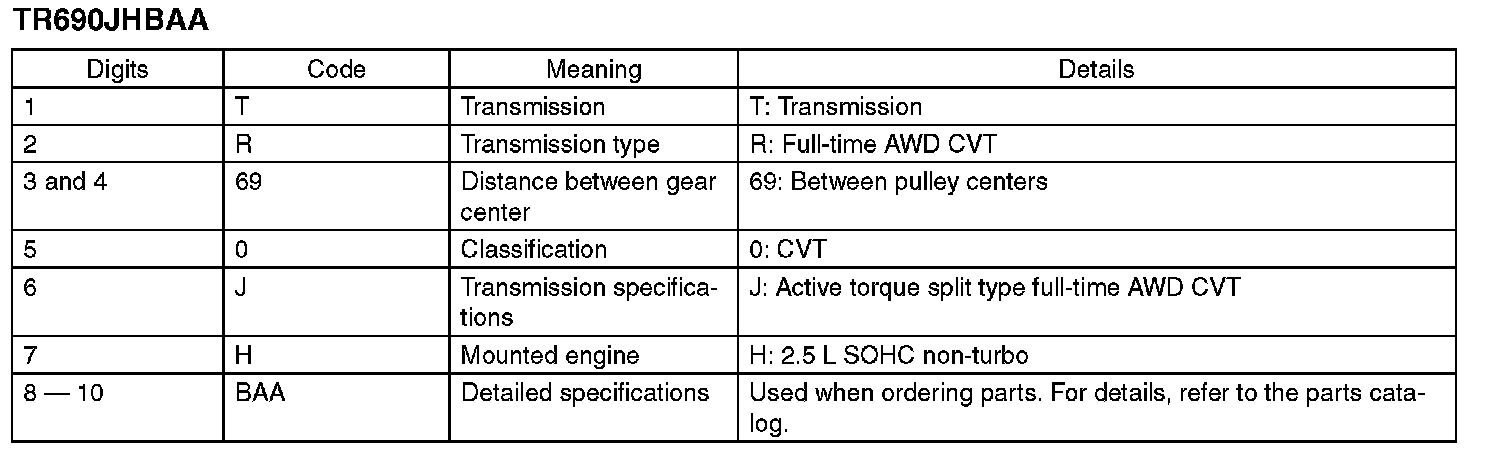

TR690JHBAA






- Rear differential






- Option
U5AB
