Removal

Steering Wheel
REMOVAL

1) Disconnect the negative terminal from the battery, and wait for 60 seconds or more.
2) Set the tire to the straight-ahead position.
3) Remove the driver's airbag module assembly.

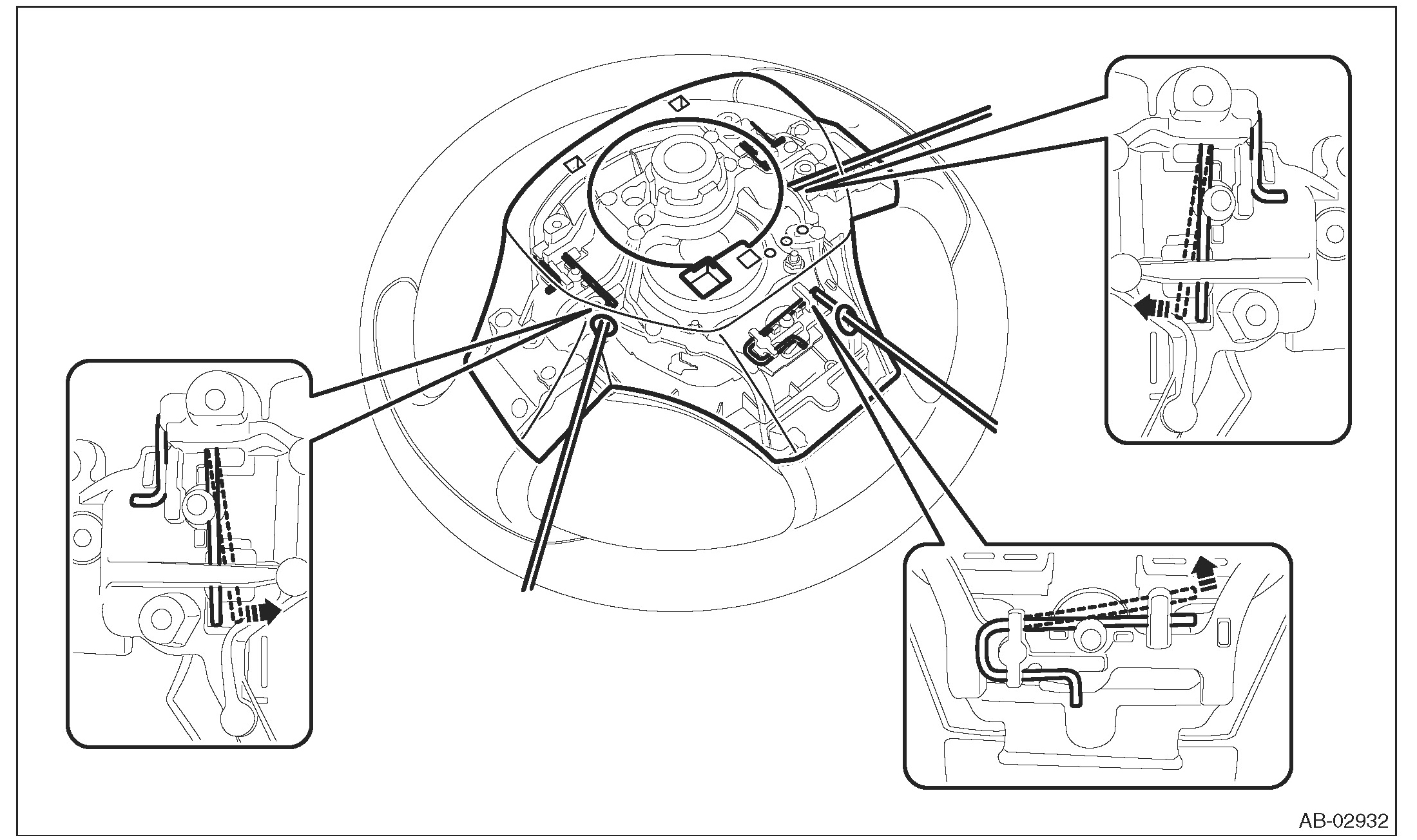

(1) Push in the snap pin using a hexagon wrench or equivalent wrapped with a protective tape to disengage the locks (3 locations).

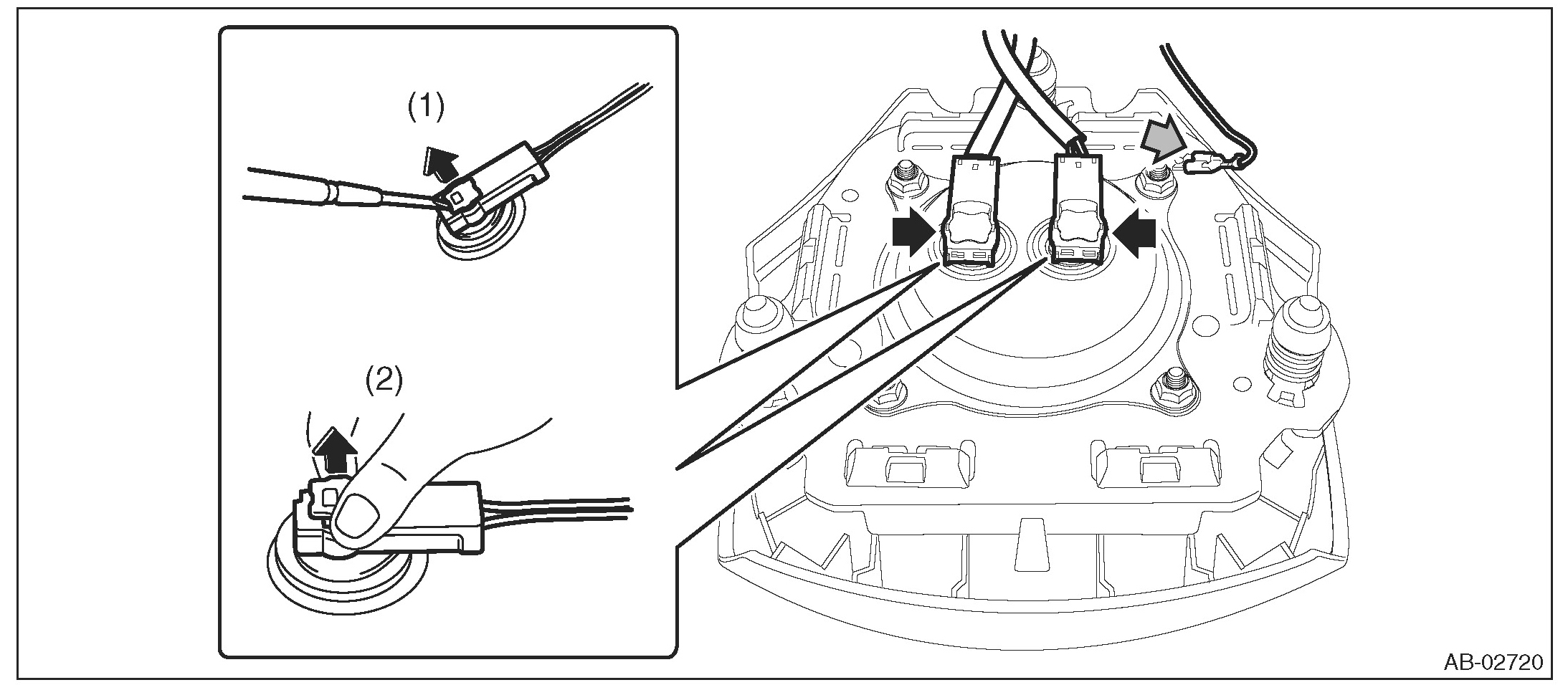

(2) Disconnect the horn harness and airbag connector and remove the airbag module assembly.





4) Remove the steering wheel.

CAUTION:
^ Always use the steering wheel puller for removal to avoid deforming the steering wheel.
^ If the steering wheel has been removed, make sure that the roll connector is not turned from the original position.

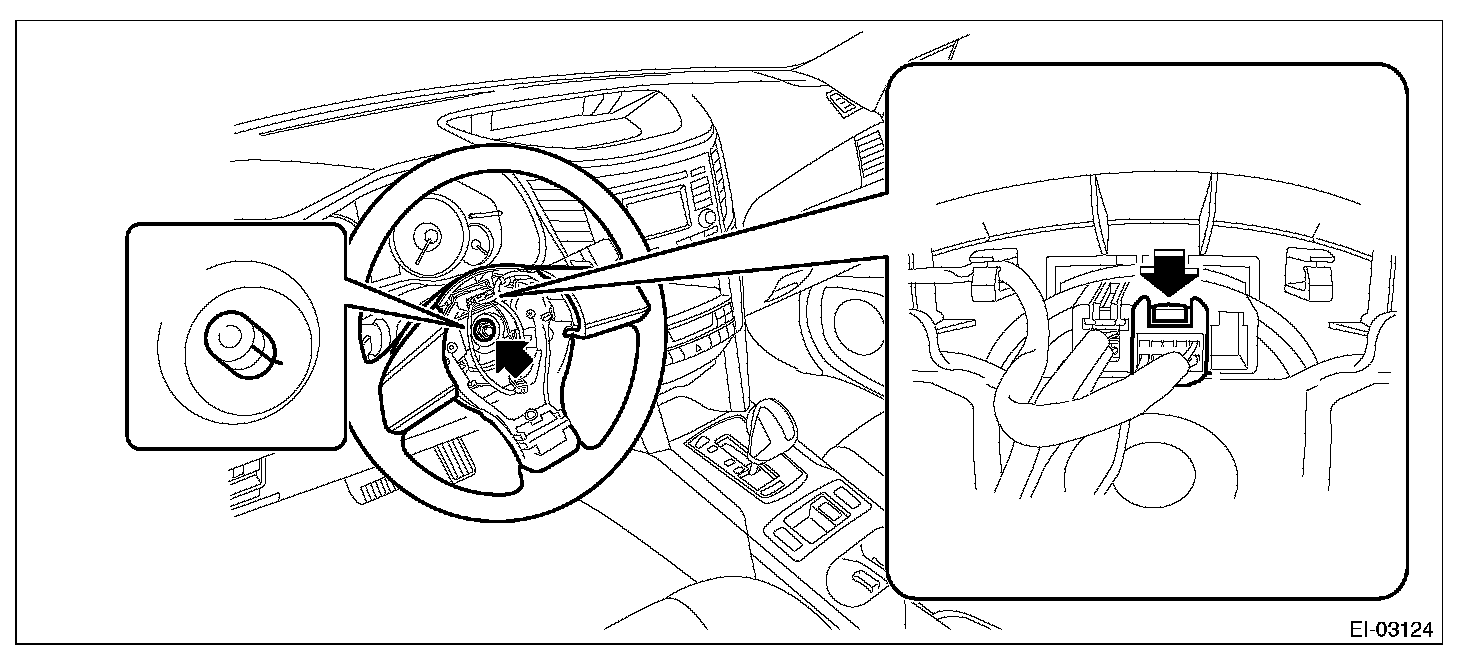

(1) Disconnect the connector and remove the nut.
(2) Put alignment marks and remove the steering wheel.
