Assembly

Rear Trailing Link

ASSEMBLY

TRAILING LINK BUSHING

1) Before assembly, inspect the following items and replace any faulty part with a new one.
^ Perform visual check for damage or bend on the trailing link.
^ Visually check the bushing for abnormal cracks, fatigue or damage.
2) Using the ST-A and ST-B, press-fit the bushing.

CAUTION:
Make sure to press the bushing straight in.

PREPARATION TOOL:
ST-A: INSTALLER (899874100)
ST-B: PRESS (499755602)





REAR AXLE HOUSING BUSHING

1) Before assembly, inspect the following items and replace any faulty part with a new one.
^ Perform visual check for damage or bend on the trailing link.
^ Visually check the bushing for abnormal cracks, fatigue or damage.

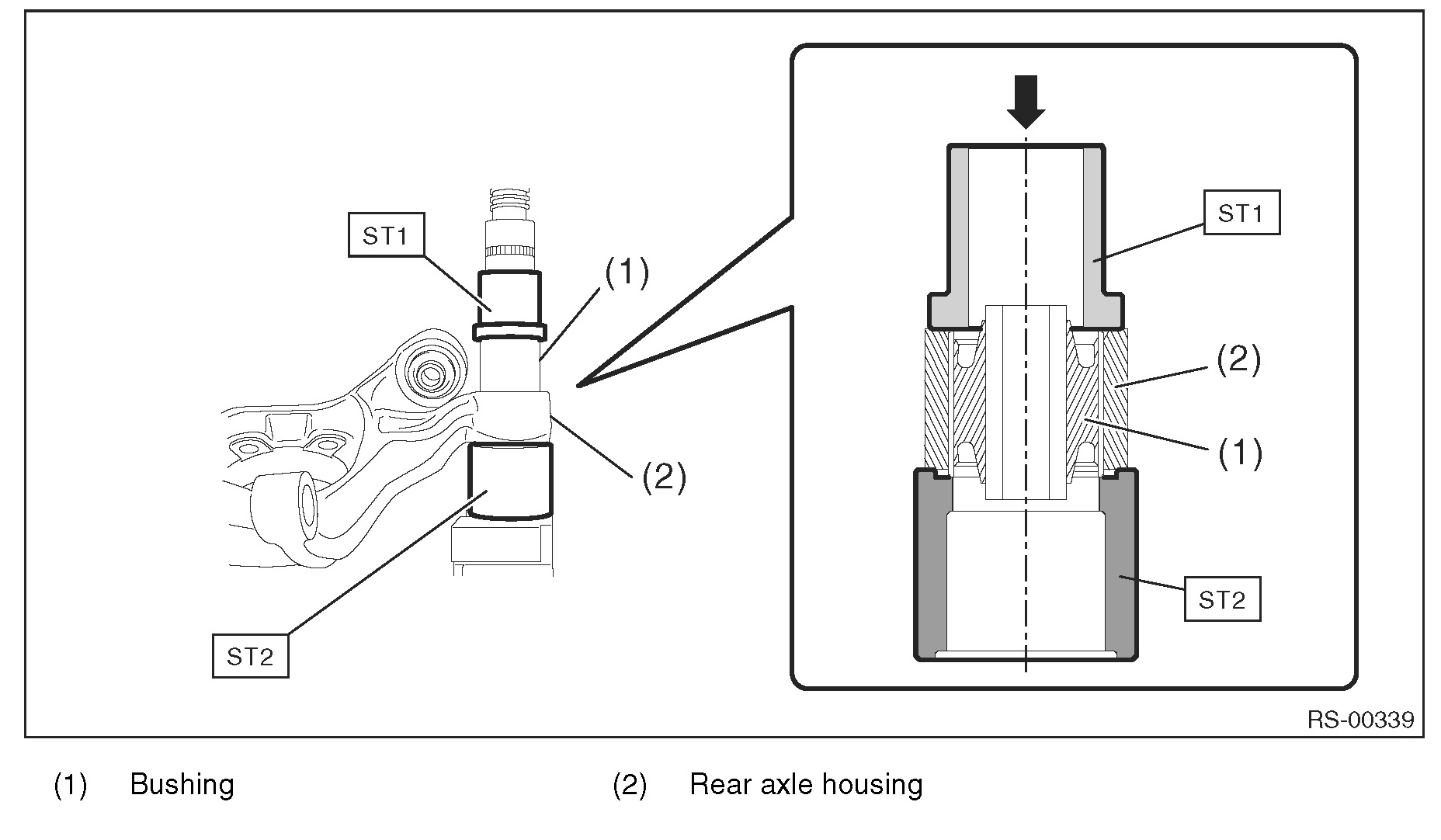

2) Press-fit the bushing using ST and the hydraulic press.

CAUTION:
Make sure to press the bushing straight in.

PREPARATION TOOL:
ST1: BUSHING REMOVER (20099FG000)
ST2: INSTALLER & REMOVER (BASE) (20099PA010)
