Installation

MT Gear Shift Lever

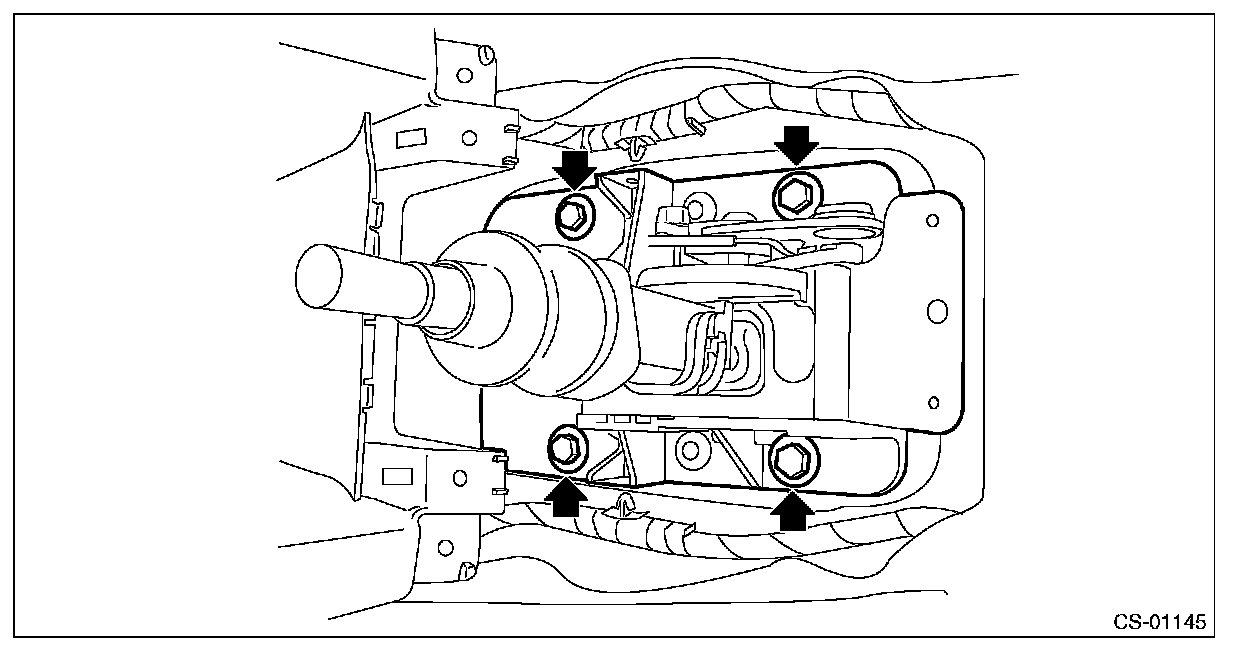

1) Install the gear shift lever assembly.

Tightening torque:
18 Nm (1.8 kgf-m, 13.3 ft-lb)





2) Lift up the vehicle.
3) Install the cover cable assembly.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)

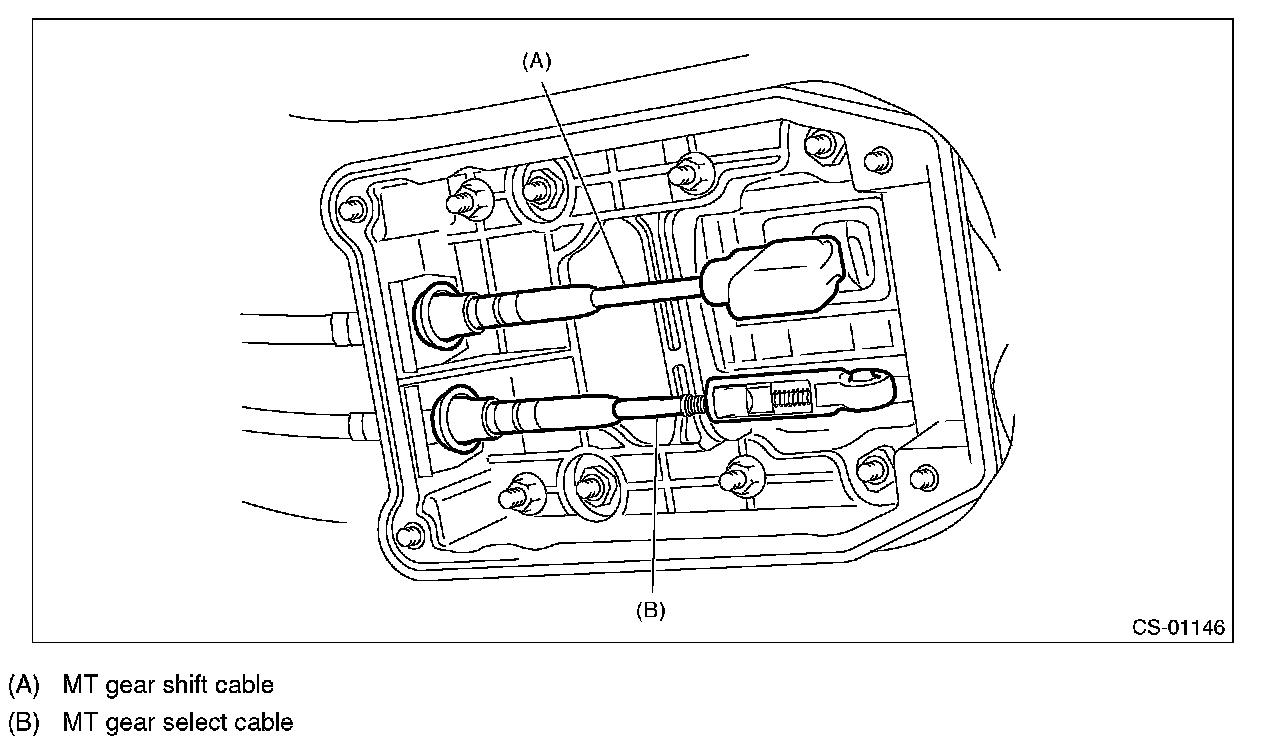

4) Connect the MT gear shift cable and MT gear select cable.

CAUTION:
^ Be careful not to deform the cable inner.
^ Do not twist the cable inner excessively.

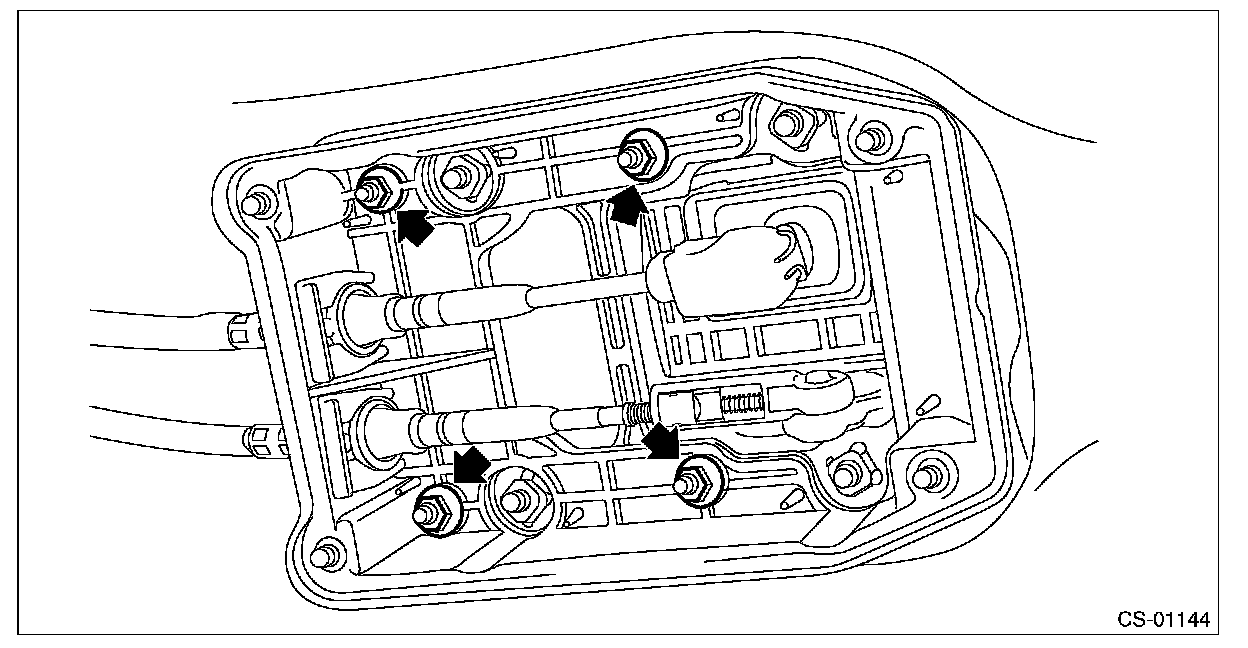

5) Install the plate cable assembly.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)

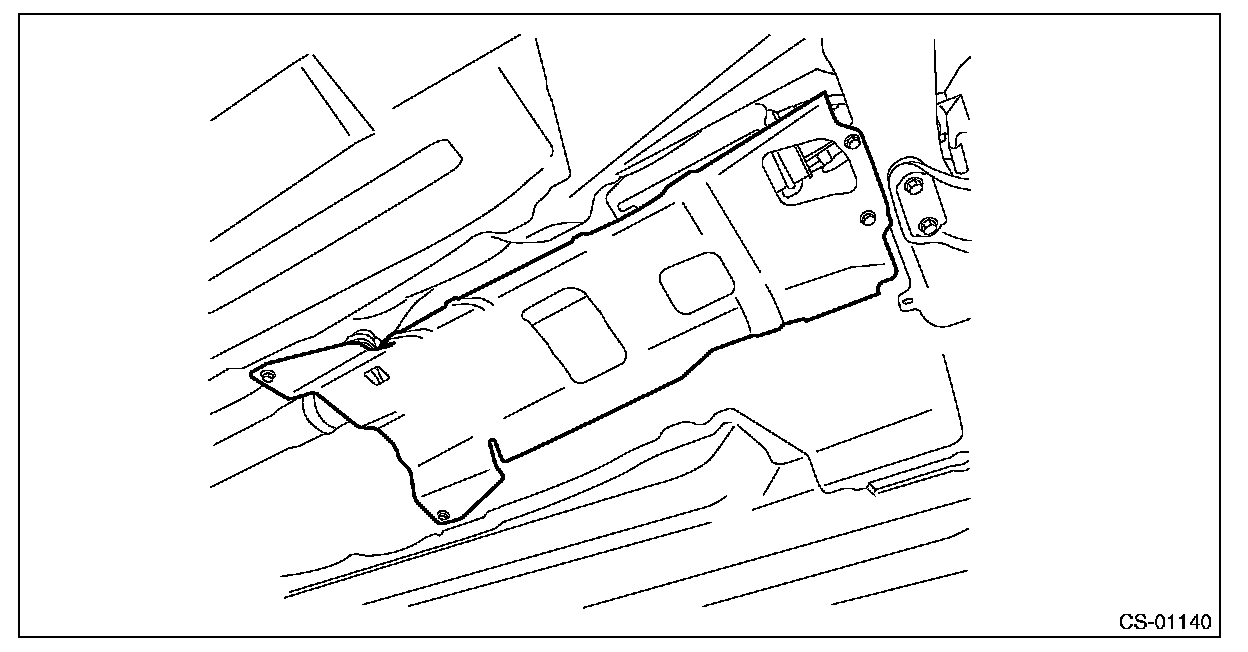

6) Install the heat shield cover.

Tightening torque:
18 Nm (1.8 kgf-m, 13.3 ft-lb)





7) Install the center exhaust pipe and rear exhaust pipe. (non-turbo model)
8) Install the center exhaust pipe (rear) and rear exhaust pipe. (turbo model)
9) Lower the vehicle.
10) Install the console front cover assembly and the console box.
11) Install the gear shift knob.
12) Make sure the gears can be shifted accurately into each gear. Adjust the MT gear select cable, if the gears cannot be shifted correctly.
