Brakes and Traction Control: Description and Operation



General Description

CAUTION

SRS AIRBAG SYSTEM

The airbag system wiring harness is routed near the main relay and ECM.

CAUTION:
^ Do not use electrical test equipment on wiring harness and connector circuits of the airbag system.
^ Be careful not to damage the airbag system wiring harness.

INSPECTION

Before performing diagnosis, check the following items which might affect the brake vacuum control.

BATTERY

Measure the battery voltage and check electrolyte.

Standard voltage: 12 V or more
Specific gravity: Above 1.260

BRAKE VACUUM HOSE

Make sure that the brake vacuum hose is not cracked or loose.

PREPARATION TOOL

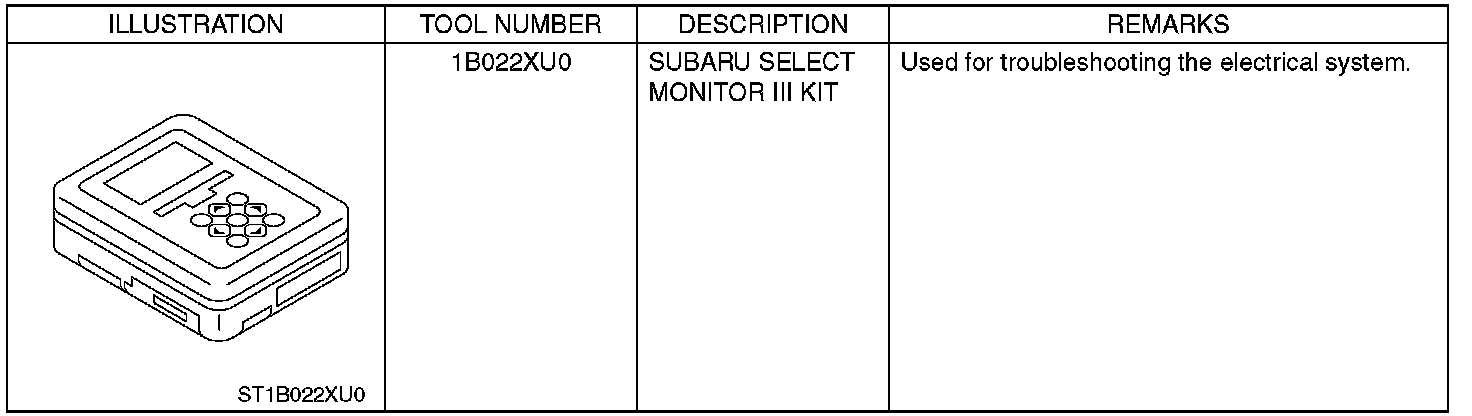

SPECIAL TOOL





GENERAL TOOL
