Backup Lamp: Testing and Inspection

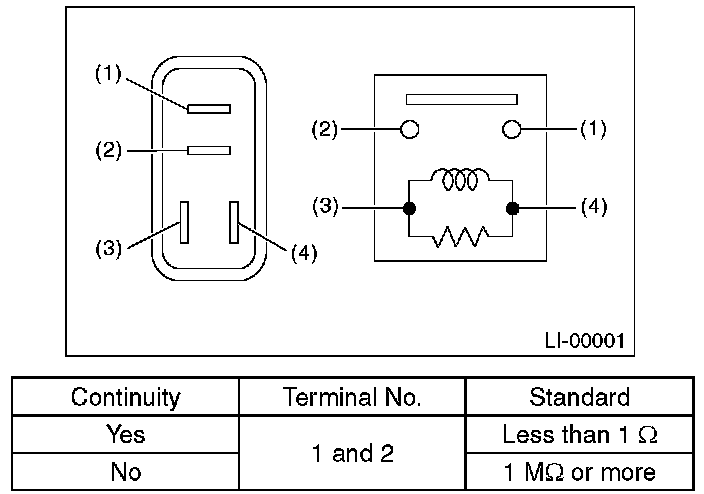

Back-up Light SystemINSPECTIONBACK-UP LIGHT RELAYMeasure the resistance between headlight relay terminals when connecting terminal No. 4 to the battery positive terminal and terminal No. 3 to the battery ground terminal.
