Headlamp: Service and Repair
Headlight AssemblyREMOVAL 1.
Disconnect the ground cable from battery.
2.

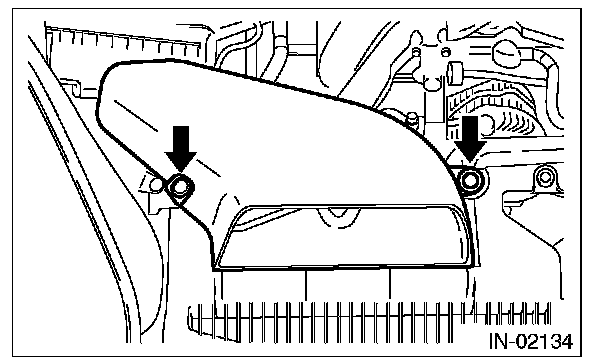

Remove the air intake duct.
3.
Remove the front bumper.
4.
Remove the support plate.
5.
Remove the five bolts, then remove the headlight assembly.
6.
Disconnect the connector and then detach the rear headlight assembly.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
