Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR

REMOVAL

1. Remove the collector cover.
2. Disconnect the ground cable from battery.

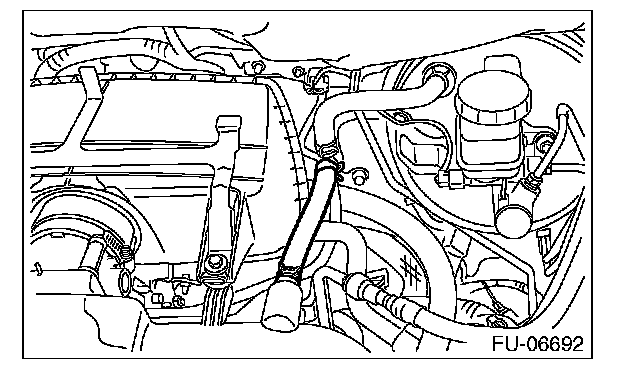

3. Disconnect the brake booster vacuum hose from the intake manifold.

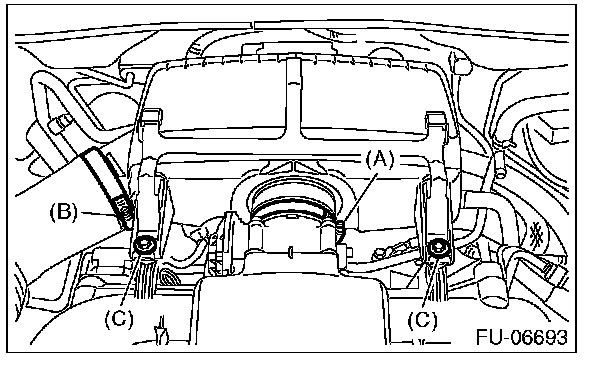

4. Loosen the clamp (A) which connects air intake chamber to throttle body.
5. Loosen the clamp (B) which connects intake boot to air intake chamber.
6. Loosen the bolt (C) which secures air intake chamber and collector cover bracket to the stay.






7. Remove the air intake chamber, and move it to the left side wheel apron.






8. Remove the throttle body from the intake manifold.

NOTE: Do not disconnect the inlet and outlet hoses of engine coolant.

9. Remove the service hole plug.

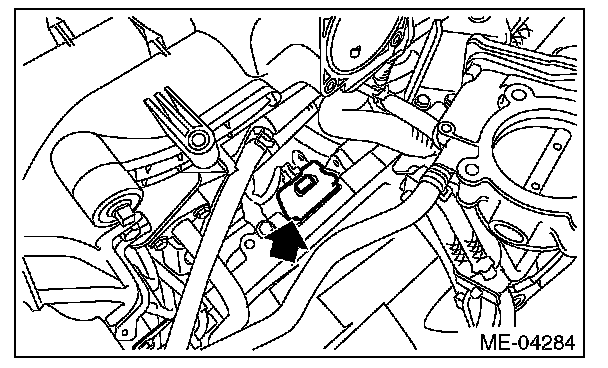

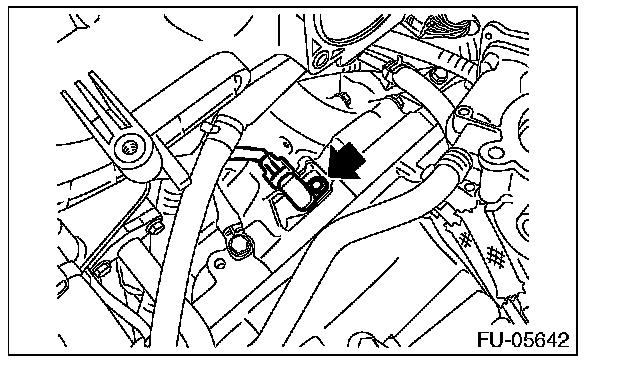

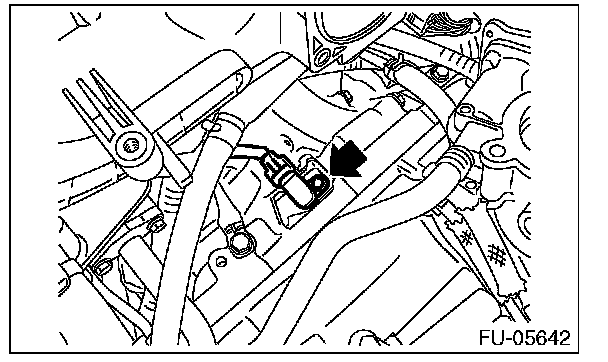

10. Remove the crankshaft position sensor.






11. Disconnect the connector from the crankshaft position sensor.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)






Tightening torque:

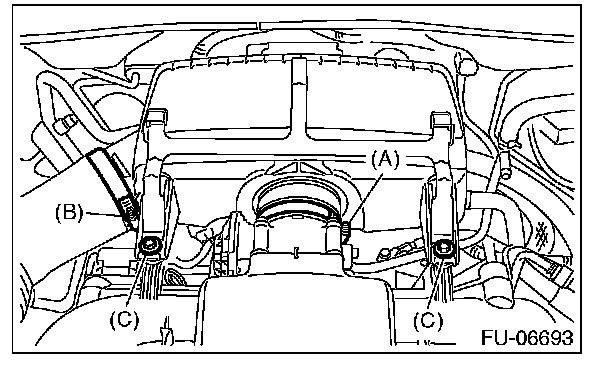

Clamp (A), (B) : 3 N.m (0.3 kgf-m, 2.2 ft-lb)
Bolt (C) : 6.5 N.m (0.7 kgf-m, 4.8 ft-lb)
