Crankshaft Main Bearing
Crankshaft Main Bearing Bolts
For Main Bearing Cap Torque & Sequence,

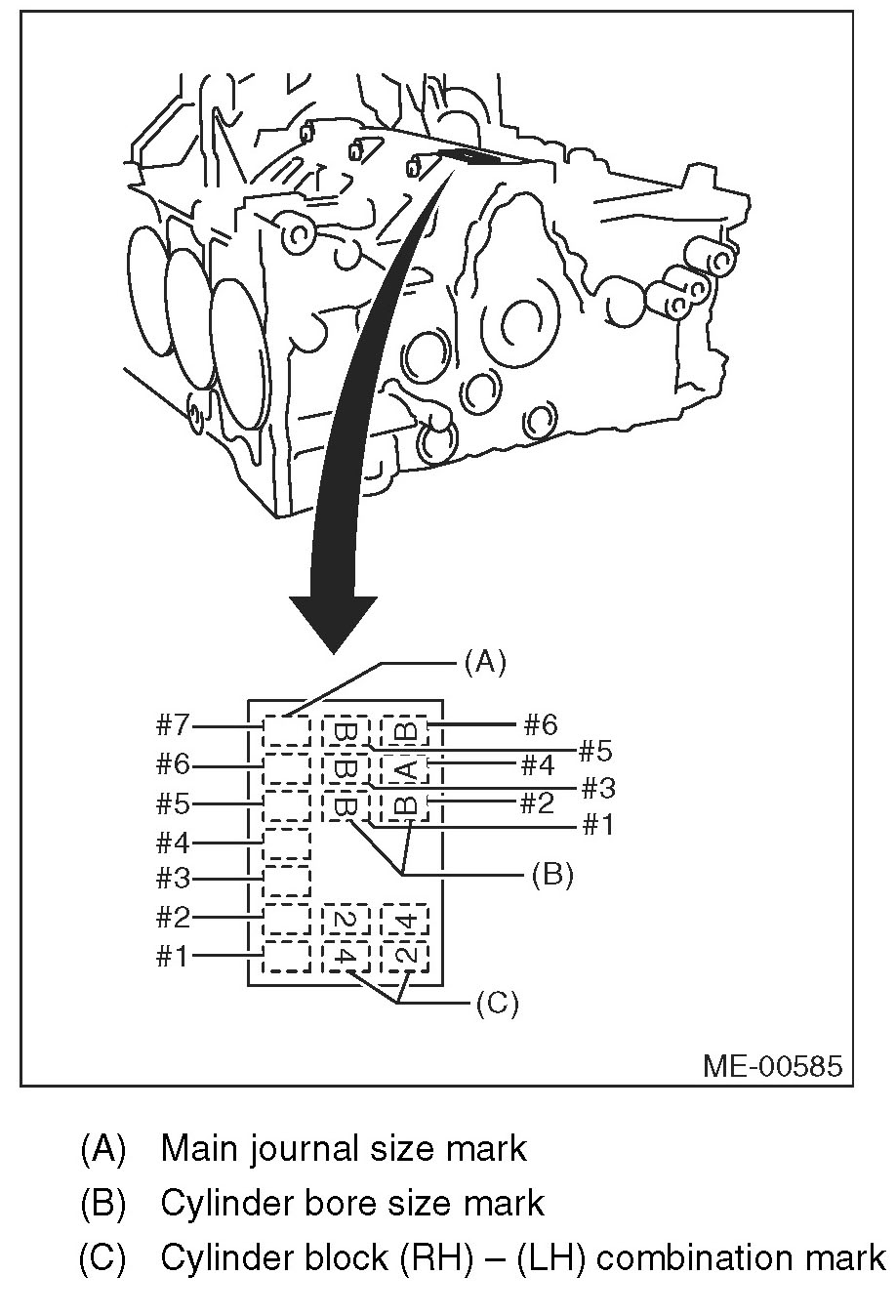

Service and RepairMain Bearing Size Codes
Crankshaft thrust clearance
0.030 - 0.115 mm (0.0012 - 0.0045 in)
Crankshaft oil clearance
0.010 - 0.030 mm (0.0004 - 0.0012 in)

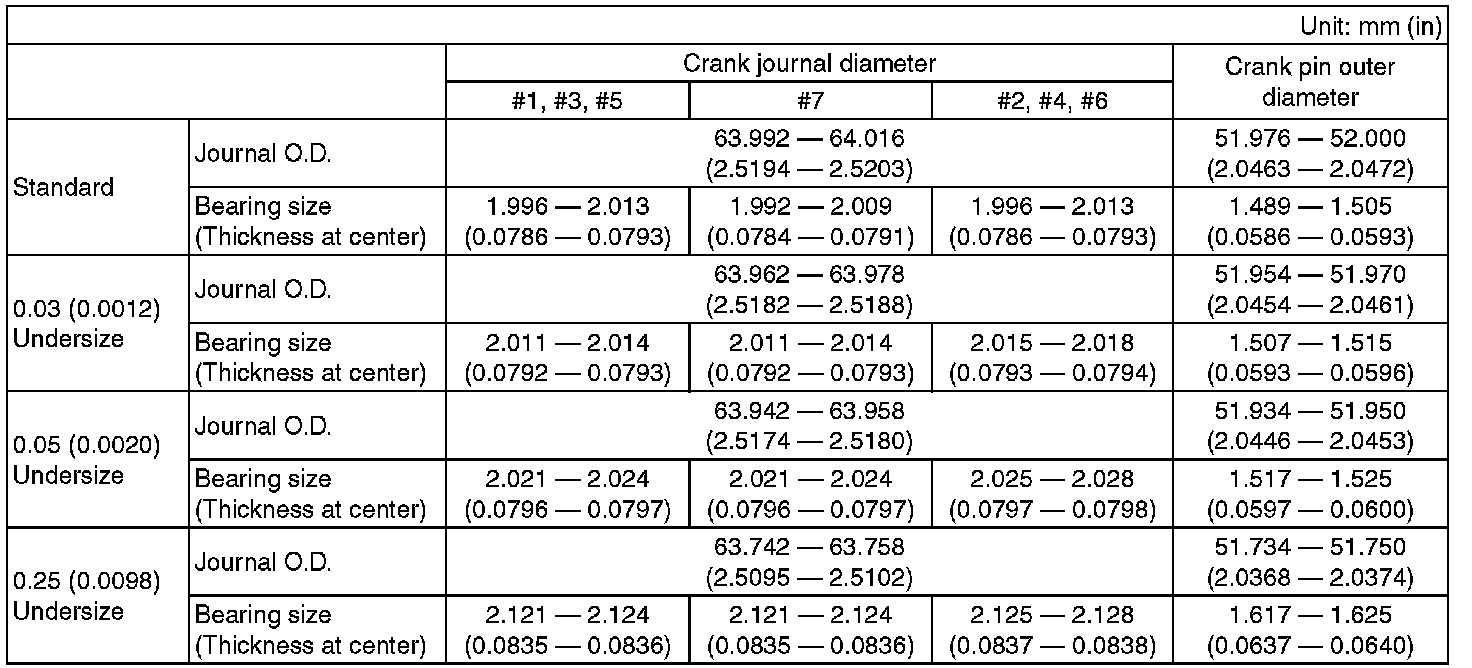

Crankshaft Dimensions
