Installation
Front Vehicle Speed SensorINSTALLATION

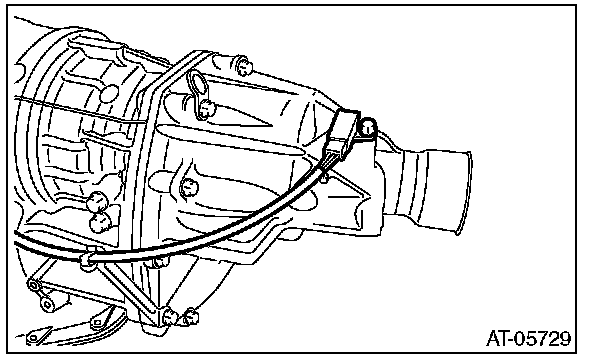

1) Install the front vehicle speed sensor.
Tightening torque:
7 Nm (0.7 kgf-m, 5.2 ft-lb)
2) Connect the front vehicle speed sensor connector.
3) Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:
THREE BOND 1217B (Part No. K0877YA020) or equivalent
4) Install the oil pan by equally tightening the bolts.
Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)
5) Install the center differential carrier.
6) Install the extension case.
Tightening torque:
25 Nm (2.5 kgf-m, 18.4 ft-lb)
7) Connect the rear vehicle speed sensor connector.
8) Install the transmission assembly to the vehicle.
9) Pour ATF from the oil charge pipe. A/T Fluid Replacement
10) Check the level and leaks of ATF. A/T Fluid Inspection
