Overhaul

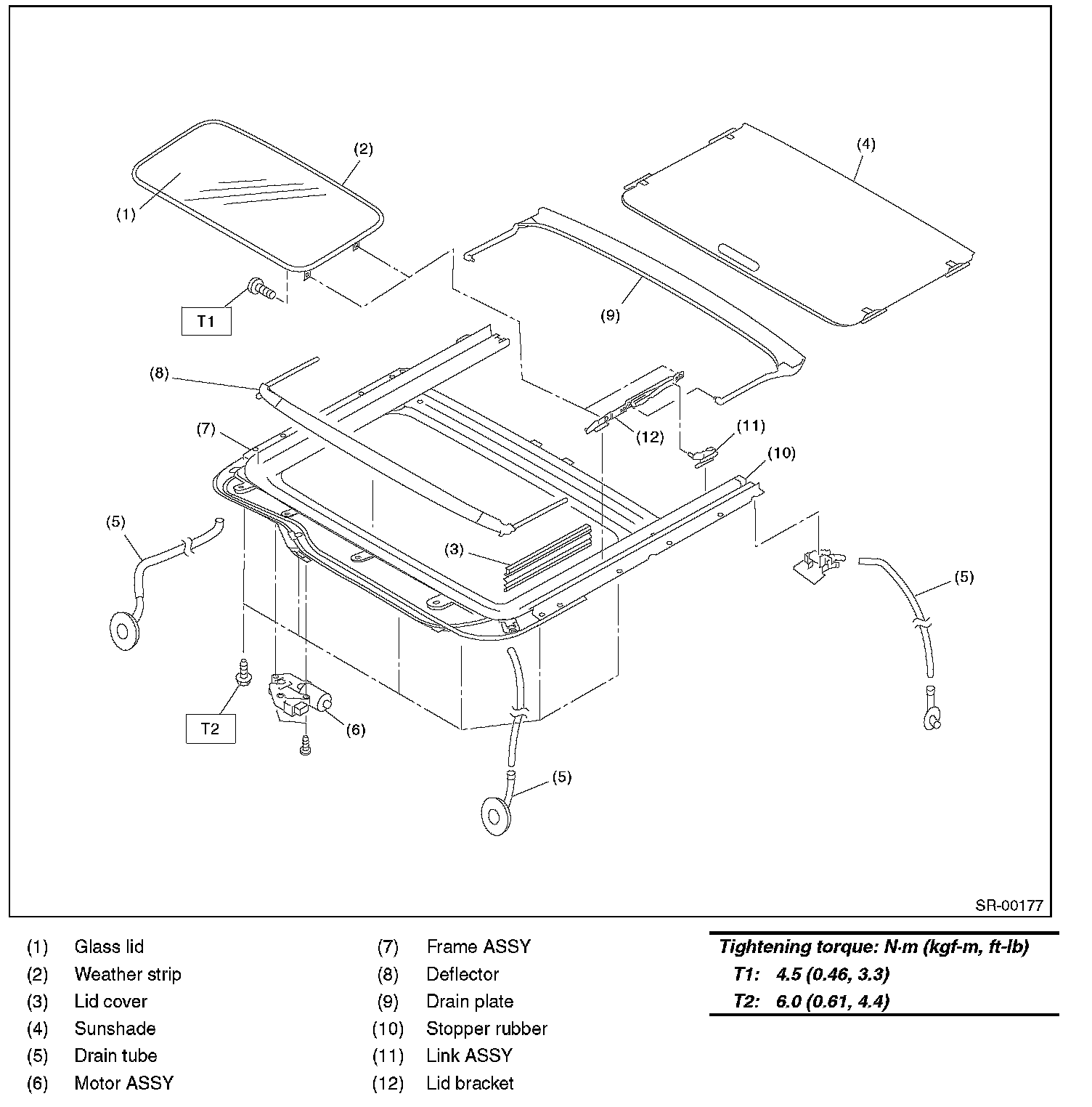

Sunroof Assembly







DISASSEMBLY

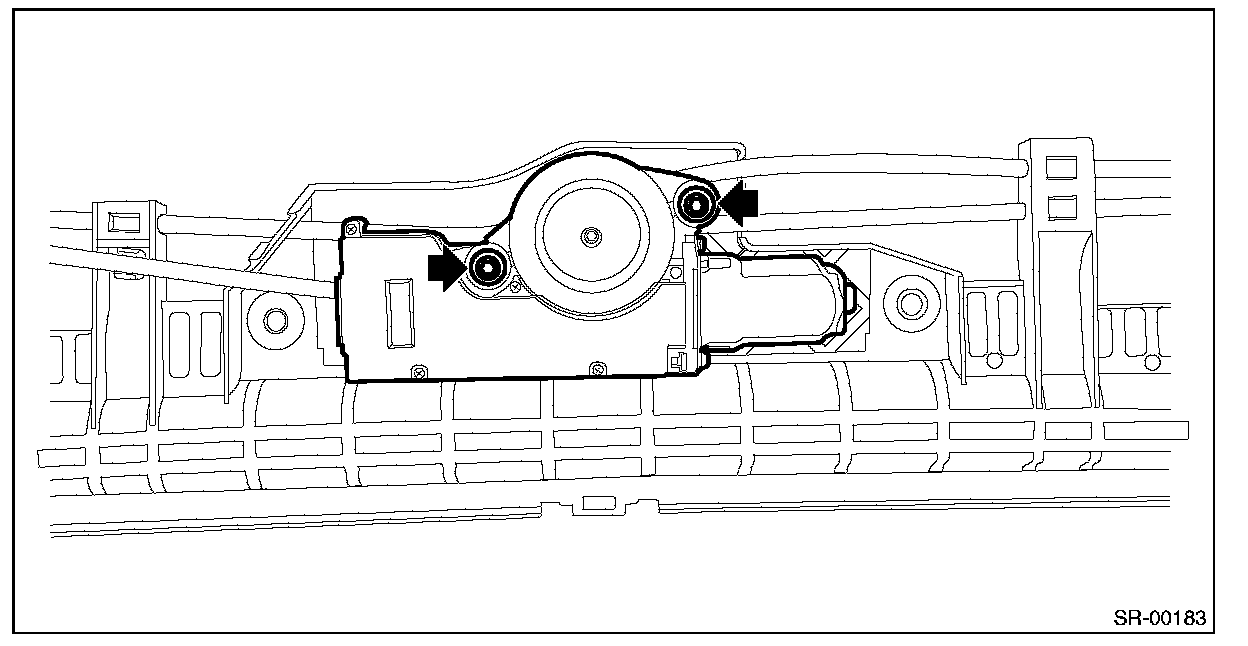

1. Remove the bolts and then remove the sunroof motor.

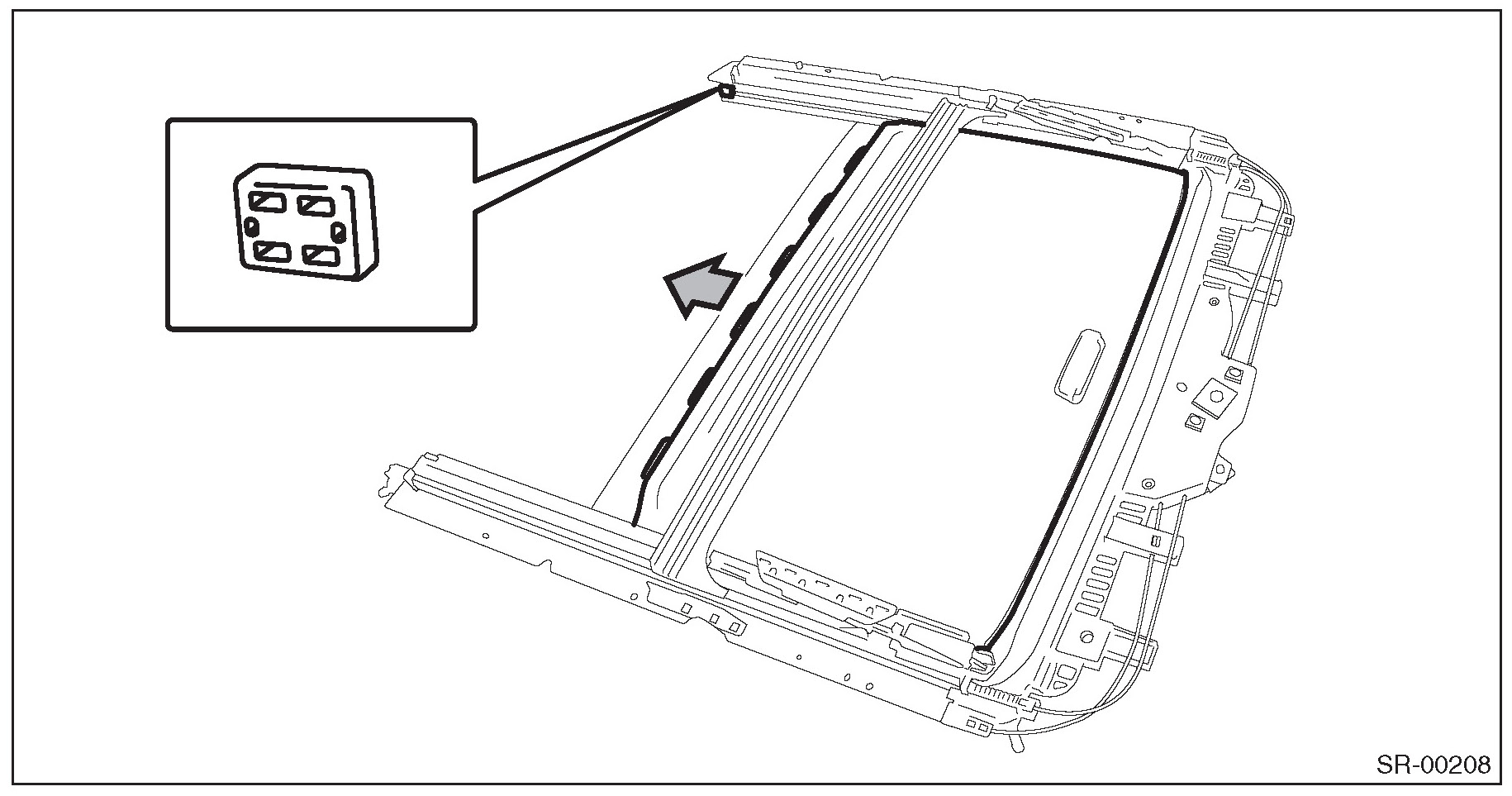

2. Remove the stopper rubber and pull out the sunshade from sunroof frame.







3. Remove the sunroof cable assembly.

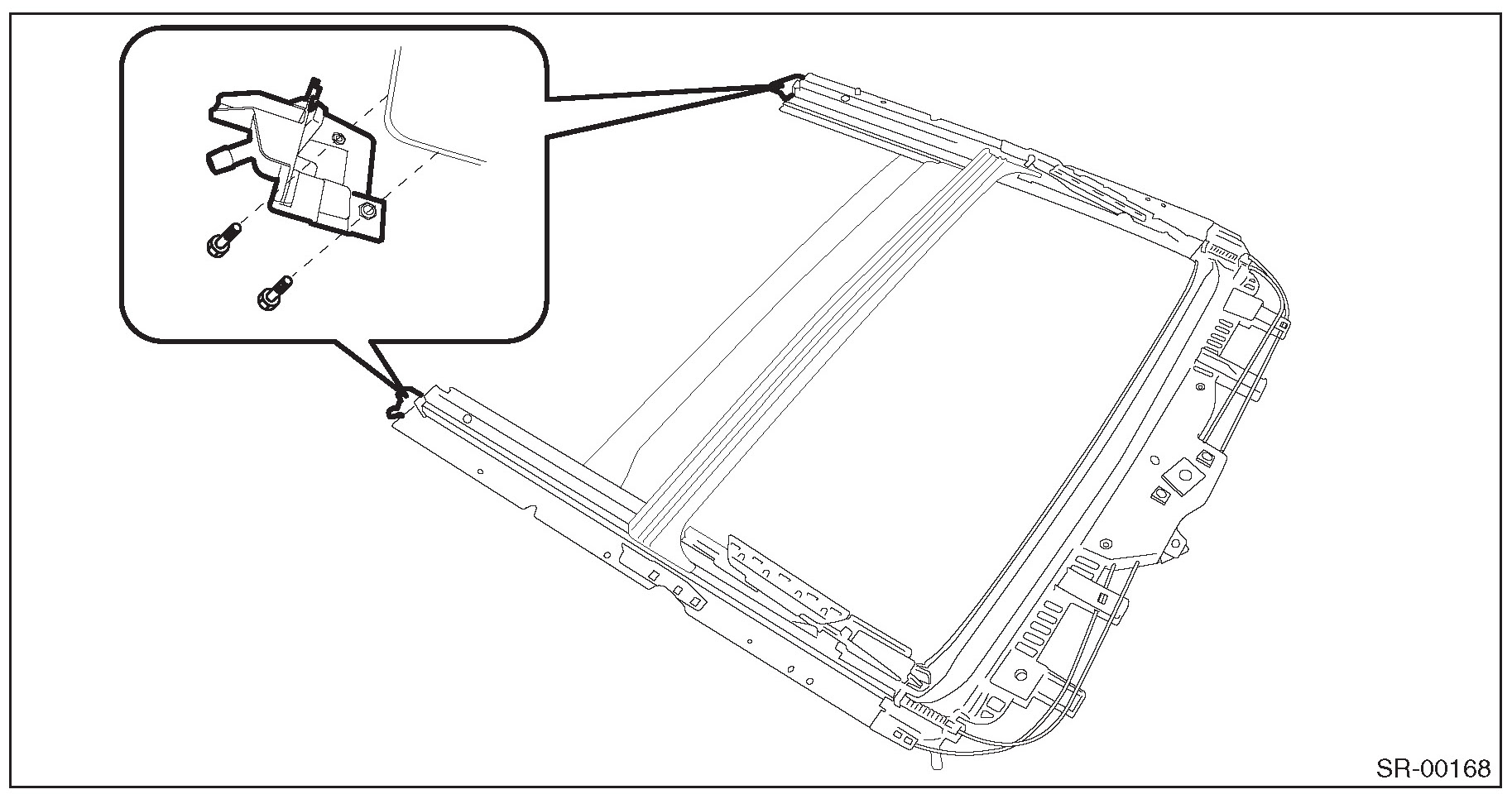

1. Remove the screw and remove the drain holder.

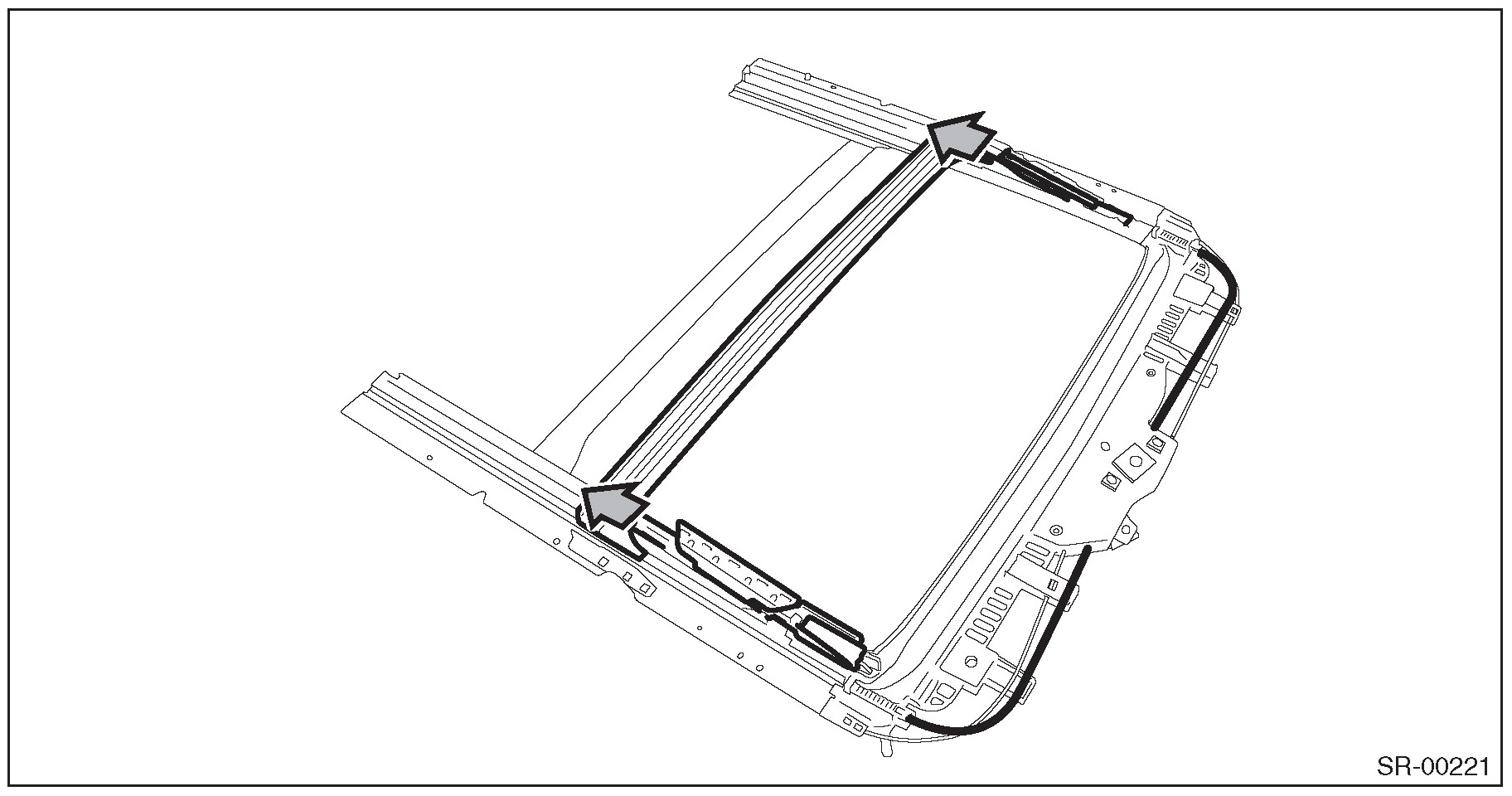

2. Pull out the sunroof cable assembly from the frame roof assembly.







ASSEMBLY

Install each part in the reverse order of removal.
