Subaru
>>
2013
>>
Outback F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

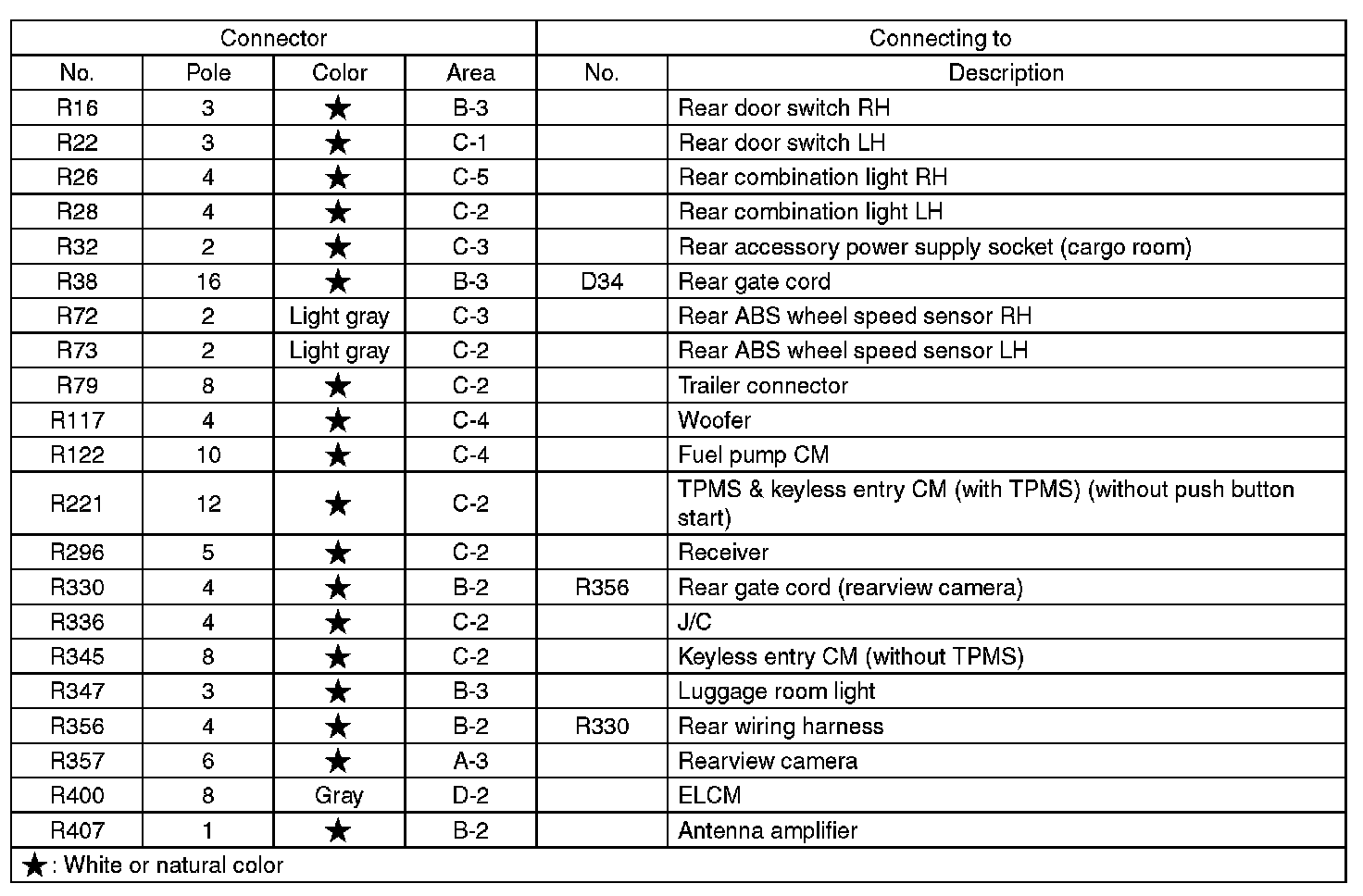

R16-R407 & D34-D139 & AB31-AB34
R16-R407 & D34-D139 & AB31-AB34
REAR WIRING HARNESS AND REAR GATE CORD
