E/G(NAP)-10

Engine Electrical System

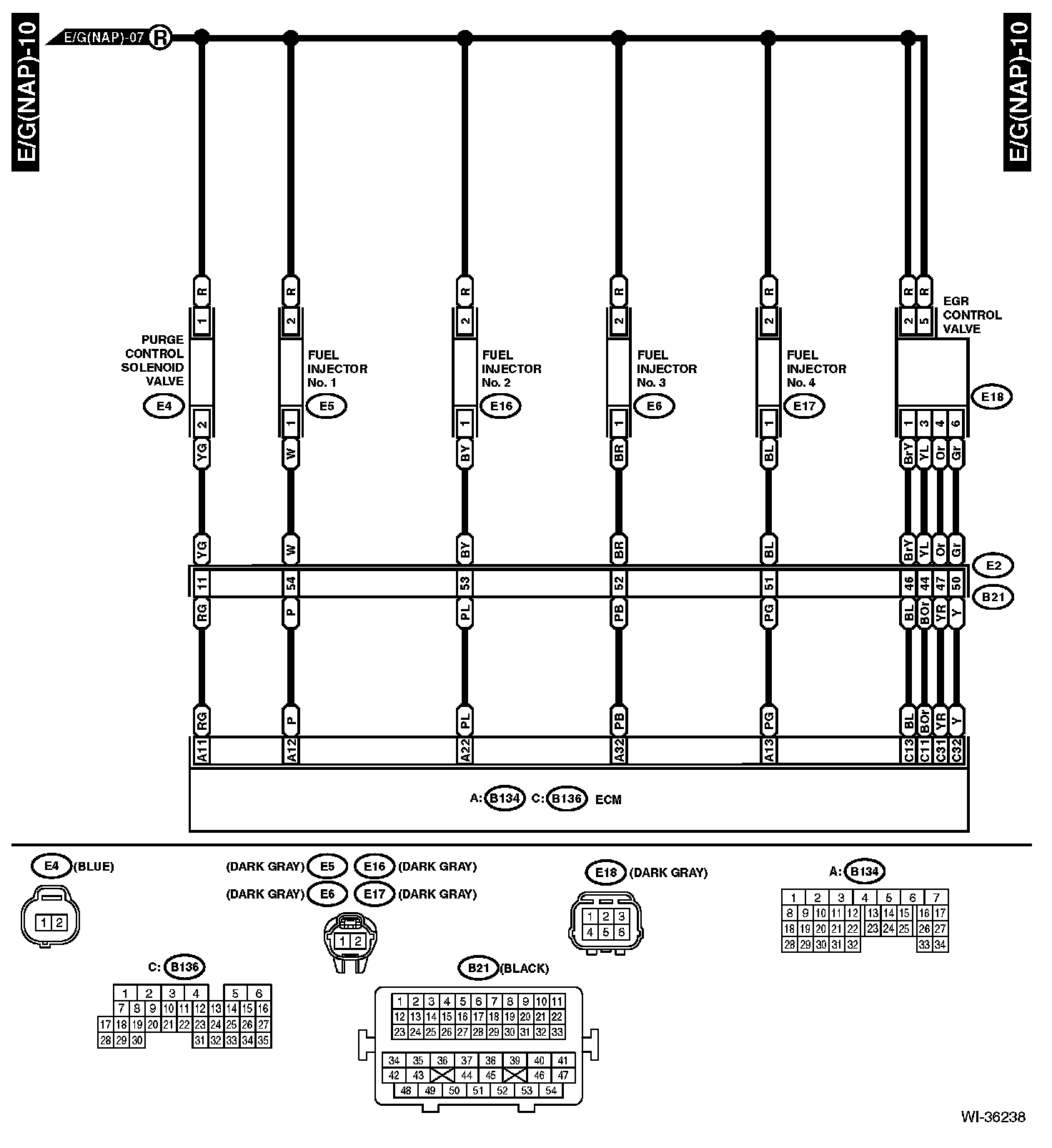

WIRING DIAGRAM

2.5 L MODEL (WITH PUSH BUTTON START)







Next Diagram E/G(NAP)-11

Previous Diagram E/G(NAP)-09

Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
