Power Window Switch: Service and Repair
Power Window Control SwitchREMOVAL

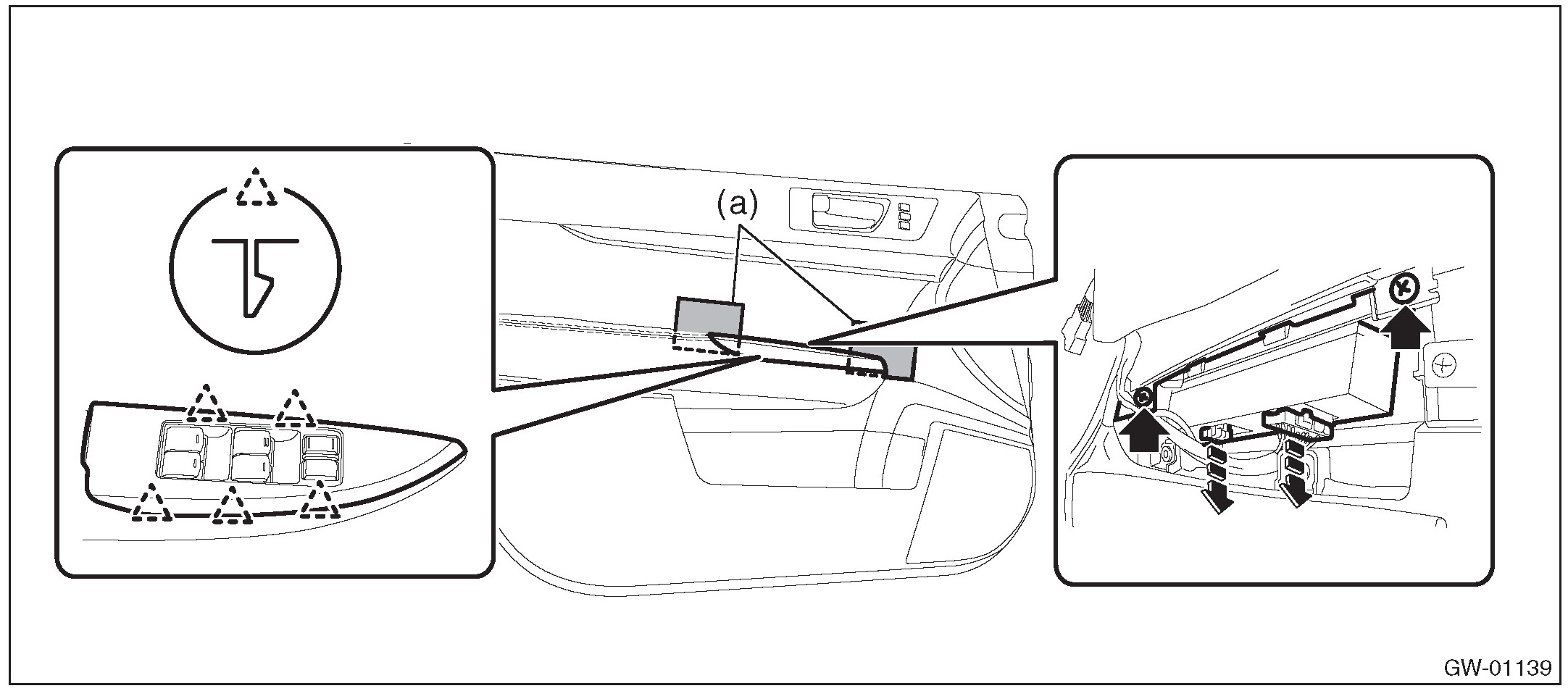

1. MAIN SWITCH
1. Remove the front door trim.
2. Remove the power window switch panel.
CAUTION: Do not damage the door trim with the switch panel.
1. Insert a sheet of protective paper (a) between switch panel and door trim.
2. Remove the screws and disconnect the connector.
3. Disconnect the claws and then remove the power window switch panel.
4. Remove the screws and remove the power window main switch.

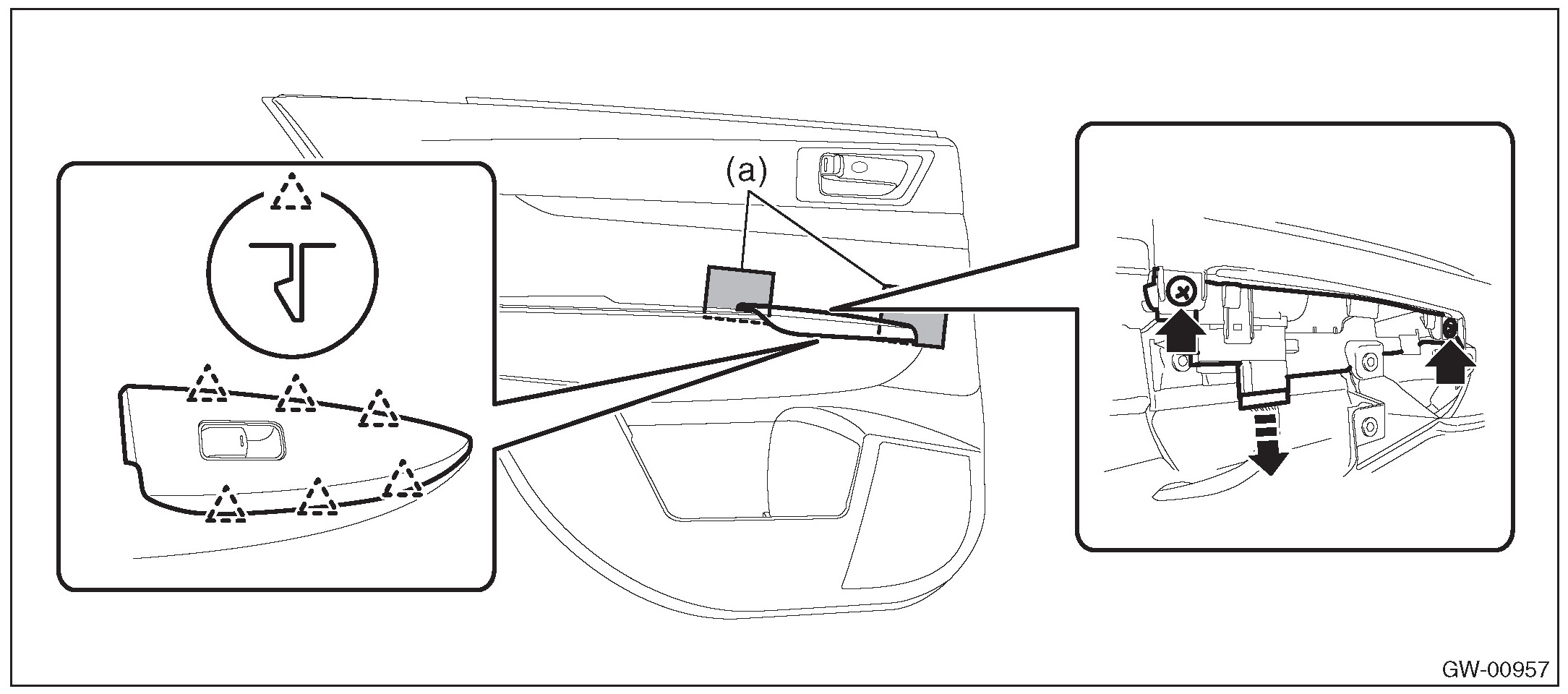

2. SUB-SWITCH
1. Remove the rear door trim.
2. Remove the power window switch panel.
CAUTION: Do not damage the door trim with the switch panel.
1. Insert a sheet of protective paper (a) between switch panel and door trim.
2. Remove the screws and disconnect the connector.
3. Disconnect the claws and then remove the power window switch panel.

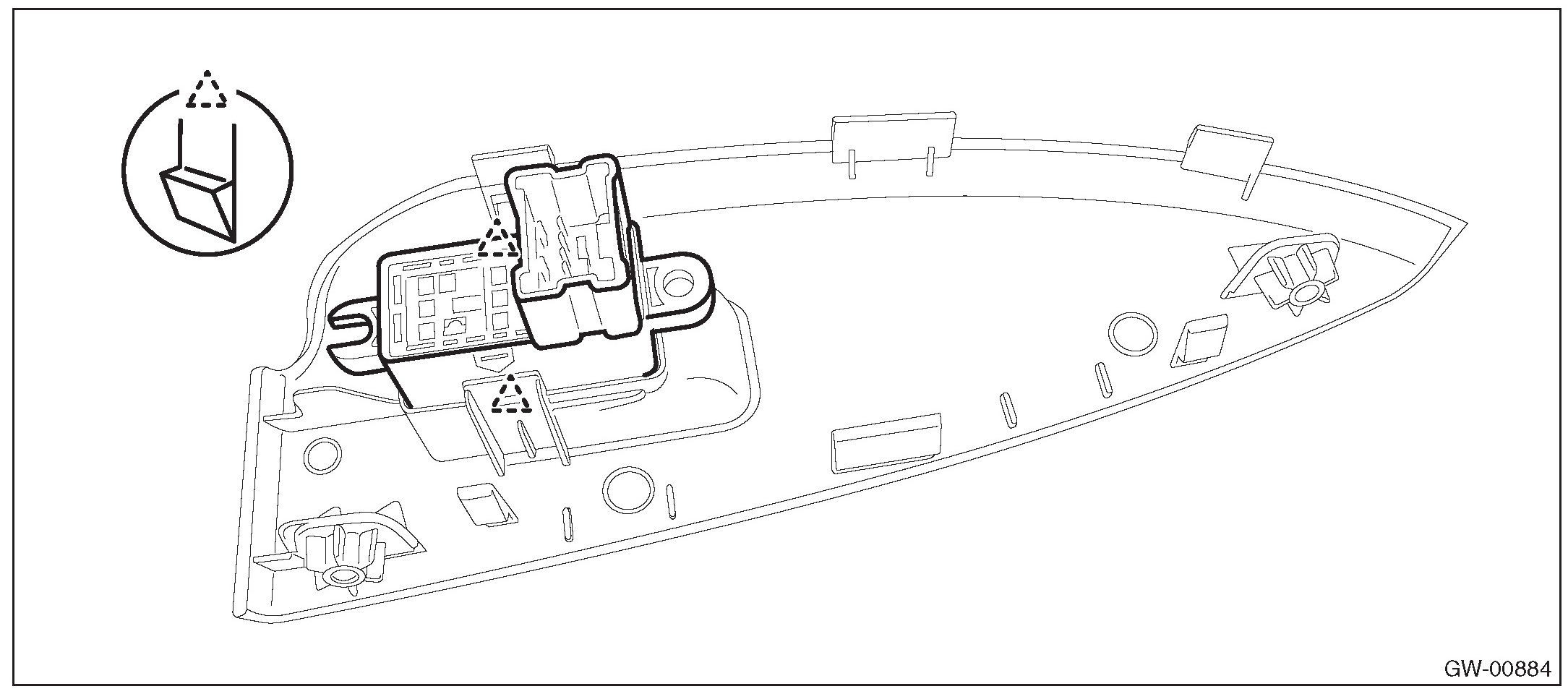

3. Disconnect the claws and then remove the power window sub-switch.
INSTALLATION
CAUTION:
- After installation of main switch, always perform the initial setting. (model with driver's side AUTO UP function)
Failure to do so may cause the improper activation of auto-reverse operation for pinching hazard prevention.
- Use protective paper to avoid damage to the door trim.
1. Install each part in the reverse order of removal.
2. Perform initial setting operation (reset operation A).
