EGR Backpressure Transducer: Testing and Inspection

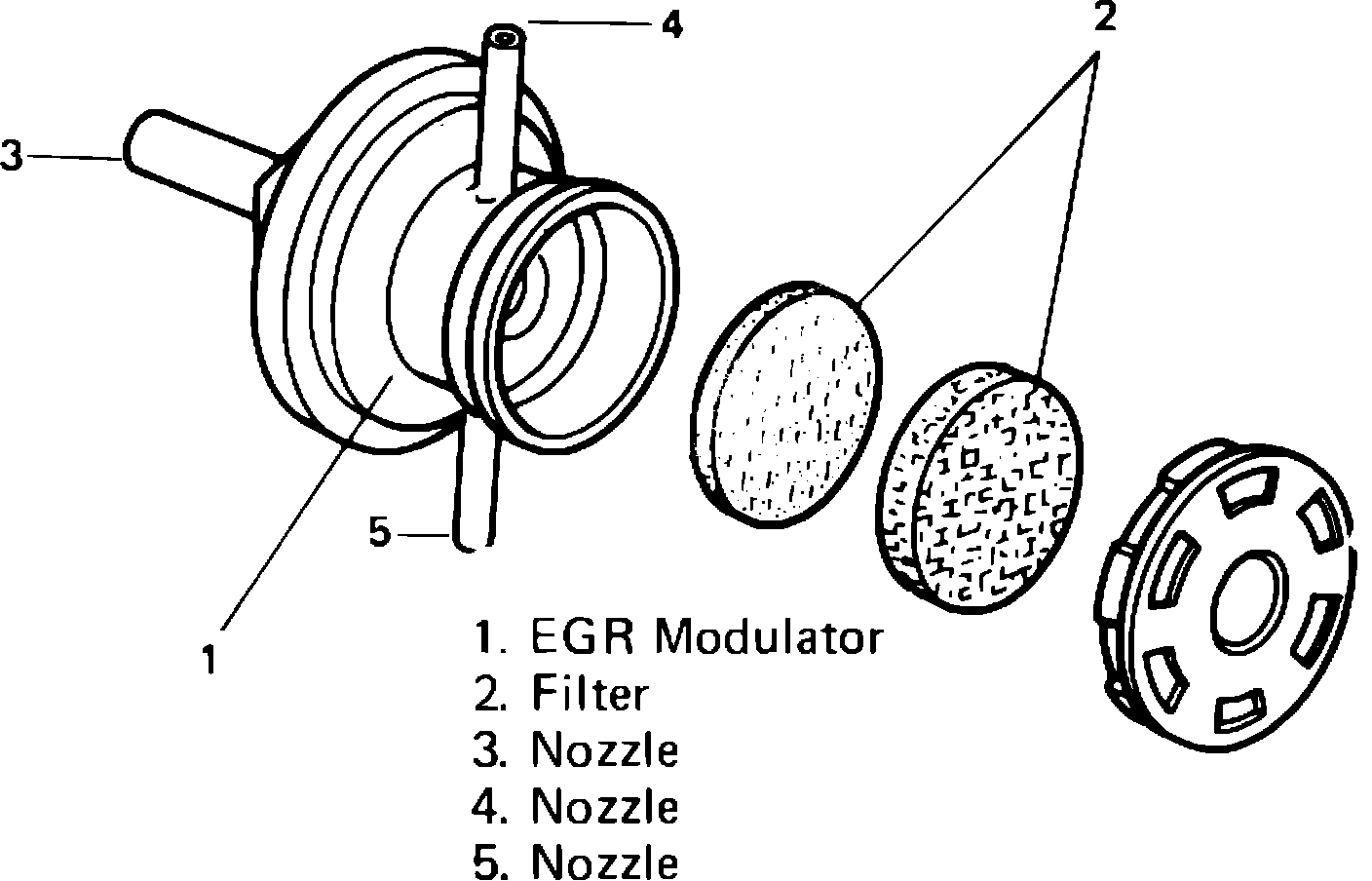

Fig. 11 Exploded view of EGR modulator:





1. Inspect filter for dirt or damage, Fig. 11. Clean filter using compressed air.
2. Remove EGR modulator and plug nozzle using finger. Blow air through another nozzle and check that air passes through filter side freely.
3. Connect a suitable vacuum pump gauge to nozzle 1, then plug nozzle 2 with finger. Blow air into nozzle 3, operate vacuum pump gauge and check that vacuum is applied to modulator.
4. Reconnect vacuum hoses.
