Rear Wheel Alignment

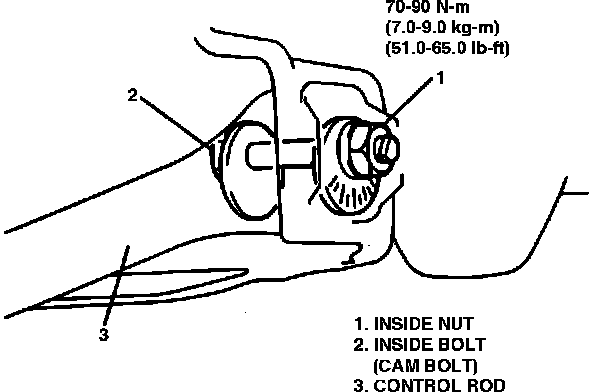

Fig. 4 Adjusting Rear Toe Setting:

Rear wheel toe is the only adjustable angle. If camber is not within specifications, inspect for worn or damaged rear suspension components.

Toe Adjustment

1. Loosen right and left control rod inside nuts, Fig. 4.
2. Adjust toe to specification by turning right and left control rod inside bolts by the same amount.
3. After adjustment, torque right and left inside nuts to 51-65 ft. lbs., while holding cam bolt with another wrench to prevent it from turning.
