Engine Temperature Sensor: Testing and Inspection
Checking Water Temperature Sensor:

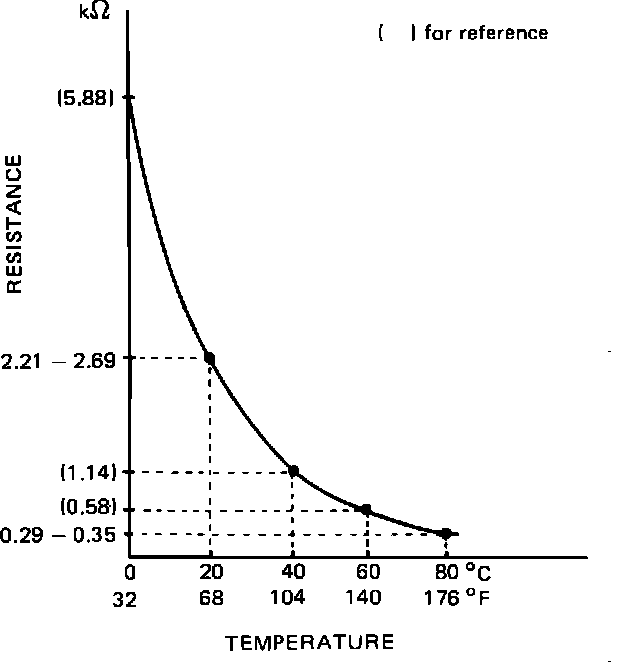

WTS Temperature Vs. Resistance Specification:

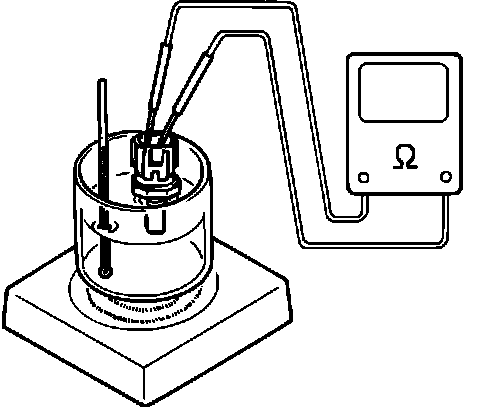

Immerse temperature sensing part of WTS in water and measure resistance between sensor terminals while heating water gradually.
If measured resistance doesn't show such characteristic as shown below, replace WTS.
