Throttle Position Sensor: Service and Repair
REMOVAL -
Disconnect battery negative cable at battery.
-
Disconnect coupler from
TPS.
-
Remove
TPS from throttle body.
Installing TPS:
INSTALLATION -

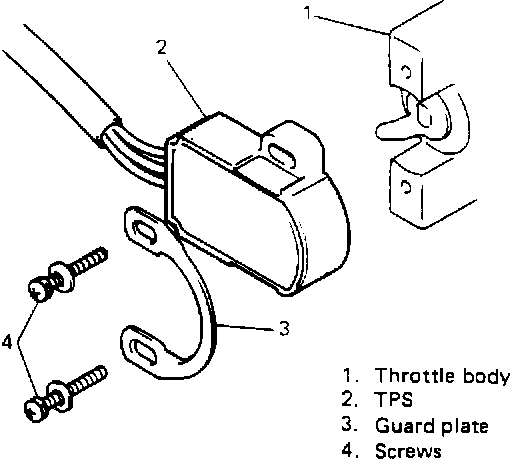

Install
TPS and guard plate to throttle body. Then hand-tighten TPS screws.
-
Adjust installation angle of
TPS.
-
Connect coupler to
TPS securely.
-
Connect battery negative cable to battery.
