Ignition Cable: Service and Repair
-
Remove high tension cord at ignition coil while gripping its cap.
Removing Ignition Wires:
-
Pull out high tension cords from
spark plugs while gripping each cap.
-
Remove high tension cord clamp from cylinder head cover.

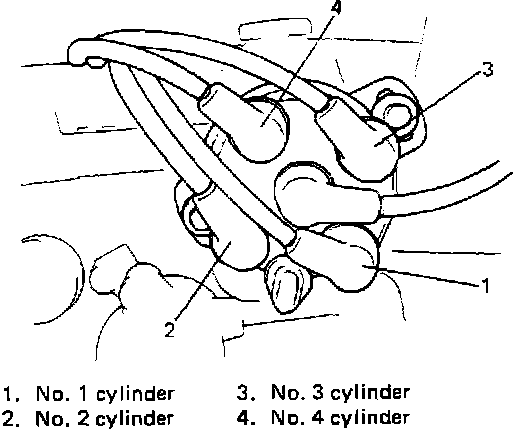

Ignition Wire Position On Distributor Cap:
-
Pull out high tension cords from
distributor cap while gripping each cap.
-
Reverse procedure for installation.
