Removal and Installation


REMOVAL
- Disconnect negative battery cable.
- Disconnect distributor lead coupler.
- Remove distributor cap screws and cap.
- Remove distributor flange bolts.
- Pull out distributor housing assembly.

INSTALLATION
- Before installing distributor, check to make sure that its O-ring is in good condition.

Installing Distributor:





- If new 0-ring is installed, apply oil.
- Install distributor without cap to camshaft.

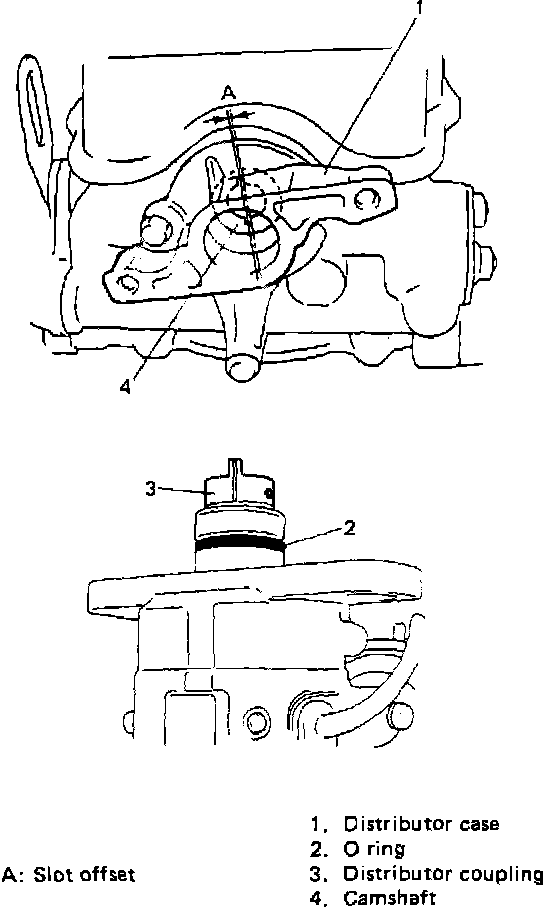

- Fit the dogs of distributor coupling into the slots of camshaft, when installing. The dogs of distributor coupling are offset. Therefore, if the dogs can not be fitted into the slots, turn the distributor shaft by 180 degree and try again.
- Connect electrical connector.
- Install distributor cap.
