Strut Tower Bar - Amended Bolts and Nuts Torque Specs

TSB No.: 1-12 07117
Section Title: Body and Frame

Division: Automotive
Category: Technical

SUBJECT:
AMENDMENTS OF TIGHTENING TORQUE OF STRUT TOWER BAR BOLTS AND NUTS

MODEL:
SPORT

YEAR:
1996 AND LATER

CONDITION:

Correction of tightening torque for strut tower bar bolts and nuts.

CAUSE:

N/A.

CORRECTION:





Please revise the appropriate service manual with the corrections that are listed in this bulletin.

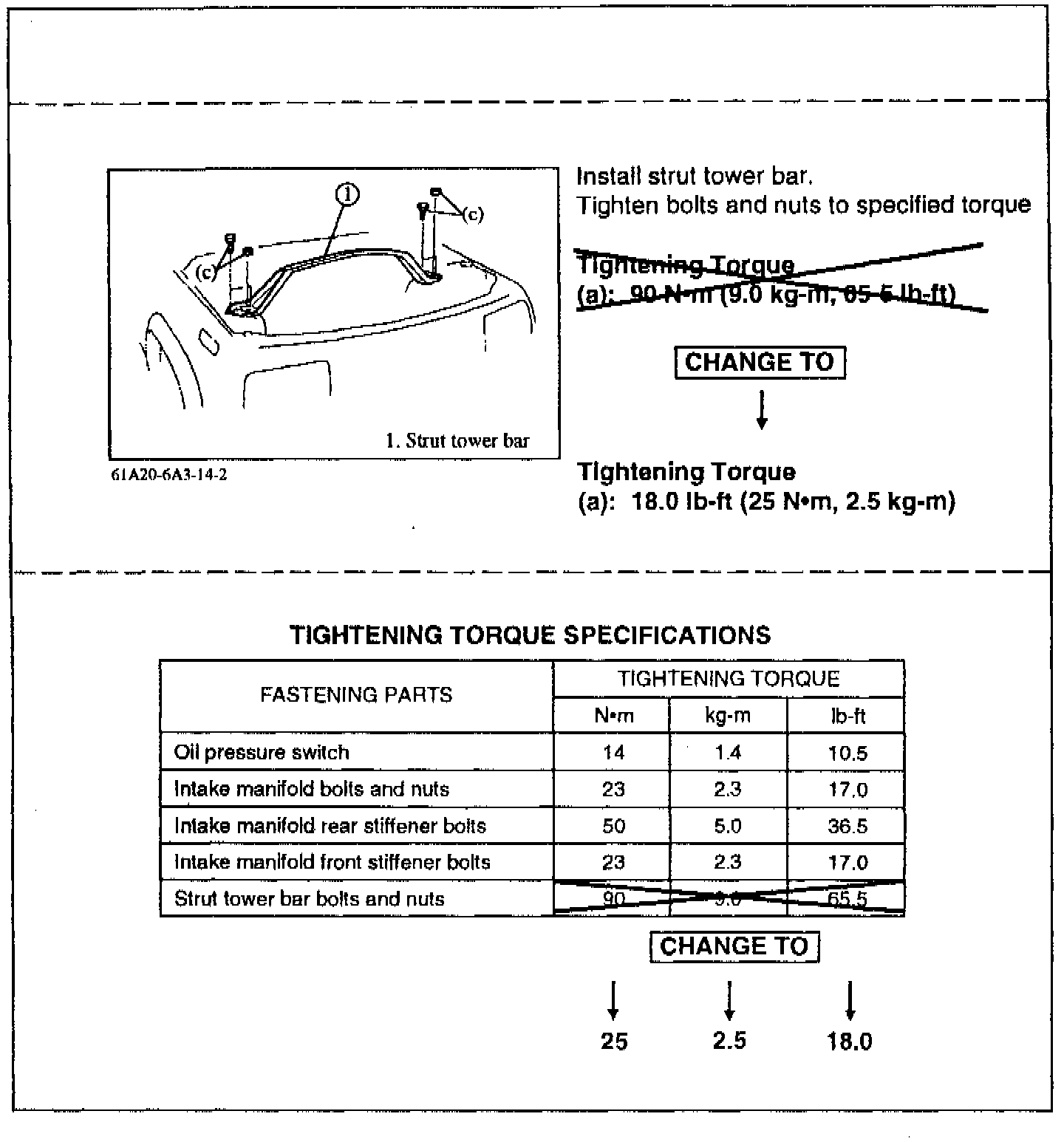

This bulletin is to inform you of the amendment in the 1996 Sidekick Supplementary Service Manual 1800 (p/n 99501-61A20-33E) for the tightening torque of the strut tower bar bolts and nuts. Please make the necessary changes in your service manual as listed in this bulletin.

RELATED SERVICE MANUAL AND LOCATION DATA:

1996 Sidekick Supplementary Service Manual 1800 (p/n 99501-61 A20-33E) Pages 6A3-14, 17, and 91
