Anti-Lock Brake System

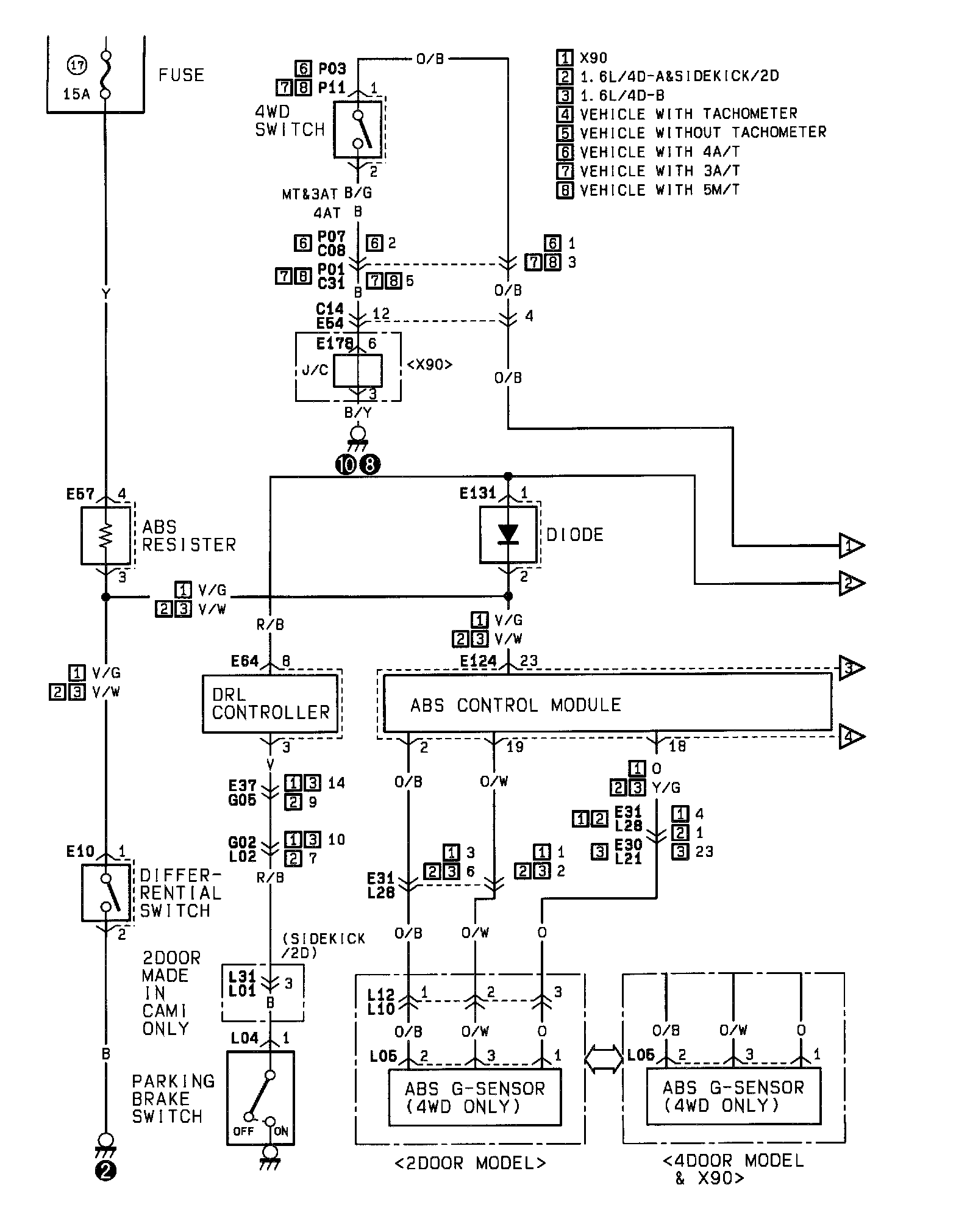

Anti-Lock Brake System (Part 1 of 4)
ABS G-Sensor
ABS Resister
ABS Control Module
Diode
DRL Controller
Differential Switch
Fuse
Parking Brake Switch
4WD Switch

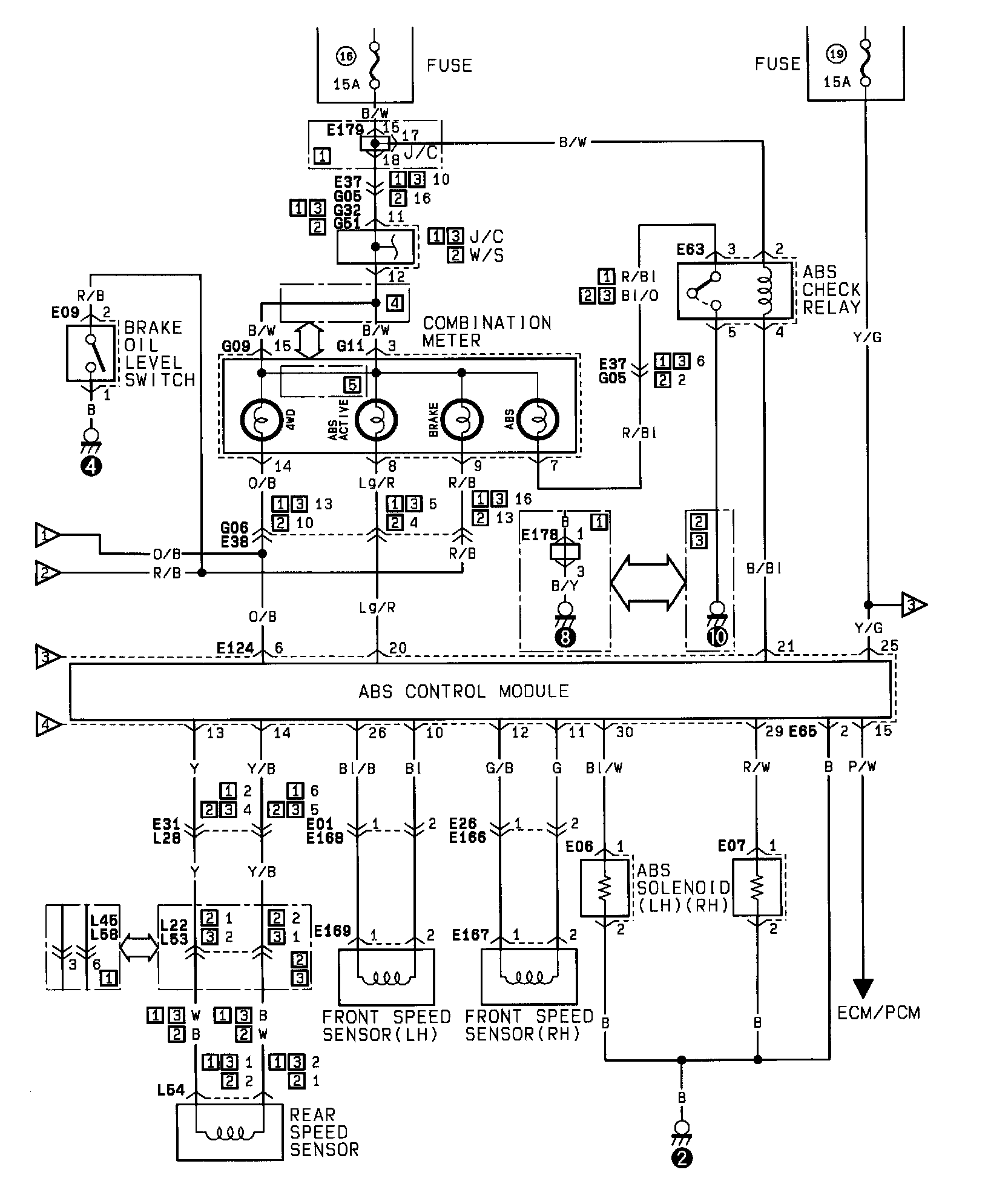

Anti-Lock Brake System (Part 2 of 4)
ABS Check Relay
ABS Solenoid (LH)
ABS Solenoid (RH)
ABS Control Module
Brake Oil Level Switch
Combination Meter
ECM/PCM
Fuse
Front Speed Sensor (LH)
Front Speed Sensor (RH)
J/C
Rear Speed Sensor

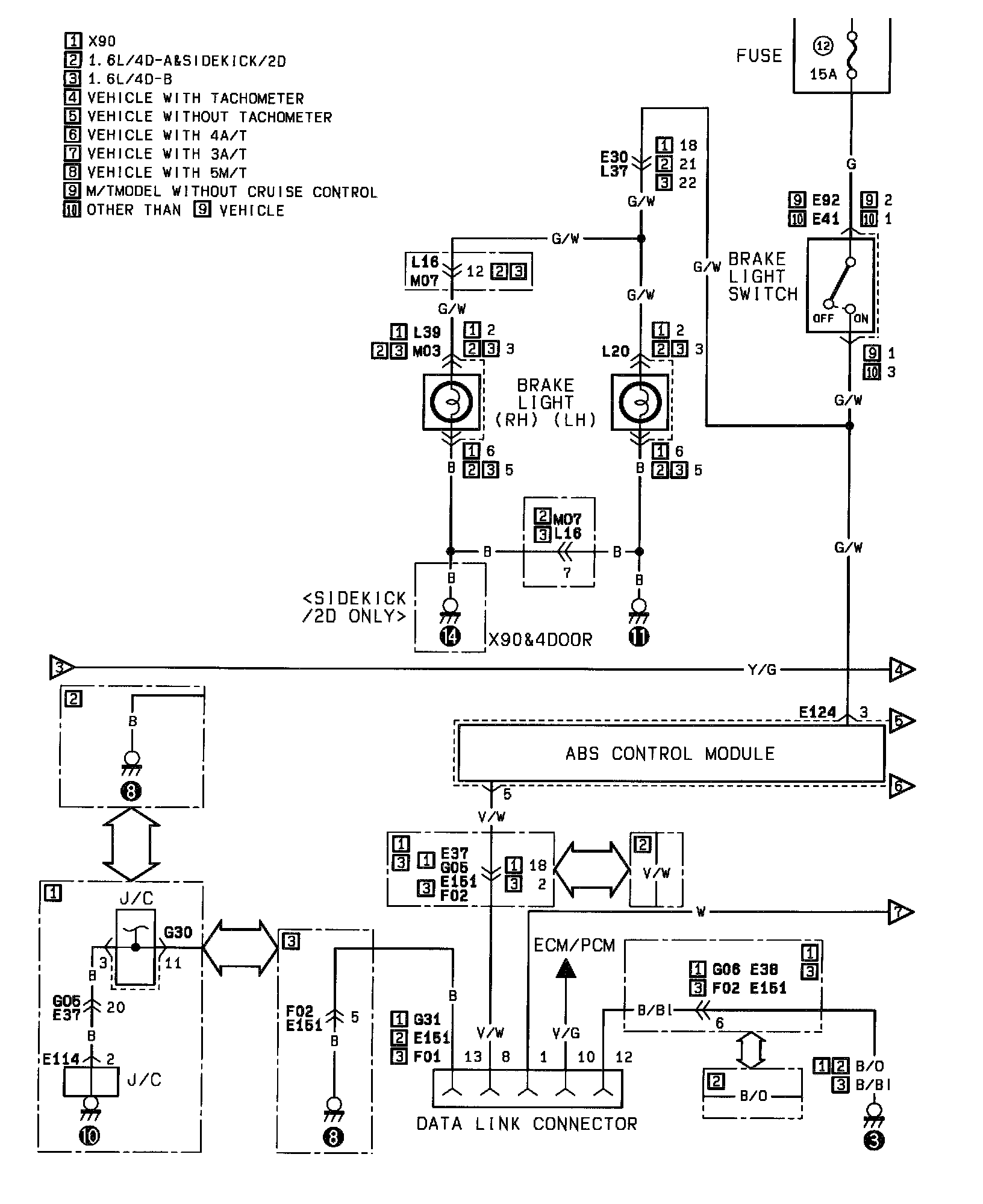

Anti-Lock Brake System (Part 3 of 4)
ABS Control Module
Brake Light LH
Brake Light RH
Brake Light Switch
Data Link Connector
ECM/PCM
Fuse
J/C

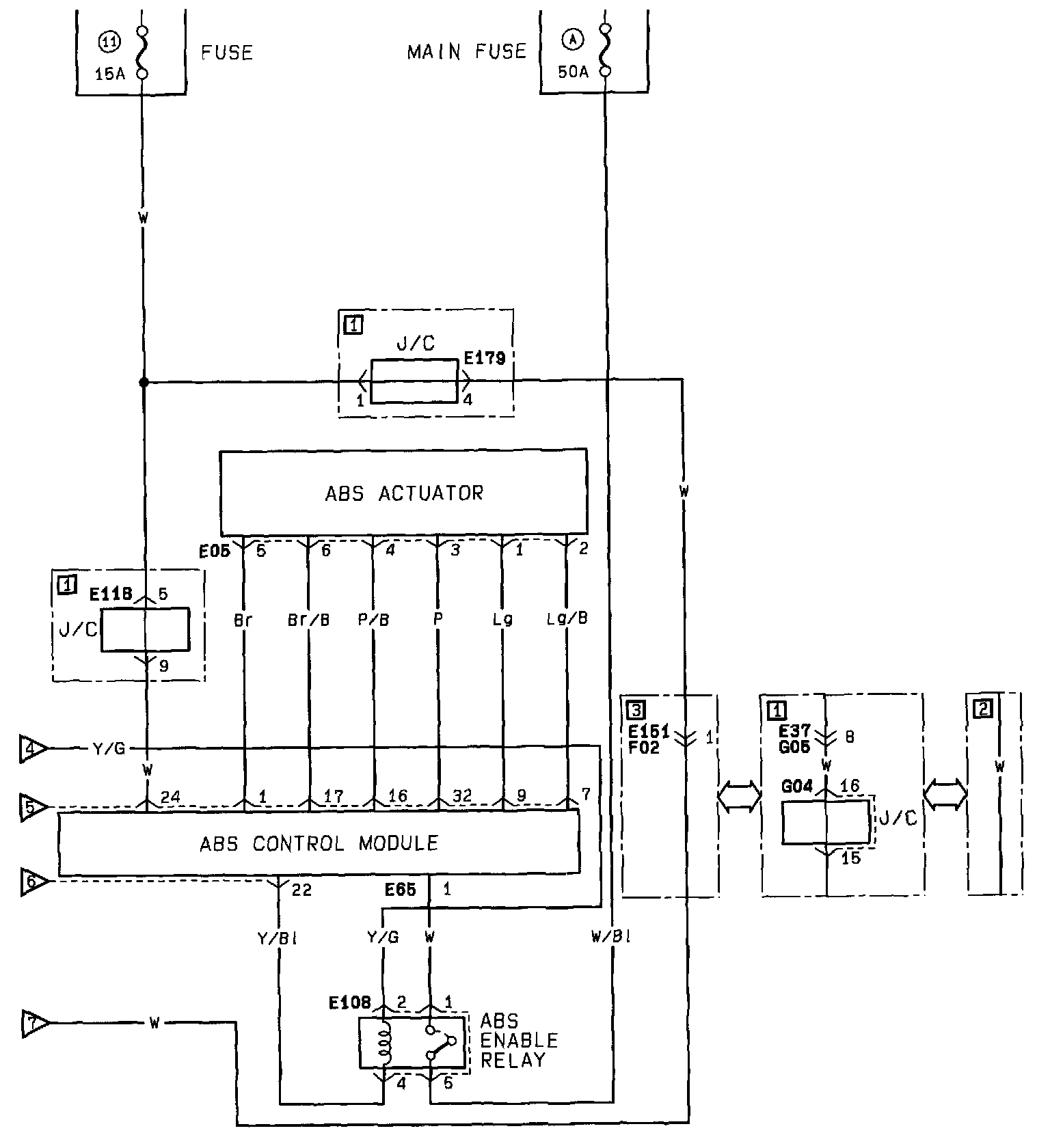

Anti-Lock Brake System (Part 4 of 4)
ABS Actuator
ABS Control Module
ABS Enable Relay
Fuse
J/C
Main Fuse
