Blower Motor: Service and Repair

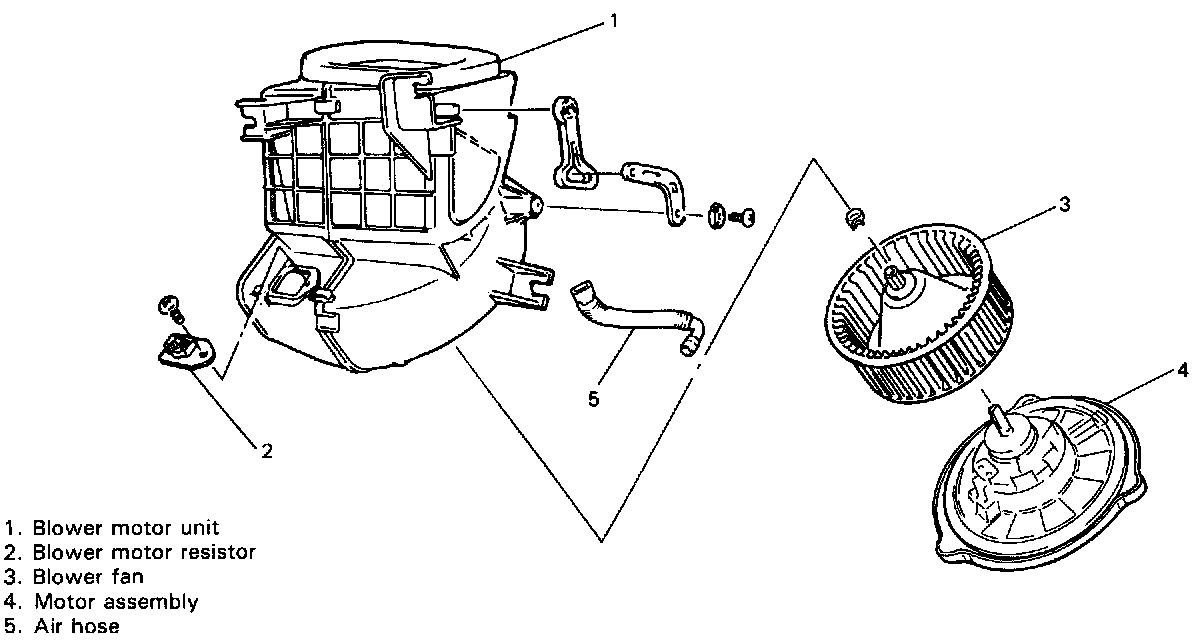

Blower Motor UnitREMOVAL 1)
Disconnect negative (-) cable at battery.
2)
Disable air bag system.
3)
Remove glove box and ECM.
4)
Disconnect
blower motor and resistor lead wires at couplers.
5)
Disconnect fresh air control cable from motor unit.
6)
Remove
blower motor unit.
7)
Remove
blower motor.
INSTALLATION 1)
Reverse removal procedure for installation.
2)
Enable air bag system.
