Related Diagnostic Procedures

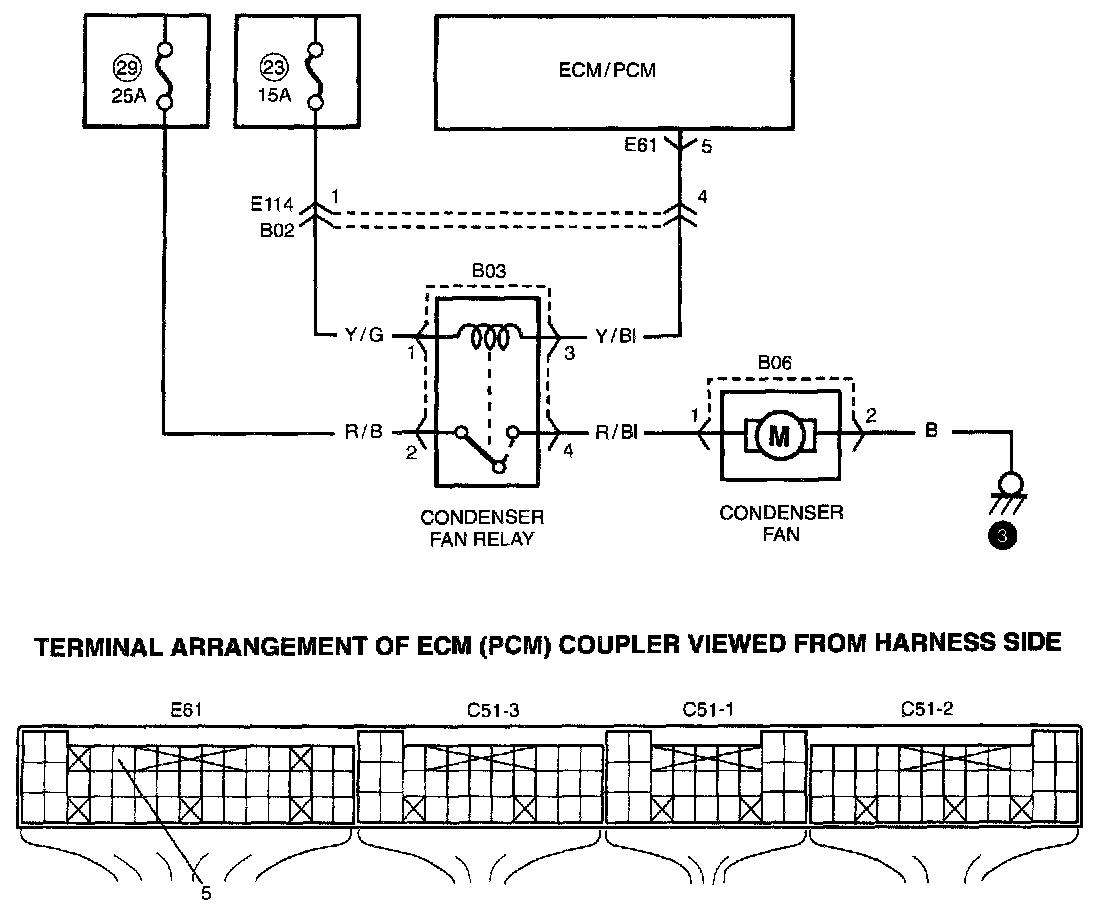

TABLE B-5 A/C CONDENSER FAN MOTOR RELAY CONTROL SYSTEM CHECK (IF EQUIPPED)CIRCUIT DIAGRAMCIRCUIT DESCRIPTIONA/C condenser fan is turned
ON by ECM (PCM) when engine coolant temperature is higher than specified value regardless A/C
ON or
OFF.

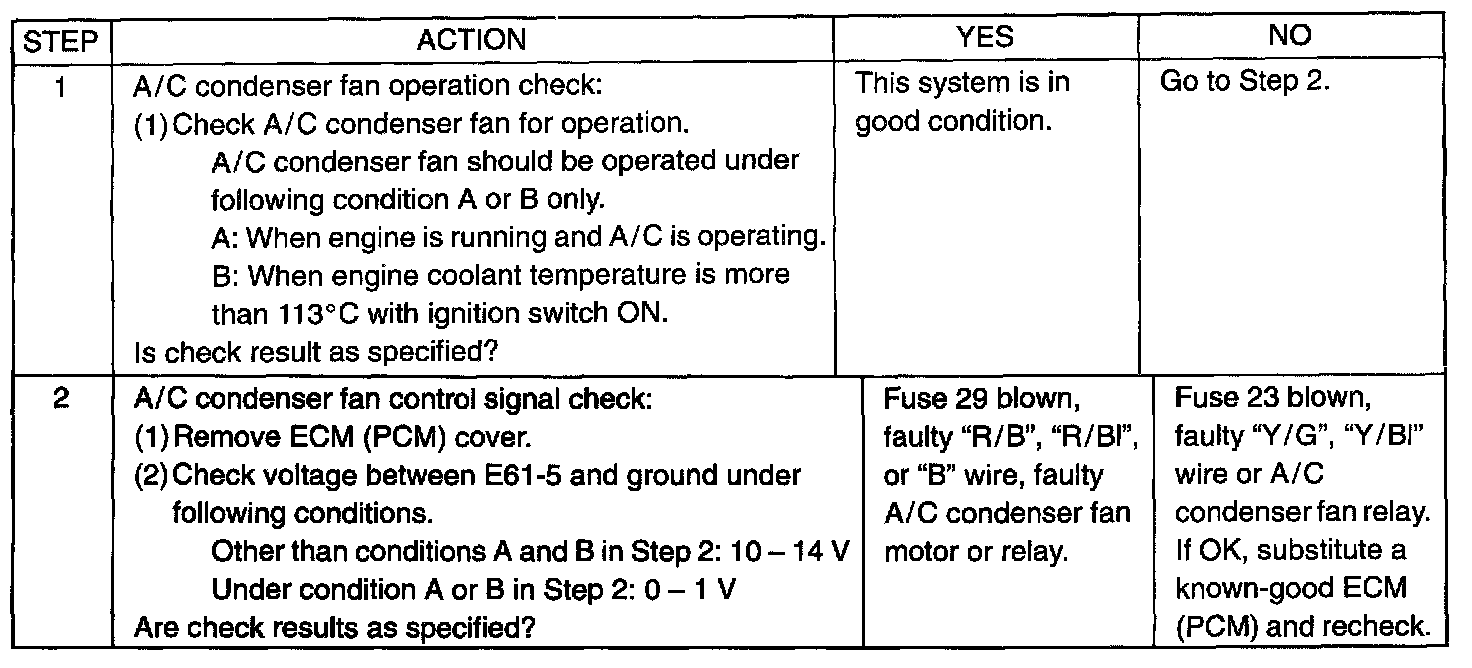

INSPECTION
