Control Lever Assembly

Control Lever Assembly

REMOVAL
1. Disconnect negative (-) cable at battery.
2. If equipped with air bag system, disable air bag system.
3. Remove mode control switch, see step 3.to 6.of item MODE CONTROL SWITCH REMOVAL.
4. Remove glove box.




5. Disconnect control cables from blower motor unit and heater unit.




6. Disconnect heater blower motor switch connector.

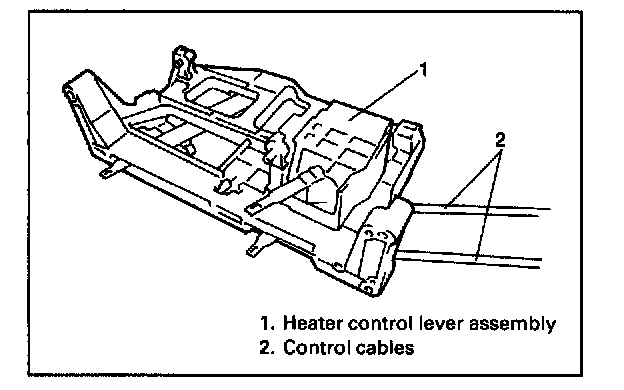

7. Remove heater control lever assembly.

INSTALLATION
1. Install in reverse order of removal procedure.
2. If equipped with air bag, enable air bag system.
